What we know about the measurement:

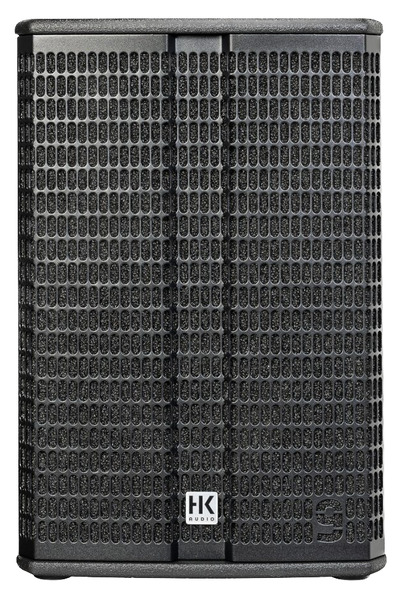

HK Audio LINEAR 9 110 XA is an active liveportable that cost around 1500 USD each.

  • Quality of the measurement data is high.
  • Origin of the data is HK Audio.
  • Format of the data is a GLL file .
  • -3dB (resp. -6db) point v.s. reference is at 82.5Hz (resp. 75.0Hz).
  • Reference level is normalised to 0.2dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 2.8dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-40.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 3.21 and would be 6.29 with a perfect subwoofer.
      • Details: NBD: ON 0.384, LW 0.458, SP 0.572, PIR 0.516; SM: SP0.745, PIR0.478; LFQ 1.709, LFX 75Hz
    • Tonality (Preference) Score is 4.78 with an EQ and would be 7.85 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.32, LW 0.31, SP 0.443, PIR 0.357; SM: SP0.939, PIR0.879; LFQ 1.709, LFX 75Hz
  • Vendor specifications:
    • Dispersion: 80° horizontal and 60° vertical.
    • SPL
      • continuous: 126 dB
      • peak: 129 dB
    • Size
      • Width 360mm
      • Height 540mm
      • Depth 310 mm)
    • Weight 16.5 kg
HK Audio LINEAR 9 110 XA
AutomaticEQ (IIR)
Set preamp gain to: -1.7dB.
Type Freq Q Gain
3 121.0 1.3 -1.9
3 309.0 2.11 -0.98
3 366.0 0.26 1.28
3 933.0 2.91 -1.88
3 2082.0 1.4 1.73
3 3438.0 2.37 -1.91
3 4803.0 2.6 2.75
3 8199.0 0.75 -2.94
4 13092.0 30.0 -0.43
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

HK Audio LINEAR 9 110 XA filters_auto_eq

AutomaticEQ

HK Audio LINEAR 9 110 XA filters_eq_full

Target v.s. EQ

HK Audio LINEAR 9 110 XA
Graphic EQ 15 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
3 25.0 2.14 0.5
3 40.0 2.14 0.5
3 63.0 2.14 0.5
3 100.0 2.14 -0.25
3 160.0 2.14 0.0
3 250.0 2.14 0.0
3 400.0 2.14 0.25
3 630.0 2.14 0.25
3 1000.0 2.14 0.0
3 1600.0 2.14 0.25
3 2500.0 2.14 0.25
3 4000.0 2.14 0.0
3 6300.0 2.14 -0.25
3 10000.0 2.14 -0.5
3 16000.0 2.14 0.0
Download

These EQ is designed for a 15 bands graphical EQ.

HK Audio LINEAR 9 110 XA
Graphic EQ 31 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.5
3 31.0 4.32 0.5
3 40.0 4.32 0.5
3 50.0 4.32 0.5
3 63.0 4.32 0.5
3 80.0 4.32 0.25
3 100.0 4.32 -0.25
3 125.0 4.32 -0.25
3 160.0 4.32 0.0
3 200.0 4.32 0.0
3 250.0 4.32 0.0
3 315.0 4.32 0.0
3 400.0 4.32 0.25
3 500.0 4.32 0.25
3 630.0 4.32 0.25
3 800.0 4.32 0.0
3 1000.0 4.32 0.0
3 1250.0 4.32 0.0
3 1600.0 4.32 0.25
3 2000.0 4.32 0.5
3 2500.0 4.32 0.25
3 3150.0 4.32 0.0
3 4000.0 4.32 0.0
3 5000.0 4.32 0.25
3 6300.0 4.32 -0.25
3 8000.0 4.32 -0.5
3 10000.0 4.32 -0.5
3 12000.0 4.32 -0.5
3 16000.0 4.32 0.0
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

HK Audio LINEAR 9 110 XA: comparison between EQs
HK Audio LINEAR 9 110 XA

Comparison betweens various EQs

HK Audio LINEAR 9 110 XA

Improvements made by EQ
