What we know about the measurement:

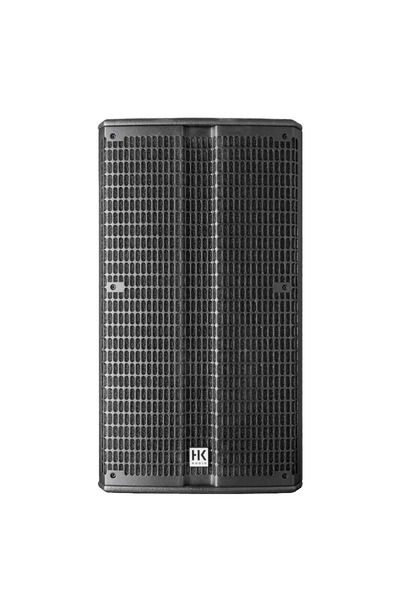

HK Audio LINEAR 5 112 F is a passive liveportable that cost around 605 USD each.

  • Quality of the measurement data is high.
  • Origin of the data is HK Audio.
  • Format of the data is a GLL file .
  • Sensitivity:
    • Sensitivity: 102.4dB (avg. 100Hz-1kHz for 2.83V estimated at 1m).
    • Sensitivity: 82.4dB computed at the measurement distance (10.0m) over the same frequency range.
  • -3dB (resp. -6db) point v.s. reference is at 82.5Hz (resp. 71.0Hz).
  • Reference level is normalised to 0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 3.0dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-40.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 1.08 and would be 4.16 with a perfect subwoofer.
      • Details: NBD: ON 0.898, LW 0.806, SP 0.773, PIR 0.774; SM: SP0.723, PIR0.446; LFQ 1.817, LFX 75Hz
    • Tonality (Preference) Score is 3.86 with an EQ and would be 6.72 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.559, LW 0.496, SP 0.648, PIR 0.548; SM: SP0.927, PIR0.893; LFQ 1.813, LFX 67Hz
  • Link to original Review: sos review. .
  • Vendor specifications:
    • Dispersion: 60° horizontal and 55° vertical.
    • Sensitivity 103 dB
    • Impedance 8 Ohm
    • SPL
      • continuous: 129 dB
      • peak: 135 dB
    • Size
      • Width 365mm
      • Height 668mm
      • Depth 370 mm)
    • Weight 23.9 kg
HK Audio LINEAR 5 112 F
AutomaticEQ (IIR)
Set preamp gain to: -3.0dB.
Type Freq Q Gain
5 82.0 0.58 2.99
3 331.0 1.72 2.38
3 584.0 2.99 -1.92
3 790.0 2.38 2.99
3 2226.0 2.85 -2.48
3 3008.0 2.74 2.45
3 4645.0 2.99 -3.0
3 7930.0 2.89 -2.92
3 12246.0 1.24 -2.85
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

HK Audio LINEAR 5 112 F filters_auto_eq

AutomaticEQ

HK Audio LINEAR 5 112 F filters_eq_full

Target v.s. EQ

HK Audio LINEAR 5 112 F
Graphic EQ 15 bands
Set preamp gain to: -1.0dB.
Type Freq Q Gain
3 25.0 2.14 0.75
3 40.0 2.14 0.75
3 63.0 2.14 0.75
3 100.0 2.14 0.0
3 160.0 2.14 -0.25
3 250.0 2.14 0.25
3 400.0 2.14 0.5
3 630.0 2.14 0.0
3 1000.0 2.14 0.25
3 1600.0 2.14 0.0
3 2500.0 2.14 0.0
3 4000.0 2.14 -0.25
3 6300.0 2.14 -0.25
3 10000.0 2.14 -0.5
3 16000.0 2.14 0.25
Download

These EQ is designed for a 15 bands graphical EQ.

HK Audio LINEAR 5 112 F
Graphic EQ 31 bands
Set preamp gain to: -0.8dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.5
3 31.0 4.32 0.5
3 40.0 4.32 0.5
3 50.0 4.32 0.5
3 63.0 4.32 0.5
3 80.0 4.32 0.5
3 100.0 4.32 0.0
3 125.0 4.32 0.0
3 160.0 4.32 -0.5
3 200.0 4.32 0.25
3 250.0 4.32 0.25
3 315.0 4.32 0.25
3 400.0 4.32 0.25
3 500.0 4.32 0.0
3 630.0 4.32 -0.25
3 800.0 4.32 0.5
3 1000.0 4.32 0.0
3 1250.0 4.32 0.25
3 1600.0 4.32 0.0
3 2000.0 4.32 -0.25
3 2500.0 4.32 -0.25
3 3150.0 4.32 0.25
3 4000.0 4.32 -0.25
3 5000.0 4.32 -0.5
3 6300.0 4.32 -0.25
3 8000.0 4.32 -0.75
3 10000.0 4.32 0.0
3 12000.0 4.32 -0.5
3 16000.0 4.32 0.25
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

HK Audio LINEAR 5 112 F: comparison between EQs
HK Audio LINEAR 5 112 F

Comparison betweens various EQs
