What we know about the measurement:

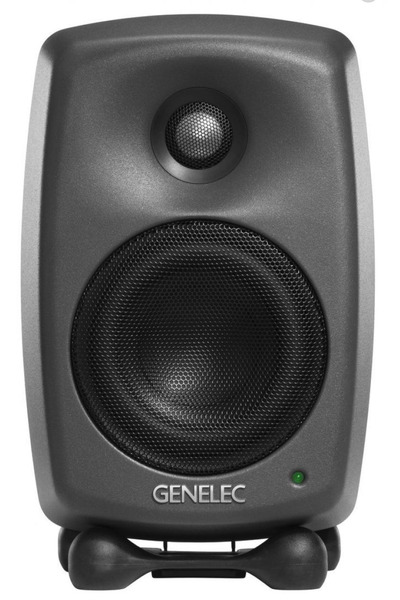

Genelec 8320A is an active bookshelves that cost around 1250 USD for a pair.

  • Quality of the measurement data is high.
  • Origin of the data is ASR.
  • Format of the data is generated by a Klippel NFS .
  • -3dB (resp. -6db) point v.s. reference is at 67.4Hz (resp. 58.6Hz).
  • Reference level is normalised to -0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 1.6dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-60.0°, 60.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-30.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 5.61 and would be 8.12 with a perfect subwoofer.
      • Details: NBD: ON 0.325, LW 0.29, SP 0.305, PIR 0.248; SM: SP0.913, PIR0.861; LFQ 0.227, LFX 55Hz
    • Tonality (Preference) Score is 6.09 with an EQ and would be 8.45 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.327, LW 0.275, SP 0.269, PIR 0.214; SM: SP0.969, PIR0.961; LFQ 0.227, LFX 51Hz
  • Link to Original review.
  • Vendor specifications:
    • SPL
      • peak: 100 dB
    • Size
      • Width 151mm
      • Height 242mm
      • Depth 142 mm)
    • Weight 3.2 kg
Genelec 8320A
AutomaticEQ (IIR)
Set preamp gain to: -4.0dB.
Type Freq Q Gain
5 67.0 0.42 2.82
3 67.0 1.37 2.63
3 78.0 1.96 -2.29
3 432.0 1.59 -0.64
3 511.0 2.03 -0.61
3 2014.0 1.02 0.17
3 3325.0 2.58 1.58
3 4645.0 2.64 -0.84
5 9372.0 0.72 0.77
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Genelec 8320A filters_auto_eq

AutomaticEQ

Genelec 8320A filters_eq_full

Target v.s. EQ

Genelec 8320A
Graphic EQ 15 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
3 25.0 2.14 0.5
3 40.0 2.14 0.5
3 63.0 2.14 0.5
3 100.0 2.14 0.0
3 160.0 2.14 0.0
3 250.0 2.14 -0.25
3 400.0 2.14 -0.25
3 630.0 2.14 -0.25
3 1000.0 2.14 0.0
3 1600.0 2.14 0.0
3 2500.0 2.14 0.0
3 4000.0 2.14 0.0
3 6300.0 2.14 0.0
3 10000.0 2.14 -0.25
3 16000.0 2.14 -0.5
Download

These EQ is designed for a 15 bands graphical EQ.

Genelec 8320A
Graphic EQ 31 bands
Set preamp gain to: -0.8dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.5
3 31.0 4.32 0.5
3 40.0 4.32 0.5
3 50.0 4.32 0.5
3 63.0 4.32 0.5
3 80.0 4.32 0.25
3 100.0 4.32 0.25
3 125.0 4.32 0.0
3 160.0 4.32 0.0
3 200.0 4.32 0.0
3 250.0 4.32 0.0
3 315.0 4.32 0.0
3 400.0 4.32 -0.25
3 500.0 4.32 -0.25
3 630.0 4.32 0.0
3 800.0 4.32 0.0
3 1000.0 4.32 0.0
3 1250.0 4.32 0.25
3 1600.0 4.32 0.25
3 2000.0 4.32 0.25
3 2500.0 4.32 0.25
3 3150.0 4.32 0.5
3 4000.0 4.32 0.25
3 5000.0 4.32 0.0
3 6300.0 4.32 0.25
3 8000.0 4.32 0.25
3 10000.0 4.32 0.25
3 12000.0 4.32 0.0
3 16000.0 4.32 0.0
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

Genelec 8320A: comparison between EQs
Genelec 8320A

Comparison betweens various EQs

Genelec 8320A

Improvements made by EQ
