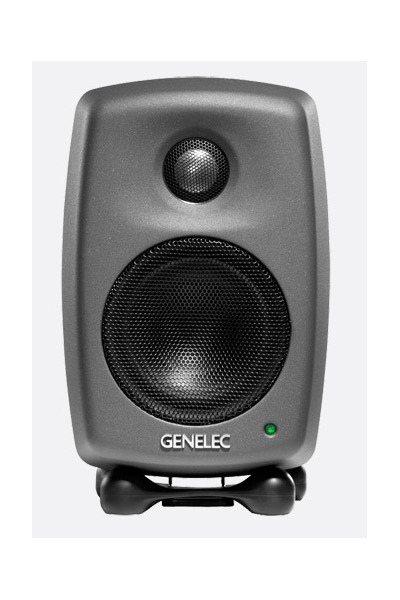

What we know about the measurement:
- Quality of the measurement data is
high.
-
Origin of the data is ASR.
-
Format of the data is
generated by a Klippel NFS
.
-
-3dB (resp. -6db) point v.s. reference is at 77.6Hz (resp. 71.8Hz).
-
Reference level is normalised to 0.1dB
computed over the frequency range [300.0Hz,
5000.0Hz].
-
Frequency deviation is 2.5dB over the same frequency range.
- Directivity
-
Horizontal directivity
is (-70.0°, 60.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
-
Vertical directivity
is (-30.0°, 40.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
- Tonality (Preference) Score
- Tonality (Preference) Score is 5.08
and would be 7.99 with a
perfect subwoofer.
- Details:
NBD: ON 0.381,
LW 0.319, SP
0.336, PIR
0.299; SM:
SP0.958,
PIR0.931; LFQ
0.126, LFX 68Hz
- Tonality (Preference) Score is 5.52
with an EQ and would be 8.4 with a
perfect subwoofer and the same EQ.
- Details:
NBD: ON 0.319,
LW 0.271, SP
0.279, PIR
0.227; SM:
SP0.96,
PIR0.946; LFQ 0.16, LFX 67Hz
- Link to Original review.
|
AutomaticEQ (IIR)
|
|
Set preamp gain to: -2.6dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
62.0 |
2.91 |
2.92 |
| 3 |
149.0 |
0.92 |
-1.57 |
| 3 |
976.0 |
3.0 |
1.1 |
| 3 |
2324.0 |
2.91 |
-0.7 |
| 3 |
2765.0 |
2.66 |
1.1 |
| 3 |
7059.0 |
2.97 |
-2.17 |
| 3 |
7308.0 |
1.59 |
1.55 |
|
Download
|
These EQ optimise the Harman score and is a good start for far field listening like in your living room.
AutomaticEQ
Target v.s. EQ
|
flipflop@ASR (IIR)
|
|
Set preamp gain to: -2.3dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
823.0 |
4.997 |
-9.6 |
| 3 |
827.0 |
5.0 |
9.9 |
| 3 |
1010.0 |
5.0 |
2.9 |
| 3 |
1154.0 |
5.0 |
-2.7 |
| 3 |
1290.0 |
5.0 |
2.0 |
| 3 |
1644.0 |
4.382 |
-11.0 |
| 3 |
1668.0 |
5.0 |
12.0 |
| 3 |
1840.0 |
15.0 |
-1.0 |
| 3 |
2015.0 |
12.0 |
1.2 |
| 3 |
2218.0 |
12.0 |
-1.4 |
| 3 |
2400.0 |
15.0 |
1.3 |
| 3 |
2570.0 |
17.0 |
-0.8 |
| 3 |
2790.0 |
11.0 |
0.7 |
| 3 |
3630.0 |
20.0 |
-0.7 |
| 3 |
4620.0 |
20.0 |
-0.7 |
| 3 |
5418.0 |
5.0 |
1.5 |
| 3 |
7130.0 |
10.0 |
-0.6 |
| 3 |
8030.0 |
8.0 |
0.8 |
| 3 |
10900.0 |
5.0 |
0.7 |
| 3 |
13900.0 |
2.5 |
1.1 |
|
Download
|
These EQ is designed by ASR member flipflop.
|
Graphic EQ 15 bands
|
|
Set preamp gain to: -0.7dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
25.0 |
2.14 |
0.5 |
| 3 |
40.0 |
2.14 |
0.5 |
| 3 |
63.0 |
2.14 |
0.5 |
| 3 |
100.0 |
2.14 |
-0.25 |
| 3 |
160.0 |
2.14 |
-0.5 |
| 3 |
250.0 |
2.14 |
-0.25 |
| 3 |
400.0 |
2.14 |
-0.25 |
| 3 |
630.0 |
2.14 |
0.0 |
| 3 |
1000.0 |
2.14 |
0.25 |
| 3 |
1600.0 |
2.14 |
0.25 |
| 3 |
2500.0 |
2.14 |
0.5 |
| 3 |
4000.0 |
2.14 |
0.5 |
| 3 |
6300.0 |
2.14 |
0.25 |
| 3 |
10000.0 |
2.14 |
0.25 |
| 3 |
16000.0 |
2.14 |
0.25 |
|
Download
|
These EQ is designed for a 15 bands graphical EQ.
|
Graphic EQ 31 bands
|
|
Set preamp gain to: -0.4dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
20.0 |
4.32 |
0.0 |
| 3 |
25.0 |
4.32 |
0.25 |
| 3 |
31.0 |
4.32 |
0.25 |
| 3 |
40.0 |
4.32 |
0.25 |
| 3 |
50.0 |
4.32 |
0.25 |
| 3 |
63.0 |
4.32 |
0.25 |
| 3 |
80.0 |
4.32 |
0.25 |
| 3 |
100.0 |
4.32 |
-0.25 |
| 3 |
125.0 |
4.32 |
-0.25 |
| 3 |
160.0 |
4.32 |
-0.25 |
| 3 |
200.0 |
4.32 |
-0.25 |
| 3 |
250.0 |
4.32 |
-0.25 |
| 3 |
315.0 |
4.32 |
-0.25 |
| 3 |
400.0 |
4.32 |
-0.25 |
| 3 |
500.0 |
4.32 |
-0.25 |
| 3 |
630.0 |
4.32 |
0.0 |
| 3 |
800.0 |
4.32 |
0.0 |
| 3 |
1000.0 |
4.32 |
0.0 |
| 3 |
1250.0 |
4.32 |
0.0 |
| 3 |
1600.0 |
4.32 |
0.0 |
| 3 |
2000.0 |
4.32 |
0.0 |
| 3 |
2500.0 |
4.32 |
0.0 |
| 3 |
3150.0 |
4.32 |
0.0 |
| 3 |
4000.0 |
4.32 |
0.0 |
| 3 |
5000.0 |
4.32 |
0.0 |
| 3 |
6300.0 |
4.32 |
0.0 |
| 3 |
8000.0 |
4.32 |
0.0 |
| 3 |
10000.0 |
4.32 |
-0.25 |
| 3 |
12000.0 |
4.32 |
0.0 |
| 3 |
16000.0 |
4.32 |
0.0 |
| 3 |
20000.0 |
4.32 |
0.0 |
|
Download
|
These EQ is designed for a 31 bands graphical EQ.
Comparison betweens various EQs
Improvements made by EQ
|
