What we know about the measurement:

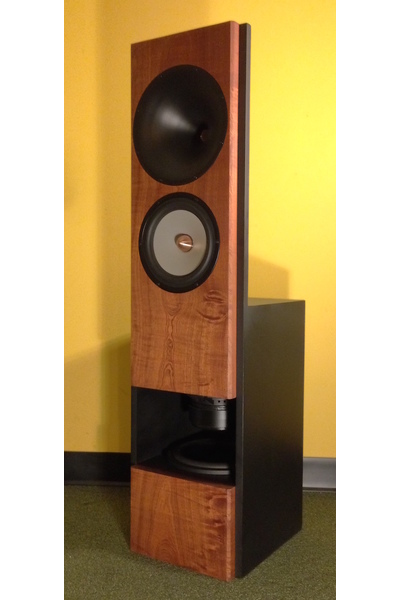

Gainphile R16 is a passive panel

  • Quality of the measurement data is low.
  • Origin of the data is Princeton.
  • Format of the data is .
  • Sensitivity: 85.5dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • Reference level is normalised to 0.5dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 3.5dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-40.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Note: The tonality (Preference) score does not make sense for panel speakers. Don't give too much credits to the value.
    • Tonality (Preference) Score is -3.72 and would be 2.94 with a perfect subwoofer.
      • Details: NBD: ON 1.157, LW 1.077, SP 0.864, PIR 0.923; SM: SP0.604, PIR0.388; LFQ 10.0, LFX 509Hz
    • Tonality (Preference) Score is -2.86 with an EQ and would be 3.8 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 1.063, LW 1.08, SP 0.89, PIR 0.933; SM: SP0.789, PIR0.672; LFQ 10.0, LFX 509Hz
  • Link to Original review.
Gainphile R16
AutomaticEQ (IIR)
Set preamp gain to: -4.8dB.
Type Freq Q Gain
3 44.0 0.4 2.49
3 85.0 0.3 2.6
3 439.0 2.53 -7.75
3 1161.0 0.99 0.07
3 4654.0 2.38 -5.39
3 8694.0 2.96 -5.43
3 13652.0 2.75 -5.6
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Gainphile R16 filters_auto_eq

AutomaticEQ

Gainphile R16 filters_eq_full

Target v.s. EQ

Gainphile R16
Graphic EQ 15 bands
Set preamp gain to: -0.8dB.
Type Freq Q Gain
3 25.0 2.14 0.0
3 40.0 2.14 0.0
3 63.0 2.14 0.0
3 100.0 2.14 0.0
3 160.0 2.14 0.0
3 250.0 2.14 0.0
3 400.0 2.14 0.0
3 630.0 2.14 0.25
3 1000.0 2.14 0.25
3 1600.0 2.14 0.5
3 2500.0 2.14 0.25
3 4000.0 2.14 0.25
3 6300.0 2.14 0.25
3 10000.0 2.14 0.25
3 16000.0 2.14 0.75
Download

These EQ is designed for a 15 bands graphical EQ.

Gainphile R16
Graphic EQ 31 bands
Set preamp gain to: -1.0dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.0
3 31.0 4.32 0.0
3 40.0 4.32 0.0
3 50.0 4.32 0.0
3 63.0 4.32 0.0
3 80.0 4.32 0.0
3 100.0 4.32 0.0
3 125.0 4.32 0.0
3 160.0 4.32 0.0
3 200.0 4.32 0.0
3 250.0 4.32 0.0
3 315.0 4.32 0.0
3 400.0 4.32 0.0
3 500.0 4.32 0.0
3 630.0 4.32 0.25
3 800.0 4.32 0.25
3 1000.0 4.32 0.25
3 1250.0 4.32 0.25
3 1600.0 4.32 0.5
3 2000.0 4.32 0.75
3 2500.0 4.32 0.25
3 3150.0 4.32 0.25
3 4000.0 4.32 0.25
3 5000.0 4.32 0.0
3 6300.0 4.32 0.25
3 8000.0 4.32 0.25
3 10000.0 4.32 0.25
3 12000.0 4.32 0.25
3 16000.0 4.32 0.75
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

Gainphile R16: comparison between EQs
Gainphile R16

Comparison betweens various EQs

Gainphile R16

Improvements made by EQ
