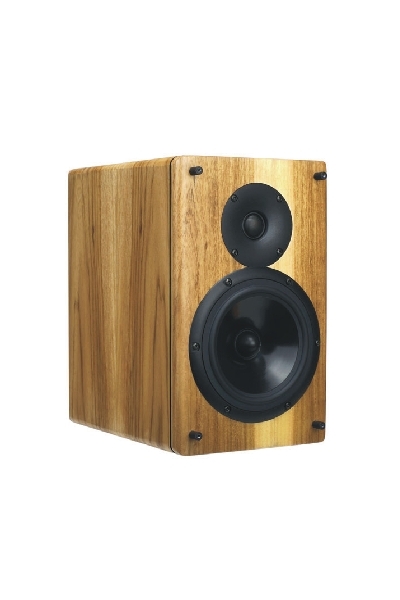

What we know about the measurement:
- Quality of the measurement data is
high.
-
Origin of the data is ASR.
-
Format of the data is
generated by a Klippel NFS
.
-
Sensitivity: 84.6dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
-
-3dB (resp. -6db) point v.s. reference is at 63.0Hz (resp. 54.2Hz).
-
Reference level is normalised to -0.1dB
computed over the frequency range [300.0Hz,
5000.0Hz].
-
Frequency deviation is 2.0dB over the same frequency range.
- Directivity
-
Horizontal directivity
is (-70.0°, 50.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
-
Vertical directivity
is (-20.0°, 30.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
- Tonality (Preference) Score
- Tonality (Preference) Score is 5.26
and would be 7.62 with a
perfect subwoofer.
- Details:
NBD: ON 0.399,
LW 0.263, SP
0.421, PIR
0.321; SM:
SP0.885,
PIR0.82; LFQ
0.577, LFX 51Hz
- Tonality (Preference) Score is 6.28
with an EQ and would be 8.23 with a
perfect subwoofer and the same EQ.
- Details:
NBD: ON 0.351,
LW 0.239, SP
0.365, PIR
0.258; SM:
SP0.941,
PIR0.945; LFQ 0.535, LFX 41Hz
- Link to Original review.
|
AutomaticEQ (IIR)
|
|
Set preamp gain to: -4.8dB.
|
| Type |
Freq |
Q |
Gain |
| LS |
63.0 |
1.08 |
2.93 |
| PK |
63.0 |
0.36 |
2.61 |
| PK |
63.0 |
1.28 |
1.39 |
| PK |
87.0 |
1.55 |
-2.97 |
| PK |
125.0 |
1.1 |
-2.94 |
| PK |
511.0 |
1.76 |
2.73 |
| PK |
604.0 |
2.95 |
-2.46 |
| PK |
2631.0 |
0.84 |
0.73 |
| PK |
4064.0 |
1.28 |
-1.22 |
|
Download
|
These EQ optimise the Harman score and is a good start for far field listening like in your living room.
AutomaticEQ
Target v.s. EQ
|
flipflop@ASR (IIR)
|
|
Set preamp gain to: -1.6dB.
|
| Type |
Freq |
Q |
Gain |
| PK |
355.0 |
11.0 |
0.6 |
| PK |
408.0 |
15.0 |
1.0 |
| PK |
439.0 |
16.0 |
0.7 |
| PK |
492.0 |
5.9 |
1.6 |
| PK |
537.0 |
25.0 |
0.7 |
| PK |
608.0 |
6.5 |
-1.1 |
| PK |
786.0 |
20.0 |
-0.7 |
| PK |
1046.0 |
8.0 |
0.9 |
| PK |
1150.0 |
7.0 |
-1.1 |
| PK |
1420.0 |
13.0 |
0.9 |
| PK |
1667.0 |
12.0 |
1.1 |
| PK |
2002.0 |
15.0 |
-0.5 |
| PK |
2225.0 |
25.0 |
-0.5 |
| PK |
2430.0 |
15.0 |
-0.8 |
| PK |
2720.0 |
20.0 |
-0.6 |
| PK |
3599.0 |
1.188 |
-1.5 |
| PK |
4030.0 |
7.0 |
-0.5 |
| PK |
7400.0 |
2.952 |
-1.7 |
| PK |
10850.0 |
7.0 |
0.5 |
| PK |
14171.0 |
3.0 |
-1.3 |
|
Download
|
These EQ is designed by ASR member flipflop.
|
Graphic EQ 15 bands
|
|
Set preamp gain to: -0.7dB.
|
| Type |
Freq |
Q |
Gain |
| PK |
25.0 |
2.14 |
0.5 |
| PK |
40.0 |
2.14 |
0.5 |
| PK |
63.0 |
2.14 |
0.5 |
| PK |
100.0 |
2.14 |
-0.25 |
| PK |
160.0 |
2.14 |
-0.25 |
| PK |
250.0 |
2.14 |
0.0 |
| PK |
400.0 |
2.14 |
0.25 |
| PK |
630.0 |
2.14 |
0.0 |
| PK |
1000.0 |
2.14 |
0.25 |
| PK |
1600.0 |
2.14 |
0.25 |
| PK |
2500.0 |
2.14 |
0.0 |
| PK |
4000.0 |
2.14 |
-0.25 |
| PK |
6300.0 |
2.14 |
0.0 |
| PK |
10000.0 |
2.14 |
0.25 |
| PK |
16000.0 |
2.14 |
0.25 |
|
Download
|
These EQ is designed for a 15 bands graphical EQ.
|
Graphic EQ 31 bands
|
|
Set preamp gain to: -0.7dB.
|
| Type |
Freq |
Q |
Gain |
| PK |
20.0 |
4.32 |
0.0 |
| PK |
25.0 |
4.32 |
0.5 |
| PK |
31.0 |
4.32 |
0.5 |
| PK |
40.0 |
4.32 |
0.5 |
| PK |
50.0 |
4.32 |
0.5 |
| PK |
63.0 |
4.32 |
0.5 |
| PK |
80.0 |
4.32 |
0.0 |
| PK |
100.0 |
4.32 |
-0.25 |
| PK |
125.0 |
4.32 |
-0.5 |
| PK |
160.0 |
4.32 |
-0.25 |
| PK |
200.0 |
4.32 |
0.0 |
| PK |
250.0 |
4.32 |
0.0 |
| PK |
315.0 |
4.32 |
0.0 |
| PK |
400.0 |
4.32 |
0.25 |
| PK |
500.0 |
4.32 |
0.25 |
| PK |
630.0 |
4.32 |
0.0 |
| PK |
800.0 |
4.32 |
0.0 |
| PK |
1000.0 |
4.32 |
0.25 |
| PK |
1250.0 |
4.32 |
0.0 |
| PK |
1600.0 |
4.32 |
0.25 |
| PK |
2000.0 |
4.32 |
0.25 |
| PK |
2500.0 |
4.32 |
0.0 |
| PK |
3150.0 |
4.32 |
0.0 |
| PK |
4000.0 |
4.32 |
-0.25 |
| PK |
5000.0 |
4.32 |
0.0 |
| PK |
6300.0 |
4.32 |
0.0 |
| PK |
8000.0 |
4.32 |
0.0 |
| PK |
10000.0 |
4.32 |
0.25 |
| PK |
12000.0 |
4.32 |
0.25 |
| PK |
16000.0 |
4.32 |
0.25 |
| PK |
20000.0 |
4.32 |
0.0 |
|
Download
|
These EQ is designed for a 31 bands graphical EQ.
Comparison betweens various EQs
Improvements made by EQ
|
