What we know about the measurement:

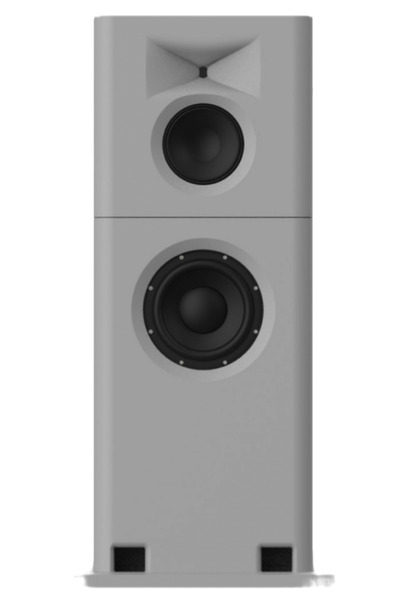

GGNTKT M3 is an active floorstanders that cost around 22500 USD for a pair.

  • Quality of the measurement data is medium.
  • Origin of the data is GGNTKT.
  • Format of the data is a scanned image .
  • -3dB (resp. -6db) point v.s. reference is at 35.5Hz (resp. 31.8Hz).
  • Reference level is normalised to 0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 0.5dB over the same frequency range.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 6.03 and would be 8.01 with a perfect subwoofer.
      • Details: NBD: ON 0.159, LW 0.185, SP 0.3, PIR 0.22; SM: SP0.735, PIR0.595; LFQ 4.525, LFX 41Hz
    • Tonality (Preference) Score is 7.08 with an EQ and would be 8.76 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.169, LW 0.167, SP 0.278, PIR 0.189; SM: SP0.892, PIR0.891; LFQ 4.525, LFX 35Hz
  • Link to original Review: asr review. .
  • Vendor specifications:
    • Dispersion: 140° horizontal and 100° vertical.
    • Size
      • Width 499mm
      • Height 1286mm
      • Depth 199 mm)
GGNTKT M3
AutomaticEQ (IIR)
Set preamp gain to: -2.7dB.
Type Freq Q Gain
3 34.0 2.9 2.99
3 46.0 2.94 -1.2
3 310.0 2.86 -0.54
3 522.0 1.76 -0.24
3 3177.0 2.51 -1.43
3 7566.0 0.86 -1.35
3 11882.0 2.46 -0.69
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

GGNTKT M3 filters_auto_eq

AutomaticEQ

GGNTKT M3 filters_eq_full

Target v.s. EQ
CEA2034
On Axis
Estimated In-Room Response
CEA2034
On Axis
Estimated In-Room Response
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
;
