What we know about the measurement:

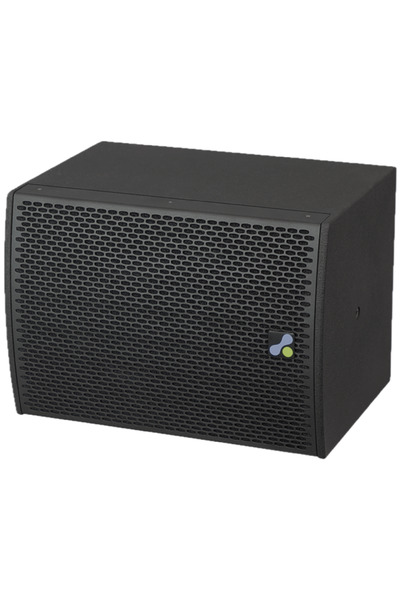

Fulcrum Acoustic RX8 is an active liveportable

  • Quality of the measurement data is medium.
  • Origin of the data is Fulcrum Acoustic.
  • Format of the data is a GLL file .
  • Warning: this measurement was already process with an equalizer.
  • -3dB (resp. -6db) point v.s. reference is at 109.0Hz (resp. 92.5Hz).
  • Reference level is normalised to -0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 2.3dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-30.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-30.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 2.82 and would be 6.23 with a perfect subwoofer.
      • Details: NBD: ON 0.505, LW 0.475, SP 0.725, PIR 0.573; SM: SP0.78, PIR0.658; LFQ 1.042, LFX 89Hz
  • Vendor specifications:
    • Dispersion: 90° horizontal and 75° vertical.
    • Sensitivity 93 dB
    • SPL
      • continuous: 116 dB
      • peak: 122 dB
    • Size
      • Width 323mm
      • Height 229mm
      • Depth 235 mm)
    • Weight 6.4 kg
CEA2034
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
;
