What we know about the measurement:

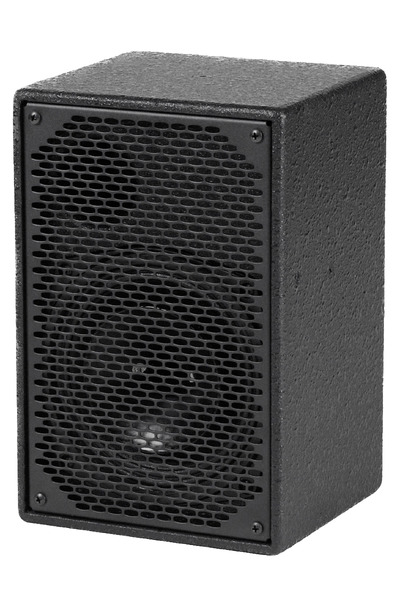

Fulcrum Acoustic RX699 is a passive liveportable

  • Quality of the measurement data is medium.
  • Origin of the data is Fulcrum Acoustic.
  • Format of the data is a GLL file .
  • Sensitivity:
    • Sensitivity: 96.7dB (avg. 100Hz-1kHz for 2.83V estimated at 1m).
    • Sensitivity: 76.7dB computed at the measurement distance (10.0m) over the same frequency range.
  • -3dB (resp. -6db) point v.s. reference is at 109.0Hz (resp. 100.0Hz).
  • Reference level is normalised to -0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 1.4dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-40.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-40.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 3.24 and would be 6.8 with a perfect subwoofer.
      • Details: NBD: ON 0.443, LW 0.406, SP 0.519, PIR 0.451; SM: SP0.826, PIR0.68; LFQ 1.206, LFX 97Hz
    • Tonality (Preference) Score is 3.86 with an EQ and would be 7.38 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.447, LW 0.375, SP 0.446, PIR 0.389; SM: SP0.93, PIR0.854; LFQ 1.026, LFX 95Hz
  • Vendor specifications:
    • Dispersion: 90° horizontal and 90° vertical.
    • Sensitivity 89 dB
    • Impedance 16 Ohm
    • SPL
      • continuous: 112 dB
      • peak: 118 dB
    • Size
      • Width 165mm
      • Height 273mm
      • Depth 163 mm)
    • Weight 5.4 kg
Fulcrum Acoustic RX699
AutomaticEQ (IIR)
Set preamp gain to: -2.7dB.
Type Freq Q Gain
5 109.0 0.98 2.73
3 873.0 0.34 0.26
3 1261.0 2.54 0.59
3 2545.0 2.09 0.95
3 3676.0 2.85 0.91
3 5310.0 2.77 1.93
3 7930.0 1.46 1.88
3 9372.0 2.71 -2.03
3 13092.0 0.96 -1.18
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Fulcrum Acoustic RX699 filters_auto_eq

AutomaticEQ

Fulcrum Acoustic RX699 filters_eq_full

Target v.s. EQ

Fulcrum Acoustic RX699
Graphic EQ 15 bands
Set preamp gain to: -1.1dB.
Type Freq Q Gain
3 25.0 2.14 0.75
3 40.0 2.14 0.75
3 63.0 2.14 0.75
3 100.0 2.14 0.75
3 160.0 2.14 0.0
3 250.0 2.14 0.0
3 400.0 2.14 0.0
3 630.0 2.14 0.0
3 1000.0 2.14 0.25
3 1600.0 2.14 0.25
3 2500.0 2.14 0.25
3 4000.0 2.14 0.25
3 6300.0 2.14 0.5
3 10000.0 2.14 -0.25
3 16000.0 2.14 0.25
Download

These EQ is designed for a 15 bands graphical EQ.

Fulcrum Acoustic RX699
Graphic EQ 31 bands
Set preamp gain to: -1.2dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.75
3 31.0 4.32 0.75
3 40.0 4.32 0.75
3 50.0 4.32 0.75
3 63.0 4.32 0.75
3 80.0 4.32 0.75
3 100.0 4.32 0.75
3 125.0 4.32 0.25
3 160.0 4.32 0.0
3 200.0 4.32 0.0
3 250.0 4.32 0.0
3 315.0 4.32 0.25
3 400.0 4.32 0.0
3 500.0 4.32 0.25
3 630.0 4.32 0.0
3 800.0 4.32 0.0
3 1000.0 4.32 0.25
3 1250.0 4.32 0.25
3 1600.0 4.32 0.25
3 2000.0 4.32 0.25
3 2500.0 4.32 0.5
3 3150.0 4.32 0.25
3 4000.0 4.32 0.25
3 5000.0 4.32 0.5
3 6300.0 4.32 0.75
3 8000.0 4.32 0.25
3 10000.0 4.32 -0.25
3 12000.0 4.32 -0.5
3 16000.0 4.32 0.25
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.
