What we know about the measurement:

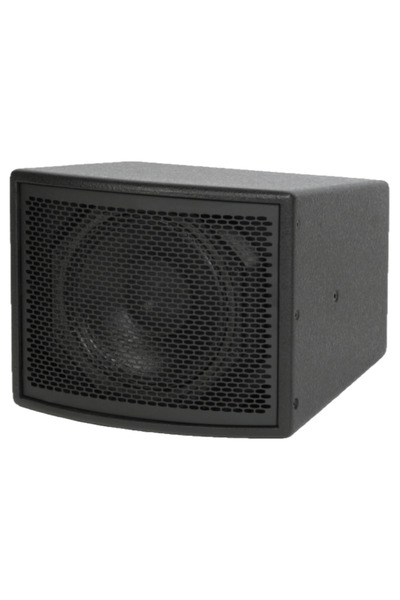

Fulcrum Acoustic P8 is a passive liveportable speaker .

  • Quality of the measurement data is medium .
  • Origin of the data is Fulcrum Acoustic.
  • Format of the data is a GLL file .
  • Sensitivity: 110.8dB (avg. 100Hz-1kHz for 2.83V estimated at 1m) . Sensitivity computed at the measurement distance (10m) over the same frequency range: 90.8dB.
  • -3dB (resp. -6db) point v.s. reference is at 132.0Hz (resp. 109.0Hz).
  • Reference level is normalised to -0.3dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 6.4dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-50.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-50.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 0.86 and would be 4.69 with a perfect subwoofer.
      • Details: NBD: ON 0.846, LW 0.625, SP 0.666, PIR 0.621; SM: SP0.725, PIR0.418; LFQ 1.353, LFX 111Hz
    • Tonality (Preference) Score is 3.41 with an EQ and would be 6.88 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.536, LW 0.451, SP 0.551, PIR 0.476; SM: SP0.909, PIR0.845; LFQ 1.143, LFX 92Hz
  • Vendor specifications:
    • Dispersion: 100° horizontal and 100° vertical.
    • Sensitivity 101 dB
    • Impedance 16 Ohm
    • SPL
      • continuous: 119 dB
      • peak: 125 dB
    • Size
      • Width 313mm
      • Height 313mm
      • Depth 263 mm)
    • Weight 7.3 kg
