What we know about the measurement:

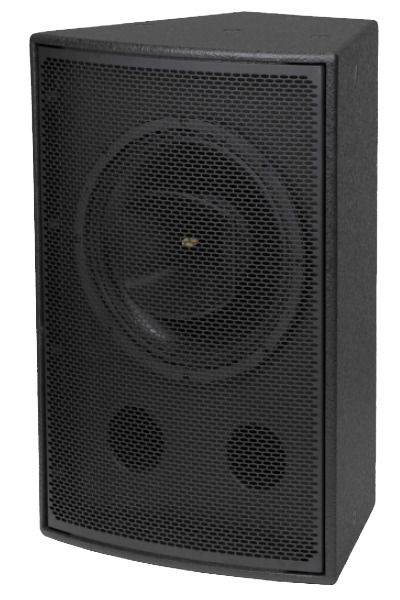

Fulcrum Acoustic GX1200 is a passive toursound

  • Quality of the measurement data is medium.
  • Origin of the data is Fulcrum Acoustic.
  • Format of the data is a GLL file .
  • Sensitivity:
    • Sensitivity: 103.9dB (avg. 100Hz-1kHz for 2.83V estimated at 1m).
    • Sensitivity: 83.9dB computed at the measurement distance (10.0m) over the same frequency range.
  • -3dB (resp. -6db) point v.s. reference is at 61.5Hz (resp. 56.0Hz).
  • Reference level is normalised to -0.3dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 3.8dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-40.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-40.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Note: The tonality (Preference) score does not make sense for toursound speakers. Don't give too much credits to the value.
    • Tonality (Preference) Score is 4.18 and would be 6.71 with a perfect subwoofer.
      • Details: NBD: ON 0.546, LW 0.425, SP 0.524, PIR 0.448; SM: SP0.759, PIR0.744; LFQ 1.992, LFX 56Hz
    • Tonality (Preference) Score is 5.31 with an EQ and would be 7.68 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.421, LW 0.323, SP 0.421, PIR 0.335; SM: SP0.884, PIR0.884; LFQ 1.992, LFX 51Hz
  • Note: Relatively high smoothing; Pattern is 100x100.
Fulcrum Acoustic GX1200
AutomaticEQ (IIR)
Set preamp gain to: -2.8dB.
Type Freq Q Gain
3 56.0 2.35 2.97
3 113.0 1.68 -1.09
3 270.0 2.54 -0.67
3 1381.0 2.97 0.9
3 4818.0 1.6 2.97
3 5165.0 2.99 -3.41
3 9648.0 2.5 -3.88
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Fulcrum Acoustic GX1200 filters_auto_eq

AutomaticEQ

Fulcrum Acoustic GX1200 filters_eq_full

Target v.s. EQ

Fulcrum Acoustic GX1200
Graphic EQ 15 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
3 25.0 2.14 0.5
3 40.0 2.14 0.5
3 63.0 2.14 0.5
3 100.0 2.14 0.0
3 160.0 2.14 0.0
3 250.0 2.14 0.0
3 400.0 2.14 0.0
3 630.0 2.14 0.25
3 1000.0 2.14 0.25
3 1600.0 2.14 0.25
3 2500.0 2.14 0.25
3 4000.0 2.14 0.25
3 6300.0 2.14 0.25
3 10000.0 2.14 -0.25
3 16000.0 2.14 0.25
Download

These EQ is designed for a 15 bands graphical EQ.

Fulcrum Acoustic GX1200
Graphic EQ 31 bands
Set preamp gain to: -0.8dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.5
3 31.0 4.32 0.5
3 40.0 4.32 0.5
3 50.0 4.32 0.5
3 63.0 4.32 0.5
3 80.0 4.32 0.0
3 100.0 4.32 0.0
3 125.0 4.32 0.0
3 160.0 4.32 0.0
3 200.0 4.32 0.0
3 250.0 4.32 0.0
3 315.0 4.32 0.25
3 400.0 4.32 0.25
3 500.0 4.32 0.25
3 630.0 4.32 0.25
3 800.0 4.32 0.5
3 1000.0 4.32 0.5
3 1250.0 4.32 0.5
3 1600.0 4.32 0.5
3 2000.0 4.32 0.5
3 2500.0 4.32 0.5
3 3150.0 4.32 0.5
3 4000.0 4.32 0.5
3 5000.0 4.32 0.25
3 6300.0 4.32 0.5
3 8000.0 4.32 0.0
3 10000.0 4.32 0.0
3 12000.0 4.32 0.25
3 16000.0 4.32 0.5
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

Fulcrum Acoustic GX1200: comparison between EQs
Fulcrum Acoustic GX1200

Comparison betweens various EQs

Fulcrum Acoustic GX1200

Improvements made by EQ

Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
;
