What we know about the measurement:

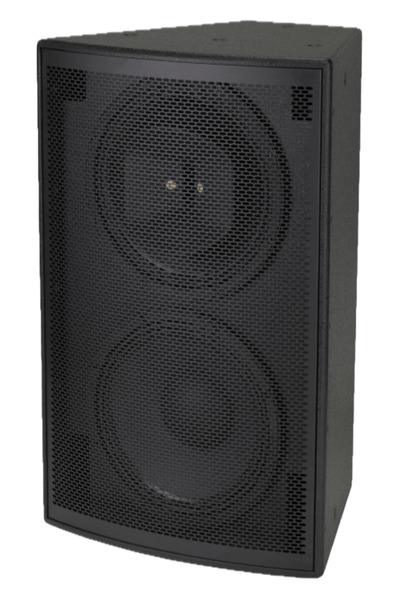

Fulcrum Acoustic DX1226 is a passive toursound speaker .

  • Quality of the measurement data is medium .
  • Origin of the data is Fulcrum Acoustic.
  • Format of the data is a GLL file .
  • Sensitivity: 117.7dB (avg. 100Hz-1kHz for 2.83V estimated at 1m) . Sensitivity computed at the measurement distance (10m) over the same frequency range: 97.7dB.
  • -3dB (resp. -6db) point v.s. reference is at 69.0Hz (resp. 60.0Hz).
  • Reference level is normalised to -0.3dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 4.4dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-50.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-40.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 2.6 and would be 5.26 with a perfect subwoofer.
      • Details: NBD: ON 0.785, LW 0.637, SP 0.685, PIR 0.644; SM: SP0.672, PIR0.631; LFQ 2.283, LFX 60Hz
    • Tonality (Preference) Score is 4.66 with an EQ and would be 7.03 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.535, LW 0.42, SP 0.543, PIR 0.439; SM: SP0.912, PIR0.86; LFQ 2.283, LFX 51Hz
  • Note: Relatively high smoothing; Pattern is 120x60
  • Vendor specifications:
    • Dispersion: 120° horizontal and 60° vertical.
    • Sensitivity 98 dB
    • Impedance 8 Ohm
    • SPL
      • continuous: 126 dB
      • peak: 132 dB
    • Size
      • Width 457mm
      • Height 711mm
      • Depth 406 mm)
    • Weight 28.6 kg
