What we know about the measurement:

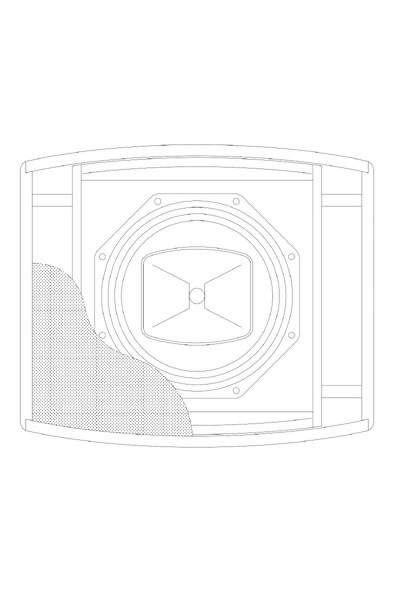

Fulcrum Acoustic CCX826 is a passive toursound
- Quality of the measurement data is medium.
- Origin of the data is Fulcrum Acoustic.
- Format of the data is a GLL file .
-
Sensitivity:
- Sensitivity: 101.4dB (avg. 100Hz-1kHz for 2.83V estimated at 1m).
- Sensitivity: 81.4dB computed at the measurement distance (10.0m) over the same frequency range.
- -3dB (resp. -6db) point v.s. reference is at 109.0Hz (resp. 95.0Hz).
- Reference level is normalised to -0.2dB computed over the frequency range [300.0Hz, 5000.0Hz].
- Frequency deviation is 2.7dB over the same frequency range.
- Directivity
- Horizontal directivity is (-40.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
- Vertical directivity is (-40.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
- Tonality (Preference) Score
- Note: The tonality (Preference) score does not make sense for toursound speakers. Don't give too much credits to the value.
- Tonality (Preference) Score is 3.19
and would be 6.8 with a
perfect subwoofer.
- Details: NBD: ON 0.483, LW 0.446, SP 0.464, PIR 0.433; SM: SP0.766, PIR0.7; LFQ 2.206, LFX 100Hz
- Tonality (Preference) Score is 4.76
with an EQ and would be 8.12 with a
perfect subwoofer and the same EQ.
- Details: NBD: ON 0.325, LW 0.287, SP 0.339, PIR 0.284; SM: SP0.899, PIR0.907; LFQ 2.24, LFX 87Hz
- Note: Relatively high smoothing; Pattern is 120x60.
