What we know about the measurement:

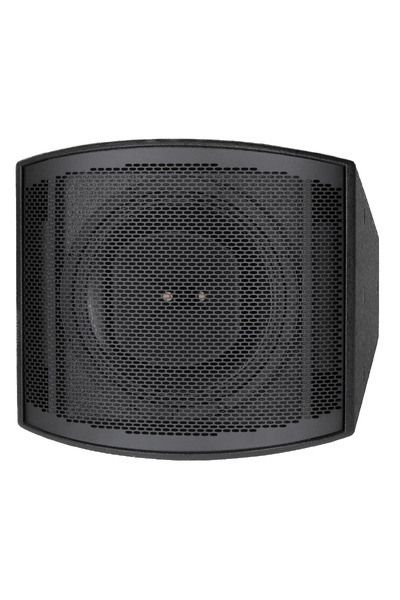

Fulcrum Acoustic CCX1595 is a passive toursound speaker .

  • Quality of the measurement data is medium .
  • Origin of the data is Fulcrum Acoustic.
  • Format of the data is a GLL file .
  • Sensitivity: 114.9dB (avg. 100Hz-1kHz for 2.83V estimated at 1m) . Sensitivity computed at the measurement distance (10m) over the same frequency range: 94.9dB.
  • -3dB (resp. -6db) point v.s. reference is at 77.5Hz (resp. 69.0Hz).
  • Reference level is normalised to -0.0dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 1.7dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-40.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-30.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 4.33 and would be 7.47 with a perfect subwoofer.
      • Details: NBD: ON 0.39, LW 0.35, SP 0.392, PIR 0.355; SM: SP0.818, PIR0.787; LFQ 3.201, LFX 77Hz
    • Tonality (Preference) Score is 5.51 with an EQ and would be 8.43 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.268, LW 0.242, SP 0.326, PIR 0.264; SM: SP0.929, PIR0.951; LFQ 3.201, LFX 68Hz
  • Note: Relatively high smoothing; Pattern is 90x45
