Measurements for speaker Emotiva Airmotiv C2+

Data

& EQ

Data & EQ
Ref.

Graphs

Reference graphs
EQed

Graphs

EQed graphs
Ref.

v.s. EQ

Reference v.s. EQed

What we know about the measurement:

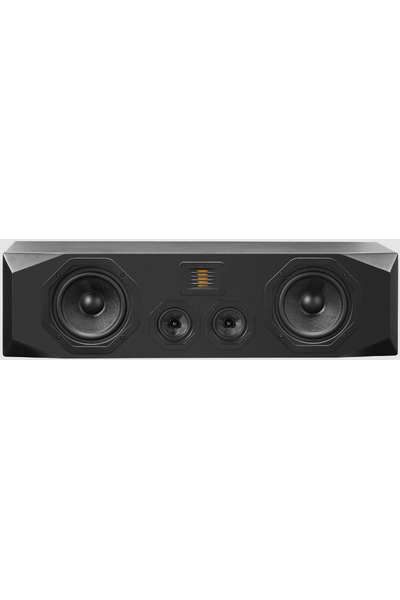

Emotiva Airmotiv C2+ is a passive center that cost around 399 USD

Quality of the measurement data is high.
Origin of the data is ErinsAudioCorner.
Format of the data is generated by a Klippel NFS .
Sensitivity: 90.5dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
-3dB (resp. -6db) point v.s. reference is at 63.0Hz (resp. 48.3Hz).
Reference level is normalised to -0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
Frequency deviation is 5.9dB over the same frequency range.
Directivity
- Horizontal directivity is (-20.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
- Vertical directivity is (-10.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
Tonality (Preference) Score
- Tonality (Preference) Score is 2.92 and would be 5.06 with a perfect subwoofer.
  - Details: NBD: ON 0.638, LW 0.623, SP 0.653, PIR 0.591; SM: SP0.547, PIR0.316; LFQ 1.018, LFX 45Hz
- Tonality (Preference) Score is 5.04 with an EQ and would be 6.99 with a perfect subwoofer and the same EQ.
  - Details: NBD: ON 0.521, LW 0.488, SP 0.554, PIR 0.47; SM: SP0.901, PIR0.867; LFQ 1.018, LFX 41Hz
Link to original Review: eac review. Links to other reviews: yt review .

Emotiva Airmotiv C2+

Type	Freq	Q	Gain
AutomaticEQ (IIR)
Set preamp gain to: -2.9dB.
3	49.0	0.88	2.98
3	117.0	1.37	-2.91
3	310.0	1.96	-1.51
3	1288.0	2.99	2.99
3	5934.0	2.02	-1.45
3	9001.0	2.33	-3.22
3	14633.0	0.98	-5.94
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Emotiva Airmotiv C2+ filters_auto_eq

AutomaticEQ

Emotiva Airmotiv C2+ filters_eq_full

Target v.s. EQ

Emotiva Airmotiv C2+

Type	Freq	Q	Gain
Graphic EQ 15 bands
Set preamp gain to: -0.7dB.
3	25.0	2.14	0.5
3	40.0	2.14	0.5
3	63.0	2.14	0.5
3	100.0	2.14	-0.25
3	160.0	2.14	-0.25
3	250.0	2.14	-0.25
3	400.0	2.14	0.0
3	630.0	2.14	0.25
3	1000.0	2.14	0.5
3	1600.0	2.14	0.0
3	2500.0	2.14	0.25
3	4000.0	2.14	0.25
3	6300.0	2.14	-0.25
3	10000.0	2.14	-0.5
3	16000.0	2.14	-0.5
Download

These EQ is designed for a 15 bands graphical EQ.

Emotiva Airmotiv C2+

Type	Freq	Q	Gain
Graphic EQ 31 bands
Set preamp gain to: -0.9dB.
3	20.0	4.32	0.0
3	25.0	4.32	0.25
3	31.0	4.32	0.25
3	40.0	4.32	0.25
3	50.0	4.32	0.25
3	63.0	4.32	0.25
3	80.0	4.32	0.0
3	100.0	4.32	-0.25
3	125.0	4.32	-0.25
3	160.0	4.32	-0.25
3	200.0	4.32	0.0
3	250.0	4.32	0.0
3	315.0	4.32	0.0
3	400.0	4.32	0.0
3	500.0	4.32	0.25
3	630.0	4.32	0.25
3	800.0	4.32	0.25
3	1000.0	4.32	0.5
3	1250.0	4.32	0.75
3	1600.0	4.32	0.0
3	2000.0	4.32	0.5
3	2500.0	4.32	0.25
3	3150.0	4.32	0.5
3	4000.0	4.32	0.25
3	5000.0	4.32	0.25
3	6300.0	4.32	0.0
3	8000.0	4.32	0.0
3	10000.0	4.32	-0.25
3	12000.0	4.32	-0.25
3	16000.0	4.32	-0.25
3	20000.0	4.32	0.0
Download

These EQ is designed for a 31 bands graphical EQ.

Emotiva Airmotiv C2+: comparison between EQs

Emotiva Airmotiv C2+

Comparison betweens various EQs

Emotiva Airmotiv C2+

Improvements made by EQ

CEA2034

On Axis

Early Reflections

Estimated In-Room Response

Horizontal Reflections

Vertical Reflections

SPL Horizontal

SPL Vertical

SPL Horizontal Normalized

SPL Vertical Normalized

SPL Horizontal Contour

SPL Vertical Contour

SPL Horizontal Contour Normalized

SPL Vertical Contour Normalized

SPL Horizontal Contour 3D

SPL Vertical Contour 3D

SPL Horizontal Contour Normalized 3D

SPL Vertical Contour Normalized 3D

SPL Horizontal Radar

SPL Vertical Radar
