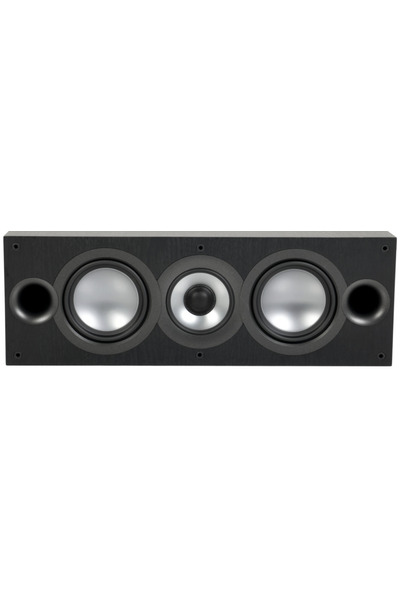

What we know about the measurement:
- Quality of the measurement data is
high.
-
Origin of the data is ErinsAudioCorner.
-
Format of the data is
generated by a Klippel NFS
.
-
Sensitivity: 83.9dB (avg. 100Hz-1kHz for 2.83V estimated at 1m)
-
-3dB (resp. -6db) point v.s. reference is at 71.8Hz (resp. 43.9Hz).
-
Reference level is normalised to 0.1dB
computed over the frequency range [300.0Hz,
5000.0Hz].
-
Frequency deviation is 2.5dB over the same frequency range.
- Directivity
-
Horizontal directivity
is (-50.0°, 50.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
-
Vertical directivity
is (-60.0°, 70.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
- Tonality (Preference) Score
- Tonality (Preference) Score is 4.85
and would be 6.99 with a
perfect subwoofer.
- Details:
NBD: ON 0.587,
LW 0.377, SP
0.344, PIR
0.295; SM:
SP0.867,
PIR0.714; LFQ
0.998, LFX 45Hz
- Tonality (Preference) Score is 6.12
with an EQ and would be 8.13 with a
perfect subwoofer and the same EQ.
- Details:
NBD: ON 0.457,
LW 0.26, SP
0.27, PIR
0.183; SM:
SP0.942,
PIR0.922; LFQ 0.998, LFX 42Hz
- Horizontal measurement
- Link to Original review.
|
AutomaticEQ (IIR)
|
|
Set preamp gain to: -2.6dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
60.0 |
0.93 |
2.96 |
| 3 |
98.0 |
2.9 |
-3.88 |
| 3 |
1046.0 |
2.93 |
0.97 |
| 3 |
3177.0 |
2.84 |
1.86 |
| 3 |
4818.0 |
1.32 |
-1.92 |
| 3 |
6818.0 |
2.98 |
0.98 |
| 3 |
9319.0 |
0.87 |
-1.64 |
|
Download
|
These EQ optimise the Harman score and is a good start for far field listening like in your living room.
AutomaticEQ
Target v.s. EQ
|
Graphic EQ 15 bands
|
|
Set preamp gain to: -0.3dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
25.0 |
2.14 |
0.25 |
| 3 |
40.0 |
2.14 |
0.25 |
| 3 |
63.0 |
2.14 |
0.25 |
| 3 |
100.0 |
2.14 |
-0.25 |
| 3 |
160.0 |
2.14 |
0.0 |
| 3 |
250.0 |
2.14 |
-0.25 |
| 3 |
400.0 |
2.14 |
0.0 |
| 3 |
630.0 |
2.14 |
0.0 |
| 3 |
1000.0 |
2.14 |
0.0 |
| 3 |
1600.0 |
2.14 |
0.0 |
| 3 |
2500.0 |
2.14 |
0.0 |
| 3 |
4000.0 |
2.14 |
-0.25 |
| 3 |
6300.0 |
2.14 |
-0.25 |
| 3 |
10000.0 |
2.14 |
-0.25 |
| 3 |
16000.0 |
2.14 |
0.0 |
|
Download
|
These EQ is designed for a 15 bands graphical EQ.
|
Graphic EQ 31 bands
|
|
Set preamp gain to: -0.4dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
20.0 |
4.32 |
0.0 |
| 3 |
25.0 |
4.32 |
0.25 |
| 3 |
31.0 |
4.32 |
0.25 |
| 3 |
40.0 |
4.32 |
0.25 |
| 3 |
50.0 |
4.32 |
0.25 |
| 3 |
63.0 |
4.32 |
0.25 |
| 3 |
80.0 |
4.32 |
0.0 |
| 3 |
100.0 |
4.32 |
-0.25 |
| 3 |
125.0 |
4.32 |
0.0 |
| 3 |
160.0 |
4.32 |
0.0 |
| 3 |
200.0 |
4.32 |
-0.25 |
| 3 |
250.0 |
4.32 |
-0.25 |
| 3 |
315.0 |
4.32 |
0.0 |
| 3 |
400.0 |
4.32 |
0.0 |
| 3 |
500.0 |
4.32 |
0.0 |
| 3 |
630.0 |
4.32 |
0.0 |
| 3 |
800.0 |
4.32 |
0.0 |
| 3 |
1000.0 |
4.32 |
0.0 |
| 3 |
1250.0 |
4.32 |
0.0 |
| 3 |
1600.0 |
4.32 |
0.0 |
| 3 |
2000.0 |
4.32 |
0.25 |
| 3 |
2500.0 |
4.32 |
0.25 |
| 3 |
3150.0 |
4.32 |
0.25 |
| 3 |
4000.0 |
4.32 |
0.0 |
| 3 |
5000.0 |
4.32 |
-0.25 |
| 3 |
6300.0 |
4.32 |
0.0 |
| 3 |
8000.0 |
4.32 |
-0.25 |
| 3 |
10000.0 |
4.32 |
-0.25 |
| 3 |
12000.0 |
4.32 |
-0.25 |
| 3 |
16000.0 |
4.32 |
0.0 |
| 3 |
20000.0 |
4.32 |
0.0 |
|
Download
|
These EQ is designed for a 31 bands graphical EQ.
Comparison betweens various EQs
Improvements made by EQ
|
