We have multiple measurements for this speaker. Click here to see the default one (which is higher quality if we have one measurement better than the others).

What we know about the measurement:

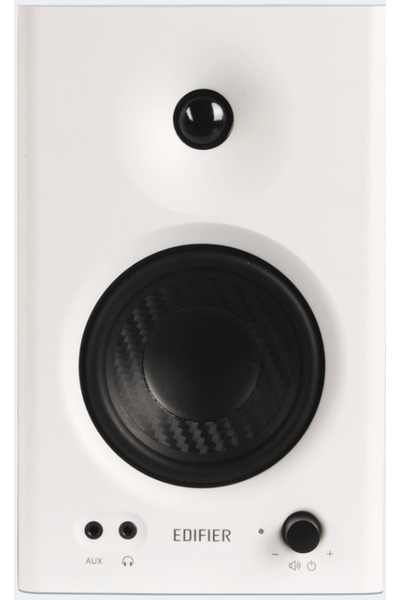

Edifier MR4 is an active bookshelves speaker that cost around 130USD for a pair .

  • Quality of the measurement data is high .
  • Origin of the data is ASR.
  • Format of the data is generated by a Klippel NFS .
  • -3dB (resp. -6db) point v.s. reference is at 79.1Hz (resp. 64.5Hz).
  • Reference level is normalised to -0.4dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 3.0dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-60.0°, 60.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-30.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 3.26 and would be 6.01 with a perfect subwoofer.
      • Details: NBD: ON 0.511, LW 0.525, SP 0.518, PIR 0.509; SM: SP0.747, PIR0.485; LFQ 0.219, LFX 62Hz
    • Tonality (Preference) Score is 5.72 with an EQ and would be 8.33 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.304, LW 0.266, SP 0.304, PIR 0.26; SM: SP0.961, PIR0.943; LFQ 0.219, LFX 58Hz
  • Link to Original review.
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
;
