We have multiple measurements for this speaker. Click here to see the default one (which is higher quality if we have one measurement better than the others).

What we know about the measurement:

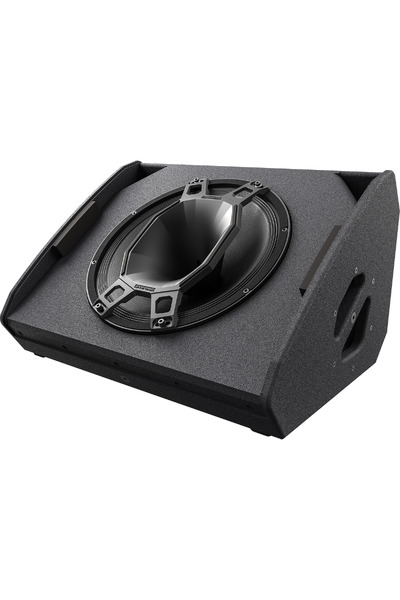

EV MFX-15MC is an active liveportable that cost around 6000 USD for a pair.

  • Quality of the measurement data is medium.
  • Origin of the data is EV.
  • Format of the data is a GLL file .
  • -3dB (resp. -6db) point v.s. reference is at 95.0Hz (resp. 75.0Hz).
  • Reference level is normalised to -0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 3.6dB over the same frequency range.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 2.58 and would be 5.61 with a perfect subwoofer.
      • Details: NBD: ON 0.742, LW 0.667, SP 0.692, PIR 0.634; SM: SP0.832, PIR0.722; LFQ 2.495, LFX 73Hz
    • Tonality (Preference) Score is 2.28 with an EQ and would be 5.36 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.801, LW 0.72, SP 0.691, PIR 0.677; SM: SP0.858, PIR0.732; LFQ 2.495, LFX 75Hz
  • Vendor specifications:
    • Dispersion: 40° horizontal and 60° vertical.
    • Sensitivity 97 dB
    • Impedance 8 Ohm
    • SPL
      • peak: 135 dB
    • Size
      • Width 500mm
      • Height 600mm
      • Depth 339mm
    • Weight 23kg
EV MFX-15MC
AutomaticEQ (IIR)
Set preamp gain to: -3.1dB.
Type Freq Q Gain
HS 87.0 0.94 -0.51
PK 432.0 2.85 1.99
PK 873.0 2.97 2.99
PK 1220.0 2.88 -2.04
PK 2014.0 3.0 2.36
PK 2631.0 2.95 3.0
PK 4803.0 2.36 -0.24
PK 6937.0 2.82 -1.87
NO 13092.0 30.0 2.16
Download
This EQ optimise the Harman score and is a good start for far field listening like in your living room.
EV MFX-15MC
Graphic EQ 15 bands
Set preamp gain to: -1.4dB.
Type Freq Q Gain
PK 25.0 2.14 0.75
PK 40.0 2.14 0.75
PK 63.0 2.14 0.75
PK 100.0 2.14 -0.25
PK 160.0 2.14 -0.25
PK 250.0 2.14 0.25
PK 400.0 2.14 0.5
PK 630.0 2.14 0.25
PK 1000.0 2.14 0.5
PK 1600.0 2.14 0.25
PK 2500.0 2.14 1.25
PK 4000.0 2.14 0.25
PK 6300.0 2.14 0.25
PK 10000.0 2.14 0.0
PK 16000.0 2.14 -0.5
Download
This EQ is designed for a 15 bands graphical EQ.
EV MFX-15MC
Graphic EQ 31 bands
Set preamp gain to: -1.2dB.
Type Freq Q Gain
PK 20.0 4.32 0.0
PK 25.0 4.32 0.5
PK 31.0 4.32 0.5
PK 40.0 4.32 0.5
PK 50.0 4.32 0.5
PK 63.0 4.32 0.5
PK 80.0 4.32 0.25
PK 100.0 4.32 0.0
PK 125.0 4.32 0.0
PK 160.0 4.32 0.0
PK 200.0 4.32 0.0
PK 250.0 4.32 0.25
PK 315.0 4.32 0.25
PK 400.0 4.32 0.25
PK 500.0 4.32 0.25
PK 630.0 4.32 0.25
PK 800.0 4.32 1.0
PK 1000.0 4.32 0.5
PK 1250.0 4.32 0.0
PK 1600.0 4.32 0.25
PK 2000.0 4.32 0.75
PK 2500.0 4.32 0.75
PK 3150.0 4.32 0.5
PK 4000.0 4.32 0.25
PK 5000.0 4.32 0.25
PK 6300.0 4.32 0.25
PK 8000.0 4.32 0.5
PK 10000.0 4.32 0.0
PK 12000.0 4.32 0.25
PK 16000.0 4.32 -0.25
PK 20000.0 4.32 0.0
Download
This EQ is designed for a 31 bands graphical EQ.
Improvement made by adding the above EQ
EQ
AutoEQ
Target v.s. EQ
Target v.s. EQ
Histogram of errors
On Axis (fullrange)
Listening Window (fullrange)
Predicted In-Room Response (fullrange)
EV MFX-15MC: comparison between EQs
AutomaticEQ
Target v.s. EQ
Comparison betweens various EQs
;
