What we know about the measurement:

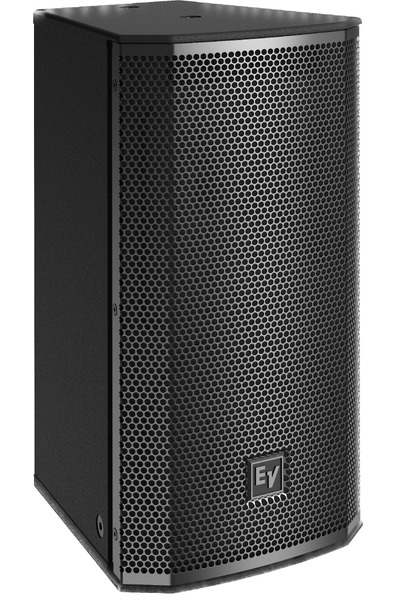

EV EVC-1082 is a passive liveportable

  • Quality of the measurement data is medium.
  • Origin of the data is EV.
  • Format of the data is a GLL file .
  • Sensitivity:
    • Sensitivity: 91.9dB (avg. 100Hz-1kHz for 2.83V estimated at 1m).
    • Sensitivity: 71.9dB computed at the measurement distance (10.0m) over the same frequency range.
  • -3dB (resp. -6db) point v.s. reference is at 67.0Hz (resp. 63.0Hz).
  • Reference level is normalised to 0.2dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 4.2dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-40.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 2.29 and would be 5.04 with a perfect subwoofer.
      • Details: NBD: ON 0.618, LW 0.737, SP 0.806, PIR 0.748; SM: SP0.798, PIR0.488; LFQ 1.396, LFX 63Hz
    • Tonality (Preference) Score is 4.76 with an EQ and would be 7.35 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.384, LW 0.483, SP 0.493, PIR 0.449; SM: SP0.935, PIR0.849; LFQ 1.396, LFX 58Hz
  • Vendor specifications:
    • Dispersion: 90° horizontal and 60° vertical.
    • Sensitivity 91 dB
    • Impedance 6 Ohm
    • SPL
      • peak: 120 dB
    • Size
      • Width 248mm
      • Height 492mm
      • Depth 277 mm)
    • Weight 11.2 kg
EV EVC-1082
AutomaticEQ (IIR)
Set preamp gain to: -2.9dB.
Type Freq Q Gain
PK 58.0 2.73 2.98
PK 125.0 1.79 -1.43
PK 243.0 2.98 2.99
PK 560.0 3.0 3.0
PK 910.0 1.77 -1.6
PK 6144.0 2.85 -3.67
PK 11476.0 2.98 -3.68
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

EV EVC-1082 filters_auto_eq

AutomaticEQ

EV EVC-1082 filters_eq_full

Target v.s. EQ

EV EVC-1082
Graphic EQ 15 bands
Set preamp gain to: -1.0dB.
Type Freq Q Gain
PK 25.0 2.14 0.75
PK 40.0 2.14 0.75
PK 63.0 2.14 0.75
PK 100.0 2.14 -0.25
PK 160.0 2.14 -0.25
PK 250.0 2.14 0.75
PK 400.0 2.14 0.0
PK 630.0 2.14 0.25
PK 1000.0 2.14 -0.25
PK 1600.0 2.14 0.25
PK 2500.0 2.14 -0.5
PK 4000.0 2.14 0.0
PK 6300.0 2.14 -0.75
PK 10000.0 2.14 -0.25
PK 16000.0 2.14 0.5
Download

These EQ is designed for a 15 bands graphical EQ.

EV EVC-1082
Graphic EQ 31 bands
Set preamp gain to: -1.1dB.
Type Freq Q Gain
PK 20.0 4.32 0.0
PK 25.0 4.32 0.75
PK 31.0 4.32 0.75
PK 40.0 4.32 0.75
PK 50.0 4.32 0.75
PK 63.0 4.32 0.75
PK 80.0 4.32 0.0
PK 100.0 4.32 0.0
PK 125.0 4.32 -0.25
PK 160.0 4.32 0.0
PK 200.0 4.32 0.25
PK 250.0 4.32 0.75
PK 315.0 4.32 0.0
PK 400.0 4.32 0.25
PK 500.0 4.32 0.5
PK 630.0 4.32 0.5
PK 800.0 4.32 0.25
PK 1000.0 4.32 0.25
PK 1250.0 4.32 0.0
PK 1600.0 4.32 0.0
PK 2000.0 4.32 0.0
PK 2500.0 4.32 -0.25
PK 3150.0 4.32 -0.25
PK 4000.0 4.32 0.0
PK 5000.0 4.32 0.0
PK 6300.0 4.32 -0.75
PK 8000.0 4.32 -0.25
PK 10000.0 4.32 0.0
PK 12000.0 4.32 -0.25
PK 16000.0 4.32 0.25
PK 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

EV EVC-1082: comparison between EQs
EV EVC-1082

Comparison betweens various EQs

EV EVC-1082

Improvements made by EQ
