We have multiple measurements for this speaker. Click here to see the default one (which is higher quality if we have one measurement better than the others).

What we know about the measurement:

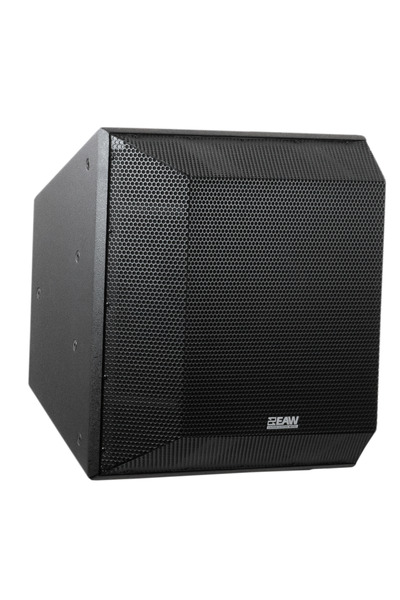

EAW QX300 is a passive toursound that cost around 3500 USD for a pair.

  • Quality of the measurement data is low.
  • Origin of the data is EAW.
  • Format of the data is a GLL file .
  • -3dB (resp. -6db) point v.s. reference is at 82.5Hz (resp. 73.0Hz).
  • Reference level is normalised to -0.4dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 2.8dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-40.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-30.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Note: The tonality (Preference) score does not make sense for toursound speakers. Don't give too much credits to the value.
    • Tonality (Preference) Score is 4.58 and would be 7.55 with a perfect subwoofer.
      • Details: NBD: ON 0.357, LW 0.401, SP 0.601, PIR 0.471; SM: SP0.95, PIR0.937; LFQ 2.987, LFX 70Hz
    • Tonality (Preference) Score is 4.85 with an EQ and would be 7.87 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.303, LW 0.285, SP 0.501, PIR 0.362; SM: SP0.904, PIR0.877; LFQ 2.987, LFX 73Hz
  • Vendor specifications:
    • Dispersion: 60° horizontal and 60° vertical.
    • SPL
      • peak: 144 dB
    • Size
      • Width 602mm
      • Height 602mm
      • Depth 505 mm)
    • Weight 43 kg
