Notice

Warning

We have multiple measurements for this speaker. Click here to see the default one (which is higher quality if we have one measurement better than the others).

What we know about the measurement:

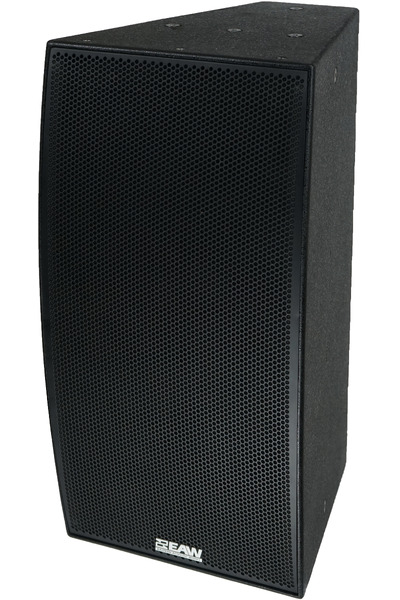

EAW MKD1000 is a passive liveportable that cost around 2900 USD each.

  • Quality of the measurement data is low.
  • Origin of the data is EAW.
  • Format of the data is a GLL file .
  • -3dB (resp. -6db) point v.s. reference is at 100.0Hz (resp. 87.5Hz).
  • Reference level is normalised to 0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 3.9dB over the same frequency range.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 0.65 and would be 3.96 with a perfect subwoofer.
      • Details: NBD: ON 1.141, LW 0.981, SP 0.948, PIR 0.944; SM: SP0.918, PIR0.839; LFQ 2.604, LFX 84Hz
    • Tonality (Preference) Score is 0.54 with an EQ and would be 3.62 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 1.183, LW 1.065, SP 1.05, PIR 1.041; SM: SP0.918, PIR0.862; LFQ 2.604, LFX 75Hz
  • Vendor specifications:
    • Dispersion: 60° horizontal and 45° vertical.
    • SPL
      • peak: 138 dB
    • Size
      • Width 370mm
      • Height 680mm
      • Depth 420mm
    • Weight 27.3kg
EAW MKD1000
AutomaticEQ (IIR)
Set preamp gain to: -1.4dB.
Type Freq Q Gain
LS 100.0 0.66 2.99
PK 691.0 2.95 -2.97
PK 873.0 0.56 2.77
PK 1822.0 2.97 -2.9
PK 2226.0 2.97 2.96
PK 2909.0 2.95 -2.98
PK 4966.0 2.97 -2.9
PK 7417.0 2.91 1.67
LS 9691.0 1.06 -1.56
Download
This EQ optimise the Harman score and is a good start for far field listening like in your living room.
EAW MKD1000
Graphic EQ 15 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
PK 25.0 2.14 0.5
PK 40.0 2.14 0.5
PK 63.0 2.14 0.5
PK 100.0 2.14 0.5
PK 160.0 2.14 -0.25
PK 250.0 2.14 0.0
PK 400.0 2.14 0.5
PK 630.0 2.14 0.0
PK 1000.0 2.14 0.25
PK 1600.0 2.14 0.25
PK 2500.0 2.14 0.25
PK 4000.0 2.14 0.25
PK 6300.0 2.14 0.25
PK 10000.0 2.14 0.5
PK 16000.0 2.14 0.25
Download
This EQ is designed for a 15 bands graphical EQ.
EAW MKD1000
Graphic EQ 31 bands
Set preamp gain to: -0.9dB.
Type Freq Q Gain
PK 20.0 4.32 0.0
PK 25.0 4.32 0.5
PK 31.0 4.32 0.5
PK 40.0 4.32 0.5
PK 50.0 4.32 0.5
PK 63.0 4.32 0.5
PK 80.0 4.32 0.5
PK 100.0 4.32 0.5
PK 125.0 4.32 -0.25
PK 160.0 4.32 -0.25
PK 200.0 4.32 -0.25
PK 250.0 4.32 -0.25
PK 315.0 4.32 -0.25
PK 400.0 4.32 0.25
PK 500.0 4.32 -0.25
PK 630.0 4.32 -0.25
PK 800.0 4.32 0.0
PK 1000.0 4.32 0.0
PK 1250.0 4.32 0.5
PK 1600.0 4.32 0.25
PK 2000.0 4.32 0.25
PK 2500.0 4.32 0.25
PK 3150.0 4.32 0.0
PK 4000.0 4.32 0.25
PK 5000.0 4.32 0.0
PK 6300.0 4.32 0.25
PK 8000.0 4.32 0.75
PK 10000.0 4.32 0.5
PK 12000.0 4.32 0.5
PK 16000.0 4.32 0.25
PK 20000.0 4.32 0.0
Download
This EQ is designed for a 31 bands graphical EQ.
Improvement made by adding the above EQ
EQ
AutoEQ
Target v.s. EQ
Target v.s. EQ
Histogram of errors
On Axis (fullrange)
Listening Window (fullrange)
Predicted In-Room Response (fullrange)
EAW MKD1000: comparison between EQs
AutomaticEQ
Target v.s. EQ
Comparison betweens various EQs
;
