What we know about the measurement:

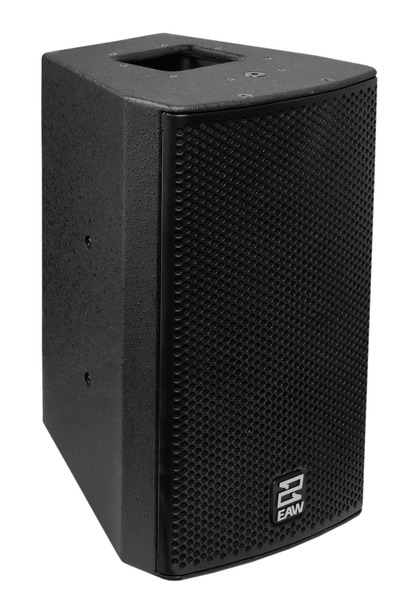

EAW MKC80 is a passive liveportable that cost around 1800 USD for a pair.

  • Quality of the measurement data is medium.
  • Origin of the data is EAW.
  • Format of the data is a GLL file .
  • Sensitivity:
    • Sensitivity: 97.1dB (avg. 100Hz-1kHz for 2.83V estimated at 1m).
    • Sensitivity: 77.1dB computed at the measurement distance (10.0m) over the same frequency range.
  • -3dB (resp. -6db) point v.s. reference is at 85.0Hz (resp. 73.0Hz).
  • Reference level is normalised to -0.3dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 3.4dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-40.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-30.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 4.75 and would be 7.78 with a perfect subwoofer.
      • Details: NBD: ON 0.309, LW 0.321, SP 0.553, PIR 0.417; SM: SP0.948, PIR0.911; LFQ 1.393, LFX 73Hz
    • Tonality (Preference) Score is 5.68 with an EQ and would be 8.6 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.215, LW 0.167, SP 0.409, PIR 0.247; SM: SP0.953, PIR0.947; LFQ 1.393, LFX 68Hz
  • Vendor specifications:
    • Dispersion: 90° horizontal and 60° vertical.
    • Sensitivity 93 dB
    • Impedance 7 Ohm
    • SPL
      • continuous: 126 dB
      • peak: 132 dB
    • Size
      • Width 255mm
      • Height 422mm
      • Depth 267mm
    • Weight 10.0kg
EAW MKC80
AutomaticEQ (IIR)
Set preamp gain to: -5.8dB.
Type Freq Q Gain
LS 102.0 1.17 2.94
PK 342.0 0.32 -0.84
PK 998.0 2.77 2.79
PK 1348.0 2.76 -1.16
PK 1762.0 2.74 -0.24
PK 3110.0 0.79 2.09
PK 4645.0 1.4 -1.44
PK 12662.0 0.36 2.96
PK 14965.0 0.81 2.93
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

EAW MKC80 filters_auto_eq

AutomaticEQ

EAW MKC80 filters_eq_full

Target v.s. EQ

EAW MKC80
Graphic EQ 15 bands
Set preamp gain to: -1.0dB.
Type Freq Q Gain
PK 25.0 2.14 0.25
PK 40.0 2.14 0.25
PK 63.0 2.14 0.25
PK 100.0 2.14 0.25
PK 160.0 2.14 0.0
PK 250.0 2.14 0.0
PK 400.0 2.14 0.0
PK 630.0 2.14 0.0
PK 1000.0 2.14 0.25
PK 1600.0 2.14 0.0
PK 2500.0 2.14 0.25
PK 4000.0 2.14 0.25
PK 6300.0 2.14 0.25
PK 10000.0 2.14 0.5
PK 16000.0 2.14 1.0
Download

These EQ is designed for a 15 bands graphical EQ.

EAW MKC80
Graphic EQ 31 bands
Set preamp gain to: -1.6dB.
Type Freq Q Gain
PK 20.0 4.32 0.0
PK 25.0 4.32 0.5
PK 31.0 4.32 0.5
PK 40.0 4.32 0.5
PK 50.0 4.32 0.5
PK 63.0 4.32 0.5
PK 80.0 4.32 0.5
PK 100.0 4.32 0.25
PK 125.0 4.32 0.0
PK 160.0 4.32 0.0
PK 200.0 4.32 0.0
PK 250.0 4.32 0.0
PK 315.0 4.32 0.0
PK 400.0 4.32 0.0
PK 500.0 4.32 0.0
PK 630.0 4.32 0.0
PK 800.0 4.32 0.25
PK 1000.0 4.32 0.5
PK 1250.0 4.32 0.25
PK 1600.0 4.32 0.25
PK 2000.0 4.32 0.25
PK 2500.0 4.32 0.5
PK 3150.0 4.32 0.5
PK 4000.0 4.32 0.5
PK 5000.0 4.32 0.5
PK 6300.0 4.32 0.5
PK 8000.0 4.32 0.75
PK 10000.0 4.32 0.75
PK 12000.0 4.32 1.0
PK 16000.0 4.32 1.5
PK 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.
