What we know about the measurement:

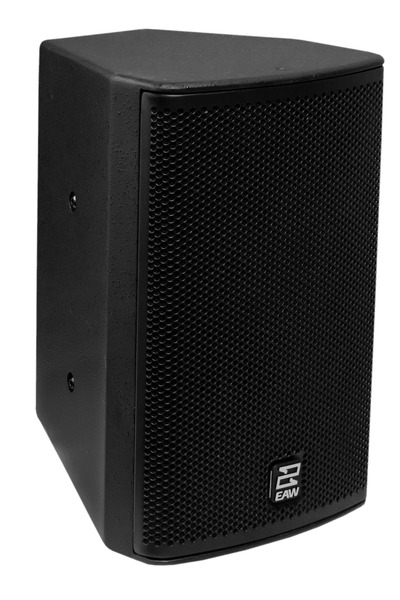

EAW MKC60 is a passive liveportable that cost around 1200 USD for a pair.

  • Quality of the measurement data is medium.
  • Origin of the data is EAW.
  • Format of the data is a GLL file .
  • Sensitivity: 111.0dB (avg. 100Hz-1kHz for 2.83V estimated at 1m) . Sensitivity computed at the measurement distance (10m) over the same frequency range: 91.0dB.
  • -3dB (resp. -6db) point v.s. reference is at 90.0Hz (resp. 82.5Hz).
  • Reference level is normalised to -0.0dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 2.4dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-60.0°, 60.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-60.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 4.34 and would be 7.59 with a perfect subwoofer.
      • Details: NBD: ON 0.366, LW 0.29, SP 0.534, PIR 0.398; SM: SP0.915, PIR0.87; LFQ 0.935, LFX 82Hz
    • Tonality (Preference) Score is 4.78 with an EQ and would be 8.03 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.32, LW 0.203, SP 0.442, PIR 0.3; SM: SP0.918, PIR0.884; LFQ 0.935, LFX 82Hz
  • Vendor specifications:
    • Dispersion: 110° horizontal and 110° vertical.
    • Sensitivity 89 dB
    • Impedance 6 Ohm
    • SPL
      • continuous: 119 dB
      • peak: 125 dB
    • Size
      • Width 208mm
      • Height 324mm
      • Depth 206 mm)
    • Weight 4.9 kg
EAW MKC60
AutomaticEQ (IIR)
Set preamp gain to: -5.8dB.
Type Freq Q Gain
3 158.0 1.27 -1.1
3 817.0 0.53 -0.8
3 1032.0 2.98 1.33
3 1704.0 1.35 0.72
3 3438.0 2.38 -0.45
3 4966.0 2.46 -0.68
3 6937.0 2.66 -2.0
3 12662.0 0.27 2.97
3 15474.0 0.92 2.98
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

EAW MKC60 filters_auto_eq

AutomaticEQ

EAW MKC60 filters_eq_full

Target v.s. EQ

EAW MKC60
Graphic EQ 15 bands
Set preamp gain to: -1.0dB.
Type Freq Q Gain
3 25.0 2.14 0.25
3 40.0 2.14 0.25
3 63.0 2.14 0.25
3 100.0 2.14 0.0
3 160.0 2.14 -0.25
3 250.0 2.14 0.0
3 400.0 2.14 0.0
3 630.0 2.14 0.0
3 1000.0 2.14 0.0
3 1600.0 2.14 0.0
3 2500.0 2.14 0.0
3 4000.0 2.14 0.0
3 6300.0 2.14 0.0
3 10000.0 2.14 0.25
3 16000.0 2.14 1.0
Download

These EQ is designed for a 15 bands graphical EQ.

EAW MKC60
Graphic EQ 31 bands
Set preamp gain to: -1.3dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.5
3 31.0 4.32 0.5
3 40.0 4.32 0.5
3 50.0 4.32 0.5
3 63.0 4.32 0.5
3 80.0 4.32 0.5
3 100.0 4.32 0.0
3 125.0 4.32 -0.25
3 160.0 4.32 -0.25
3 200.0 4.32 -0.25
3 250.0 4.32 0.0
3 315.0 4.32 0.0
3 400.0 4.32 0.0
3 500.0 4.32 0.0
3 630.0 4.32 0.0
3 800.0 4.32 0.0
3 1000.0 4.32 0.25
3 1250.0 4.32 0.0
3 1600.0 4.32 0.0
3 2000.0 4.32 0.0
3 2500.0 4.32 0.25
3 3150.0 4.32 0.0
3 4000.0 4.32 0.25
3 5000.0 4.32 0.0
3 6300.0 4.32 0.25
3 8000.0 4.32 0.5
3 10000.0 4.32 0.25
3 12000.0 4.32 0.75
3 16000.0 4.32 1.25
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

EAW MKC60: comparison between EQs
EAW MKC60

Comparison betweens various EQs

EAW MKC60

Improvements made by EQ
CEA2034
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
