What we know about the measurement:

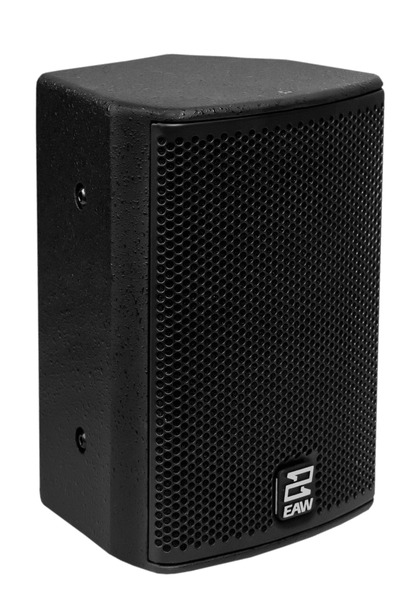

EAW MKC50 is a passive liveportable that cost around 660 USD for a pair.

  • Quality of the measurement data is medium.
  • Origin of the data is EAW.
  • Format of the data is a GLL file .
  • Sensitivity:
    • Sensitivity: 85.9dB (avg. 100Hz-1kHz for 2.83V estimated at 1m).
    • Sensitivity: 65.9dB computed at the measurement distance (10.0m) over the same frequency range.
  • -3dB (resp. -6db) point v.s. reference is at 103.0Hz (resp. 92.5Hz).
  • Reference level is normalised to -0.2dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 2.6dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-50.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-50.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 4.15 and would be 7.67 with a perfect subwoofer.
      • Details: NBD: ON 0.323, LW 0.288, SP 0.518, PIR 0.358; SM: SP0.873, PIR0.806; LFQ 0.567, LFX 95Hz
    • Tonality (Preference) Score is 4.9 with an EQ and would be 8.32 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.253, LW 0.223, SP 0.416, PIR 0.264; SM: SP0.925, PIR0.889; LFQ 0.567, LFX 89Hz
  • Vendor specifications:
    • Dispersion: 110° horizontal and 110° vertical.
    • Sensitivity 87 dB
    • Impedance 6 Ohm
    • SPL
      • continuous: 115 dB
      • peak: 121 dB
    • Size
      • Width 165mm
      • Height 235mm
      • Depth 141mm
    • Weight 3.3kg
EAW MKC50
AutomaticEQ (IIR)
Set preamp gain to: -5.6dB.
Type Freq Q Gain
LS 121.0 0.98 2.95
PK 625.0 0.26 -2.7
PK 739.0 0.41 2.44
PK 1442.0 2.08 0.74
PK 3216.0 1.74 0.9
PK 5677.0 2.8 -0.49
PK 10020.0 2.45 -0.3
PK 13537.0 0.69 2.97
PK 16000.0 0.76 2.99
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

EAW MKC50 filters_auto_eq

AutomaticEQ

EAW MKC50 filters_eq_full

Target v.s. EQ

EAW MKC50
Graphic EQ 15 bands
Set preamp gain to: -1.3dB.
Type Freq Q Gain
PK 25.0 2.14 0.25
PK 40.0 2.14 0.25
PK 63.0 2.14 0.25
PK 100.0 2.14 0.25
PK 160.0 2.14 -0.25
PK 250.0 2.14 -0.25
PK 400.0 2.14 0.0
PK 630.0 2.14 0.0
PK 1000.0 2.14 0.0
PK 1600.0 2.14 0.0
PK 2500.0 2.14 0.0
PK 4000.0 2.14 0.25
PK 6300.0 2.14 0.0
PK 10000.0 2.14 0.25
PK 16000.0 2.14 1.25
Download

These EQ is designed for a 15 bands graphical EQ.

EAW MKC50
Graphic EQ 31 bands
Set preamp gain to: -1.5dB.
Type Freq Q Gain
PK 20.0 4.32 0.0
PK 25.0 4.32 0.5
PK 31.0 4.32 0.5
PK 40.0 4.32 0.5
PK 50.0 4.32 0.5
PK 63.0 4.32 0.5
PK 80.0 4.32 0.5
PK 100.0 4.32 0.5
PK 125.0 4.32 0.0
PK 160.0 4.32 -0.25
PK 200.0 4.32 -0.25
PK 250.0 4.32 0.0
PK 315.0 4.32 0.0
PK 400.0 4.32 0.0
PK 500.0 4.32 0.0
PK 630.0 4.32 0.0
PK 800.0 4.32 0.0
PK 1000.0 4.32 0.0
PK 1250.0 4.32 0.0
PK 1600.0 4.32 0.25
PK 2000.0 4.32 0.0
PK 2500.0 4.32 0.0
PK 3150.0 4.32 0.25
PK 4000.0 4.32 0.25
PK 5000.0 4.32 0.25
PK 6300.0 4.32 0.25
PK 8000.0 4.32 0.25
PK 10000.0 4.32 0.5
PK 12000.0 4.32 0.75
PK 16000.0 4.32 1.5
PK 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

EAW MKC50: comparison between EQs
EAW MKC50

Comparison betweens various EQs

EAW MKC50

Improvements made by EQ
CEA2034
CEA2034 Normalized
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
CEA2034
CEA2034 Normalized
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
