What we know about the measurement:

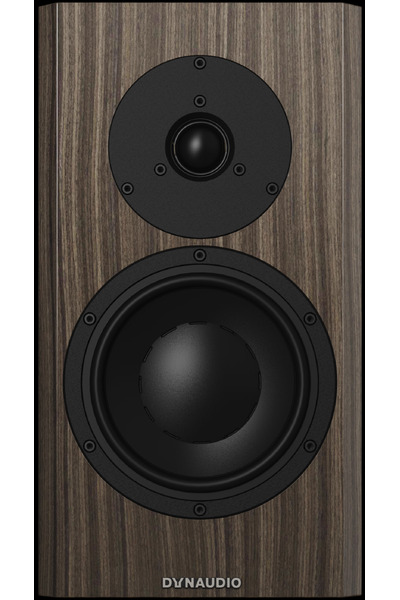

Dynaudio Special Forty is a passive bookshelves that cost around 3000 USD for a pair.

  • Quality of the measurement data is high.
  • Origin of the data is ErinsAudioCorner.
  • Format of the data is generated by a Klippel NFS .
  • -3dB (resp. -6db) point v.s. reference is at 54.2Hz (resp. 45.4Hz).
  • Reference level is normalised to -0.0dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 3.0dB over the same frequency range.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 4.91 and would be 6.92 with a perfect subwoofer.
      • Details: NBD: ON 0.463, LW 0.441, SP 0.414, PIR 0.393; SM: SP0.804, PIR0.676; LFQ 0.558, LFX 42Hz
    • Tonality (Preference) Score is 6.32 with an EQ and would be 8.13 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.363, LW 0.313, SP 0.316, PIR 0.258; SM: SP0.941, PIR0.917; LFQ 0.558, LFX 38Hz
  • Link to original Review: eac review. Links to other reviews: yt review .
  • Vendor specifications:
    • Sensitivity 86 dB
    • Impedance 6 Ohm
    • Size
      • Width 198mm
      • Height 360mm
      • Depth 307mm
    • Weight 8.1kg
Dynaudio Special Forty
AutomaticEQ (IIR)
Set preamp gain to: -2.7dB.
Type Freq Q Gain
PK 42.0 0.84 2.96
PK 102.0 1.08 -1.73
PK 382.0 2.11 1.32
PK 1288.0 3.0 2.05
PK 3068.0 2.57 -1.98
PK 5934.0 2.74 -1.61
PK 11476.0 1.83 -1.82
Download
This EQ optimise the Harman score and is a good start for far field listening like in your living room.
Improvement made by adding the above EQ
EQ
AutoEQ
Target v.s. EQ
Target v.s. EQ
Histogram of errors
On Axis (fullrange)
Listening Window (fullrange)
Predicted In-Room Response (fullrange)
;
