What we know about the measurement:

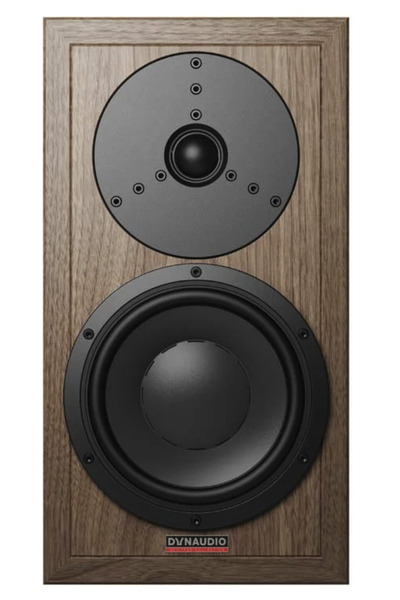

Dynaudio Heritage Special is a passive bookshelves speaker that cost around 7000USD for a pair .

  • Quality of the measurement data is high .
  • Origin of the data is ErinsAudioCorner.
  • Format of the data is generated by a Klippel NFS .
  • Sensitivity: 84.5dB (avg. 100Hz-1kHz for 2.83V estimated at 1m)
  • -3dB (resp. -6db) point v.s. reference is at 55.7Hz (resp. 45.4Hz).
  • Reference level is normalised to 0.4dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 3.4dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-70.0°, 70.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 4.28 and would be 6.3 with a perfect subwoofer.
      • Details: NBD: ON 0.562, LW 0.433, SP 0.483, PIR 0.457; SM: SP0.781, PIR0.597; LFQ 0.67, LFX 42Hz
    • Tonality (Preference) Score is 6.12 with an EQ and would be 7.86 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.412, LW 0.315, SP 0.4, PIR 0.328; SM: SP0.942, PIR0.943; LFQ 0.67, LFX 36Hz
  • Link to original Review: eac review. Links to other reviews: yt review .
  • Vendor specifications:
    • Sensitivity 85 dB
    • Impedance 4 Ohm
    • Size
      • Width 208mm
      • Height 385mm
      • Depth 320 mm)
    • Weight 11.0 kg
