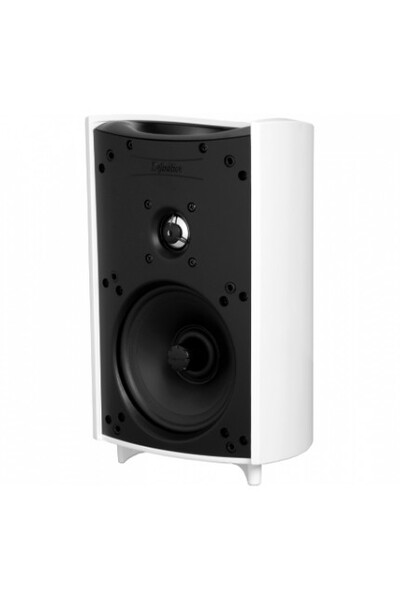

What we know about the measurement:
- Quality of the measurement data is
high.
-
Origin of the data is ASR.
-
Format of the data is
generated by a Klippel NFS
.
-
Sensitivity: 85.5dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
-
-3dB (resp. -6db) point v.s. reference is at 117.2Hz (resp. 90.8Hz).
-
Reference level is normalised to -0.0dB
computed over the frequency range [300.0Hz,
5000.0Hz].
-
Frequency deviation is 2.6dB over the same frequency range.
- Directivity
-
Horizontal directivity
is (-60.0°, 60.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
-
Vertical directivity
is (-40.0°, 10.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
- Tonality (Preference) Score
- Tonality (Preference) Score is 2.73
and would be 6.1 with a
perfect subwoofer.
- Details:
NBD: ON 0.562,
LW 0.427, SP
0.406, PIR
0.388; SM:
SP0.739,
PIR0.424; LFQ
0.403, LFX 87Hz
- Tonality (Preference) Score is 5.25
with an EQ and would be 7.86 with a
perfect subwoofer and the same EQ.
- Details:
NBD: ON 0.428,
LW 0.311, SP
0.326, PIR
0.284; SM:
SP0.928,
PIR0.906; LFQ 0.308, LFX 58Hz
- Link to Original review.
|
AutomaticEQ (IIR)
|
|
Set preamp gain to: -4.9dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
72.0 |
0.74 |
2.99 |
| 3 |
117.0 |
0.39 |
2.99 |
| 3 |
160.0 |
1.15 |
-3.29 |
| 3 |
2023.0 |
2.98 |
1.67 |
| 3 |
2094.0 |
0.25 |
-0.85 |
| 3 |
9648.0 |
2.01 |
-3.53 |
| 3 |
14633.0 |
2.99 |
-4.66 |
|
Download
|
These EQ optimise the Harman score and is a good start for far field listening like in your living room.
AutomaticEQ
Target v.s. EQ
|
flipflop@ASR (IIR)
|
|
Set preamp gain to: -2.3dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
420.0 |
9.0 |
0.5 |
| 3 |
480.0 |
5.0 |
-0.9 |
| 3 |
680.0 |
4.0 |
-1.0 |
| 3 |
864.0 |
4.996 |
-0.8 |
| 3 |
957.0 |
9.0 |
-0.9 |
| 3 |
1110.0 |
12.0 |
1.2 |
| 3 |
1339.0 |
5.0 |
-1.2 |
| 3 |
1580.0 |
18.0 |
-0.7 |
| 3 |
2001.0 |
5.0 |
1.1 |
| 3 |
2390.0 |
30.0 |
-0.6 |
| 3 |
3669.0 |
1.528 |
-2.0 |
| 3 |
4940.0 |
2.429 |
5.0 |
| 3 |
4996.0 |
5.0 |
-2.4 |
| 3 |
6000.0 |
12.0 |
0.9 |
| 3 |
6700.0 |
15.0 |
-1.3 |
| 3 |
7600.0 |
12.0 |
0.7 |
| 3 |
9283.0 |
1.0 |
-2.2 |
| 3 |
10860.0 |
8.0 |
-0.4 |
| 3 |
12456.0 |
5.0 |
5.0 |
| 3 |
13955.0 |
3.842 |
-4.9 |
|
Download
|
These EQ is designed by ASR member flipflop.
|
Graphic EQ 15 bands
|
|
Set preamp gain to: -0.7dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
25.0 |
2.14 |
0.5 |
| 3 |
40.0 |
2.14 |
0.5 |
| 3 |
63.0 |
2.14 |
0.5 |
| 3 |
100.0 |
2.14 |
0.5 |
| 3 |
160.0 |
2.14 |
0.25 |
| 3 |
250.0 |
2.14 |
0.25 |
| 3 |
400.0 |
2.14 |
0.25 |
| 3 |
630.0 |
2.14 |
0.0 |
| 3 |
1000.0 |
2.14 |
0.0 |
| 3 |
1600.0 |
2.14 |
0.0 |
| 3 |
2500.0 |
2.14 |
0.0 |
| 3 |
4000.0 |
2.14 |
0.0 |
| 3 |
6300.0 |
2.14 |
0.0 |
| 3 |
10000.0 |
2.14 |
-0.5 |
| 3 |
16000.0 |
2.14 |
0.0 |
|
Download
|
These EQ is designed for a 15 bands graphical EQ.
|
Graphic EQ 31 bands
|
|
Set preamp gain to: -0.8dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
20.0 |
4.32 |
0.0 |
| 3 |
25.0 |
4.32 |
0.5 |
| 3 |
31.0 |
4.32 |
0.5 |
| 3 |
40.0 |
4.32 |
0.5 |
| 3 |
50.0 |
4.32 |
0.5 |
| 3 |
63.0 |
4.32 |
0.5 |
| 3 |
80.0 |
4.32 |
0.5 |
| 3 |
100.0 |
4.32 |
0.5 |
| 3 |
125.0 |
4.32 |
0.5 |
| 3 |
160.0 |
4.32 |
0.25 |
| 3 |
200.0 |
4.32 |
0.0 |
| 3 |
250.0 |
4.32 |
0.25 |
| 3 |
315.0 |
4.32 |
0.25 |
| 3 |
400.0 |
4.32 |
0.25 |
| 3 |
500.0 |
4.32 |
-0.25 |
| 3 |
630.0 |
4.32 |
0.0 |
| 3 |
800.0 |
4.32 |
-0.25 |
| 3 |
1000.0 |
4.32 |
-0.25 |
| 3 |
1250.0 |
4.32 |
-0.25 |
| 3 |
1600.0 |
4.32 |
0.0 |
| 3 |
2000.0 |
4.32 |
0.25 |
| 3 |
2500.0 |
4.32 |
0.0 |
| 3 |
3150.0 |
4.32 |
-0.25 |
| 3 |
4000.0 |
4.32 |
0.0 |
| 3 |
5000.0 |
4.32 |
0.25 |
| 3 |
6300.0 |
4.32 |
0.0 |
| 3 |
8000.0 |
4.32 |
-0.5 |
| 3 |
10000.0 |
4.32 |
-0.5 |
| 3 |
12000.0 |
4.32 |
0.0 |
| 3 |
16000.0 |
4.32 |
-0.25 |
| 3 |
20000.0 |
4.32 |
0.0 |
|
Download
|
These EQ is designed for a 31 bands graphical EQ.
Comparison betweens various EQs
Improvements made by EQ
|
