What we know about the measurement:

Definitive Technology BP9020 is a passive floorstanders that cost around 500 USD for a pair.

  • Quality of the measurement data is high.
  • Origin of the data is ErinsAudioCorner.
  • Format of the data is generated by a Klippel NFS .
  • Sensitivity: 87.9dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 35.9Hz (resp. 32.2Hz).
  • Reference level is normalised to 0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 3.2dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-60.0°, 60.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 4.79 and would be 6.24 with a perfect subwoofer.
      • Details: NBD: ON 0.539, LW 0.475, SP 0.429, PIR 0.39; SM: SP0.805, PIR0.46; LFQ 1.135, LFX 31Hz
    • Tonality (Preference) Score is 6.52 with an EQ and would be 7.74 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.46, LW 0.374, SP 0.373, PIR 0.316; SM: SP0.943, PIR0.928; LFQ 1.135, LFX 27Hz
  • Link to original Review: eac review. Links to other reviews: dt review .
  • Vendor specifications:
    • Sensitivity 92 dB
    • Impedance 8 Ohm
    • Size
      • Width 330mm
      • Height 902mm
      • Depth 279 mm)
    • Weight 13.61 kg

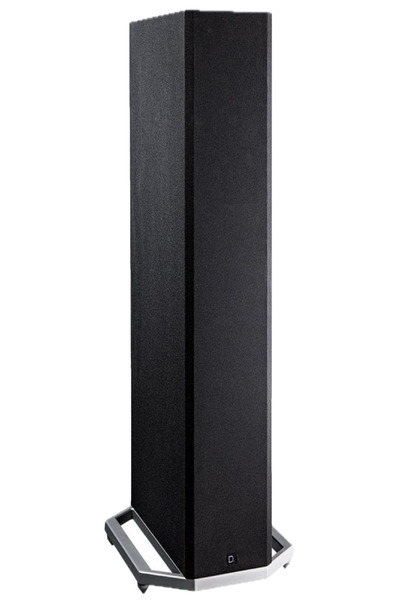

Definitive Technology BP9020
AutomaticEQ (IIR)
Set preamp gain to: -2.6dB.
Type Freq Q Gain
3 28.0 1.93 2.98
3 44.0 2.93 -3.18
3 166.0 1.3 2.7
3 243.0 0.8 -3.4
3 395.0 1.8 2.95
3 6818.0 1.15 -3.69
3 14134.0 1.34 -4.52
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Definitive Technology BP9020 filters_auto_eq

AutomaticEQ

Definitive Technology BP9020 filters_eq_full

Target v.s. EQ

Definitive Technology BP9020
AutomaticEQ LW (IIR)
Set preamp gain to: -0.8dB.
Type Freq Q Gain
3 46.0 2.42 -2.42
3 243.0 2.86 -2.82
3 739.0 3.0 -2.68
3 942.0 2.76 -1.45
3 976.0 0.26 1.32
3 6144.0 1.0 -2.57
3 13652.0 1.67 -3.14
Download

These EQ optimise for a flat listening window and is a good start for near field listening like on your desk.

Definitive Technology BP9020: comparison between EQs
Definitive Technology BP9020

Comparison betweens various EQs

Definitive Technology BP9020

Improvements made by EQ

Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
;
