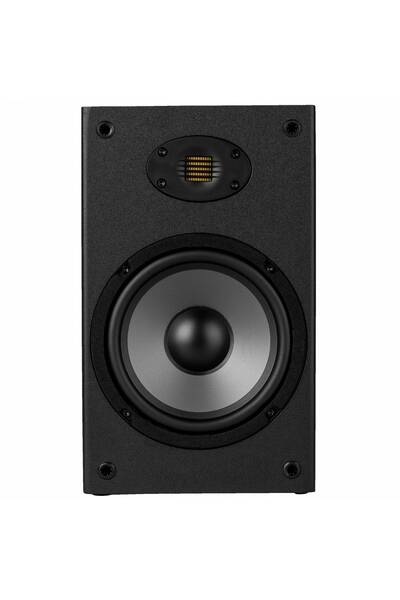

What we know about the measurement:
- Quality of the measurement data is
high.
-
Origin of the data is ASR.
-
Format of the data is
generated by a Klippel NFS
.
-
Sensitivity: 86.2dB (avg. 100Hz-1kHz for 2.83V estimated at 1m)
-
-3dB (resp. -6db) point v.s. reference is at 98.1Hz (resp. 79.8Hz).
-
Reference level is normalised to 0.0dB
computed over the frequency range [300.0Hz,
5000.0Hz].
-
Frequency deviation is 8.2dB over the same frequency range.
- Directivity
-
Horizontal directivity
is (-30.0°, 40.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
-
Vertical directivity
is (-50.0°, 40.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
- Tonality (Preference) Score
- Tonality (Preference) Score is 1.46
and would be 4.58 with a
perfect subwoofer.
- Details:
NBD: ON 0.894,
LW 0.83, SP
0.6, PIR
0.651; SM:
SP0.766,
PIR0.463; LFQ
0.476, LFX 76Hz
- Tonality (Preference) Score is 4.24
with an EQ and would be 6.96 with a
perfect subwoofer and the same EQ.
- Details:
NBD: ON 0.616,
LW 0.562, SP
0.417, PIR
0.413; SM:
SP0.925,
PIR0.886; LFQ 0.412, LFX 62Hz
- Link to Original review.
|
AutomaticEQ (IIR)
|
|
Set preamp gain to: -3.0dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
67.0 |
0.79 |
3.0 |
| 3 |
321.0 |
2.78 |
2.56 |
| 3 |
1244.0 |
2.99 |
-2.32 |
| 3 |
3779.0 |
2.99 |
-8.98 |
| 3 |
4495.0 |
0.91 |
2.92 |
| 3 |
11476.0 |
1.6 |
-7.23 |
| 3 |
16239.0 |
0.26 |
2.92 |
|
Download
|
These EQ optimise the Harman score and is a good start for far field listening like in your living room.
AutomaticEQ
Target v.s. EQ
|
flipflop@ASR (IIR)
|
|
Set preamp gain to: -5.2dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
380.0 |
10.0 |
-1.4 |
| 3 |
450.0 |
10.0 |
-2.6 |
| 3 |
610.0 |
3.0 |
-2.5 |
| 3 |
770.0 |
8.0 |
-0.8 |
| 3 |
953.0 |
5.0 |
-4.7 |
| 3 |
1135.0 |
5.0 |
5.0 |
| 3 |
1205.0 |
4.988 |
-7.5 |
| 3 |
1861.0 |
1.147 |
-3.6 |
| 3 |
2566.0 |
1.0 |
5.0 |
| 3 |
2874.0 |
2.944 |
-7.5 |
| 3 |
3178.0 |
4.895 |
3.6 |
| 3 |
3721.0 |
5.0 |
-8.4 |
| 3 |
5760.0 |
17.0 |
-2.0 |
| 3 |
6450.0 |
18.0 |
2.5 |
| 3 |
7186.0 |
1.0 |
3.4 |
| 3 |
7820.0 |
10.0 |
1.8 |
| 3 |
8530.0 |
12.0 |
-2.5 |
| 3 |
11177.0 |
1.914 |
-5.2 |
| 3 |
12480.0 |
10.0 |
-1.2 |
| 3 |
16400.0 |
4.0 |
4.3 |
|
Download
|
These EQ is designed by ASR member flipflop.
|
Graphic EQ 15 bands
|
|
Set preamp gain to: -0.7dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
25.0 |
2.14 |
0.5 |
| 3 |
40.0 |
2.14 |
0.5 |
| 3 |
63.0 |
2.14 |
0.5 |
| 3 |
100.0 |
2.14 |
0.5 |
| 3 |
160.0 |
2.14 |
0.0 |
| 3 |
250.0 |
2.14 |
0.25 |
| 3 |
400.0 |
2.14 |
0.0 |
| 3 |
630.0 |
2.14 |
0.0 |
| 3 |
1000.0 |
2.14 |
-0.25 |
| 3 |
1600.0 |
2.14 |
0.0 |
| 3 |
2500.0 |
2.14 |
0.0 |
| 3 |
4000.0 |
2.14 |
-0.5 |
| 3 |
6300.0 |
2.14 |
0.25 |
| 3 |
10000.0 |
2.14 |
-0.25 |
| 3 |
16000.0 |
2.14 |
0.5 |
|
Download
|
These EQ is designed for a 15 bands graphical EQ.
|
Graphic EQ 31 bands
|
|
Set preamp gain to: -0.8dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
20.0 |
4.32 |
0.0 |
| 3 |
25.0 |
4.32 |
0.5 |
| 3 |
31.0 |
4.32 |
0.5 |
| 3 |
40.0 |
4.32 |
0.5 |
| 3 |
50.0 |
4.32 |
0.5 |
| 3 |
63.0 |
4.32 |
0.5 |
| 3 |
80.0 |
4.32 |
0.5 |
| 3 |
100.0 |
4.32 |
0.5 |
| 3 |
125.0 |
4.32 |
0.25 |
| 3 |
160.0 |
4.32 |
0.0 |
| 3 |
200.0 |
4.32 |
0.25 |
| 3 |
250.0 |
4.32 |
0.25 |
| 3 |
315.0 |
4.32 |
0.25 |
| 3 |
400.0 |
4.32 |
0.25 |
| 3 |
500.0 |
4.32 |
0.0 |
| 3 |
630.0 |
4.32 |
0.0 |
| 3 |
800.0 |
4.32 |
0.0 |
| 3 |
1000.0 |
4.32 |
0.0 |
| 3 |
1250.0 |
4.32 |
-0.25 |
| 3 |
1600.0 |
4.32 |
0.0 |
| 3 |
2000.0 |
4.32 |
0.0 |
| 3 |
2500.0 |
4.32 |
0.0 |
| 3 |
3150.0 |
4.32 |
0.0 |
| 3 |
4000.0 |
4.32 |
-0.5 |
| 3 |
5000.0 |
4.32 |
0.25 |
| 3 |
6300.0 |
4.32 |
0.5 |
| 3 |
8000.0 |
4.32 |
0.25 |
| 3 |
10000.0 |
4.32 |
0.0 |
| 3 |
12000.0 |
4.32 |
-0.5 |
| 3 |
16000.0 |
4.32 |
0.5 |
| 3 |
20000.0 |
4.32 |
0.0 |
|
Download
|
These EQ is designed for a 31 bands graphical EQ.
Comparison betweens various EQs
Improvements made by EQ
|
