- Quality of the measurement data is medium.
- Origin of the data is Danley.
- Format of the data is a GLL file .
-
Sensitivity:
- Measured: 104.2 dB (avg. 300Hz-3kHz for 2.83V estimated at 1m).
- Measured: 84.2 dB computed at the measurement distance (10.0m) over the same frequency range.
- -3dB (resp. -6db) point v.s. reference is at 150.0Hz (resp. 125.0Hz).
- Reference level is normalised to 0.0dB computed over the frequency range [300.0Hz, 5000.0Hz].
- Frequency deviation is 6.3dB over the same frequency range.
- Tonality (Preference) Score
- Note: The tonality (Preference) score does not make sense for toursound speakers. Don't give too much credits to the value.
- Tonality (Preference) Score is -1.61
and would be 2.52 with a
perfect subwoofer.
- Details: NBD: ON 1.076, LW 0.873, SP 0.915, PIR 0.865; SM: SP0.351, PIR0.047; LFQ 3.002, LFX 132Hz
- Tonality (Preference) Score is 2.01
with an EQ and would be 5.57 with a
perfect subwoofer and the same EQ.
- Details: NBD: ON 0.82, LW 0.585, SP 0.668, PIR 0.557; SM: SP0.829, PIR0.691; LFQ 3.002, LFX 97Hz

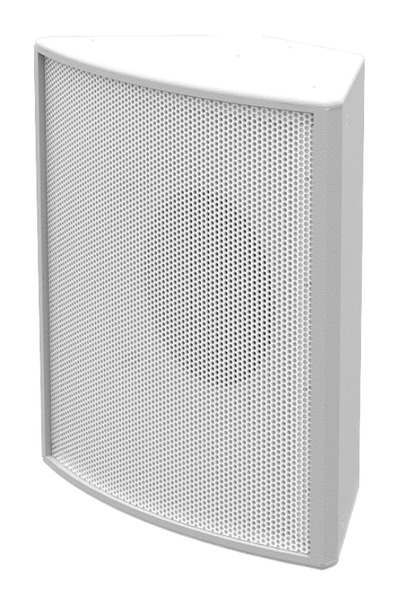

Danley SM-80 is a passive toursound
| AutomaticEQ (IIR) | |||
| Set preamp gain to: -4.7dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 98.0 | 1.34 | 3.0 |
| PK | 197.0 | 1.82 | -3.65 |
| PK | 204.0 | 0.49 | 2.98 |
| PK | 332.0 | 3.0 | 3.0 |
| PK | 1046.0 | 3.0 | -2.29 |
| PK | 1954.0 | 2.38 | -4.22 |
| PK | 7834.0 | 3.0 | -4.97 |
| Download | |||
This EQ optimise the Harman score and is a good start for far field listening like in your living room.
| Graphic EQ 15 bands | |||
| Set preamp gain to: -1.3dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 25.0 | 2.14 | 0.75 |
| PK | 40.0 | 2.14 | 0.75 |
| PK | 63.0 | 2.14 | 0.75 |
| PK | 100.0 | 2.14 | 0.75 |
| PK | 160.0 | 2.14 | 0.75 |
| PK | 250.0 | 2.14 | 0.75 |
| PK | 400.0 | 2.14 | 1.0 |
| PK | 630.0 | 2.14 | 0.5 |
| PK | 1000.0 | 2.14 | 0.25 |
| PK | 1600.0 | 2.14 | 0.0 |
| PK | 2500.0 | 2.14 | -0.5 |
| PK | 4000.0 | 2.14 | 0.5 |
| PK | 6300.0 | 2.14 | 0.5 |
| PK | 10000.0 | 2.14 | 0.75 |
| PK | 16000.0 | 2.14 | 1.25 |
| Download | |||
This EQ is designed for a 15 bands graphical EQ.
| Graphic EQ 31 bands | |||
| Set preamp gain to: -0.9dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 20.0 | 4.32 | 0.0 |
| PK | 25.0 | 4.32 | 0.5 |
| PK | 31.0 | 4.32 | 0.5 |
| PK | 40.0 | 4.32 | 0.5 |
| PK | 50.0 | 4.32 | 0.5 |
| PK | 63.0 | 4.32 | 0.5 |
| PK | 80.0 | 4.32 | 0.5 |
| PK | 100.0 | 4.32 | 0.5 |
| PK | 125.0 | 4.32 | 0.5 |
| PK | 160.0 | 4.32 | 0.25 |
| PK | 200.0 | 4.32 | 0.0 |
| PK | 250.0 | 4.32 | 0.25 |
| PK | 315.0 | 4.32 | 0.75 |
| PK | 400.0 | 4.32 | 0.25 |
| PK | 500.0 | 4.32 | 0.0 |
| PK | 630.0 | 4.32 | -0.25 |
| PK | 800.0 | 4.32 | 0.0 |
| PK | 1000.0 | 4.32 | -0.25 |
| PK | 1250.0 | 4.32 | 0.25 |
| PK | 1600.0 | 4.32 | -0.25 |
| PK | 2000.0 | 4.32 | -0.5 |
| PK | 2500.0 | 4.32 | -0.5 |
| PK | 3150.0 | 4.32 | 0.0 |
| PK | 4000.0 | 4.32 | 0.0 |
| PK | 5000.0 | 4.32 | 0.25 |
| PK | 6300.0 | 4.32 | 0.5 |
| PK | 8000.0 | 4.32 | -0.25 |
| PK | 10000.0 | 4.32 | 0.25 |
| PK | 12000.0 | 4.32 | 0.5 |
| PK | 16000.0 | 4.32 | 0.5 |
| PK | 20000.0 | 4.32 | 0.0 |
| Download | |||
