- Quality of the measurement data is medium.
- Origin of the data is Danley.
- Format of the data is a GLL file .
-
Sensitivity:
- Measured: 113.6 dB (avg. 300Hz-3kHz for 2.83V estimated at 1m).
- Measured: 93.6 dB computed at the measurement distance (10.0m) over the same frequency range.
- -3dB (resp. -6db) point v.s. reference is at 50.0Hz (resp. 38.7Hz).
- Reference level is normalised to -0.2dB computed over the frequency range [300.0Hz, 5000.0Hz].
- Frequency deviation is 2.7dB over the same frequency range.
- Tonality (Preference) Score
- Note: The tonality (Preference) score does not make sense for toursound speakers. Don't give too much credits to the value.
- Tonality (Preference) Score is 2.76
and would be 4.99 with a
perfect subwoofer.
- Details: NBD: ON 0.452, LW 0.762, SP 0.854, PIR 0.777; SM: SP0.535, PIR0.327; LFQ 3.46, LFX 47Hz
- Tonality (Preference) Score is 5.45
with an EQ and would be 7.12 with a
perfect subwoofer and the same EQ.
- Details: NBD: ON 0.331, LW 0.497, SP 0.683, PIR 0.553; SM: SP0.857, PIR0.829; LFQ 3.46, LFX 35Hz

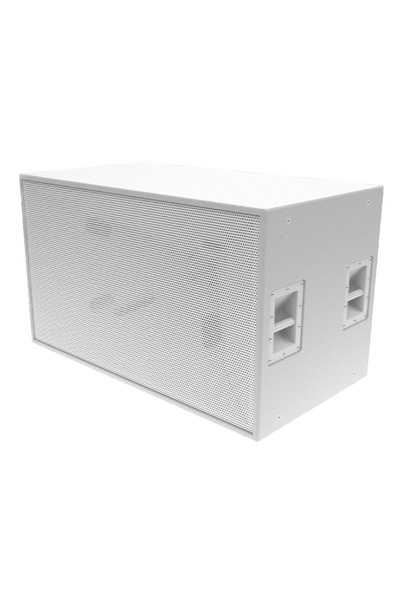

Danley SH-96-HO is a passive toursound that cost around 8000 USD for a pair.
| AutomaticEQ (IIR) | |||
| Set preamp gain to: -2.2dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 50.0 | 0.35 | 2.24 |
| PK | 271.0 | 1.98 | -2.24 |
| PK | 378.0 | 1.92 | 2.79 |
| PK | 764.0 | 2.83 | -1.41 |
| PK | 1491.0 | 2.74 | 2.07 |
| PK | 1822.0 | 1.88 | -1.68 |
| PK | 4345.0 | 2.4 | -2.47 |
| PK | 7417.0 | 2.71 | -2.84 |
| PK | 12662.0 | 0.78 | -2.24 |
| Download | |||
This EQ optimise the Harman score and is a good start for far field listening like in your living room.
| Graphic EQ 15 bands | |||
| Set preamp gain to: -1.0dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 25.0 | 2.14 | 0.75 |
| PK | 40.0 | 2.14 | 0.75 |
| PK | 63.0 | 2.14 | 0.5 |
| PK | 100.0 | 2.14 | 0.25 |
| PK | 160.0 | 2.14 | 0.25 |
| PK | 250.0 | 2.14 | -0.25 |
| PK | 400.0 | 2.14 | 0.5 |
| PK | 630.0 | 2.14 | -0.25 |
| PK | 1000.0 | 2.14 | -0.25 |
| PK | 1600.0 | 2.14 | 0.25 |
| PK | 2500.0 | 2.14 | 0.25 |
| PK | 4000.0 | 2.14 | -0.25 |
| PK | 6300.0 | 2.14 | 0.5 |
| PK | 10000.0 | 2.14 | 0.0 |
| PK | 16000.0 | 2.14 | 0.0 |
| Download | |||
This EQ is designed for a 15 bands graphical EQ.
| Graphic EQ 31 bands | |||
| Set preamp gain to: -1.1dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 20.0 | 4.32 | 0.0 |
| PK | 25.0 | 4.32 | 0.75 |
| PK | 31.0 | 4.32 | 0.75 |
| PK | 40.0 | 4.32 | 0.75 |
| PK | 50.0 | 4.32 | 0.75 |
| PK | 63.0 | 4.32 | 0.5 |
| PK | 80.0 | 4.32 | 0.25 |
| PK | 100.0 | 4.32 | 0.25 |
| PK | 125.0 | 4.32 | 0.25 |
| PK | 160.0 | 4.32 | 0.25 |
| PK | 200.0 | 4.32 | 0.0 |
| PK | 250.0 | 4.32 | -0.25 |
| PK | 315.0 | 4.32 | 0.0 |
| PK | 400.0 | 4.32 | 0.25 |
| PK | 500.0 | 4.32 | 0.0 |
| PK | 630.0 | 4.32 | -0.25 |
| PK | 800.0 | 4.32 | -0.5 |
| PK | 1000.0 | 4.32 | -0.25 |
| PK | 1250.0 | 4.32 | 0.0 |
| PK | 1600.0 | 4.32 | 0.25 |
| PK | 2000.0 | 4.32 | -0.25 |
| PK | 2500.0 | 4.32 | 0.0 |
| PK | 3150.0 | 4.32 | 0.25 |
| PK | 4000.0 | 4.32 | 0.0 |
| PK | 5000.0 | 4.32 | -0.25 |
| PK | 6300.0 | 4.32 | 0.5 |
| PK | 8000.0 | 4.32 | -0.25 |
| PK | 10000.0 | 4.32 | -0.25 |
| PK | 12000.0 | 4.32 | 0.0 |
| PK | 16000.0 | 4.32 | 0.0 |
| PK | 20000.0 | 4.32 | 0.0 |
| Download | |||
