What we know about the measurement:

Dali Zensor 1 is a passive bookshelves that cost around 100 USD for a pair.

  • Quality of the measurement data is low.
  • Origin of the data is Misc.
  • Format of the data is a set of 36 horizontal and 36 vertical measurements .
  • Sensitivity: 72.1dB (avg. 100Hz-1kHz for 2.83V estimated at 1m)
  • -3dB (resp. -6db) point v.s. reference is at 86.0Hz (resp. 57.4Hz).
  • Reference level is normalised to -0.3dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 1.9dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-70.0°, 70.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 4.14 and would be 6.58 with a perfect subwoofer.
      • Details: NBD: ON 0.409, LW 0.335, SP 0.27, PIR 0.29; SM: SP0.811, PIR0.339; LFQ 0.388, LFX 53Hz
    • Tonality (Preference) Score is 6.5 with an EQ and would be 8.67 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.256, LW 0.201, SP 0.268, PIR 0.2; SM: SP0.96, PIR0.957; LFQ 0.457, LFX 46Hz
  • Link to original Review: asr review. .
  • Vendor specifications:
    • Sensitivity 86 dB
    • Impedance 6 Ohm
    • SPL
      • peak: 106 dB
    • Size
      • Width 162mm
      • Height 274mm
      • Depth 220 mm)
    • Weight 4.2 kg

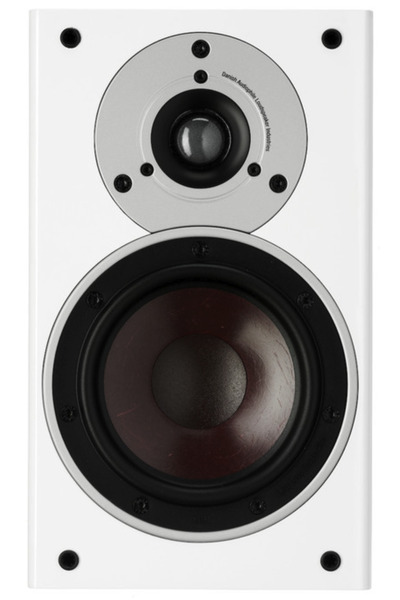

Dali Zensor 1
AutomaticEQ (IIR)
Set preamp gain to: -2.8dB.
Type Freq Q Gain
3 67.0 0.51 2.99
3 160.0 1.33 -1.83
3 600.0 1.4 1.58
3 942.0 2.98 -2.12
3 3068.0 2.93 1.2
3 7834.0 3.0 2.98
3 11476.0 0.61 -5.77
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.
