What we know about the measurement:

DIYSG HTM-12v2 is a passive bookshelves that cost around 600 USD for a pair.

  • Quality of the measurement data is high.
  • Origin of the data is ErinsAudioCorner.
  • Format of the data is generated by a Klippel NFS .
  • Sensitivity: 90.6dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 67.4Hz (resp. 58.6Hz).
  • Reference level is normalised to -0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 3.5dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-50.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 3.12 and would be 5.73 with a perfect subwoofer.
      • Details: NBD: ON 0.589, LW 0.528, SP 0.567, PIR 0.552; SM: SP0.794, PIR0.504; LFQ 2.223, LFX 58Hz
    • Tonality (Preference) Score is 5.02 with an EQ and would be 7.38 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.461, LW 0.412, SP 0.412, PIR 0.394; SM: SP0.949, PIR0.875; LFQ 2.223, LFX 51Hz
  • Link to original Review: eac review. Links to other reviews: asr review .

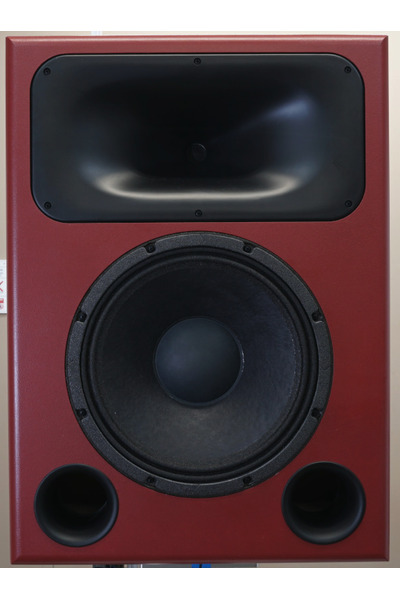

DIYSG HTM-12v2
AutomaticEQ (IIR)
Set preamp gain to: -2.8dB.
Type Freq Q Gain
5 67.0 0.83 2.78
3 187.0 2.76 2.52
3 366.0 2.99 -1.81
3 462.0 2.92 2.97
3 2153.0 2.91 -0.72
3 3930.0 2.98 1.36
3 5870.0 2.98 2.79
3 6937.0 2.78 -1.99
3 12246.0 1.17 -2.73
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

DIYSG HTM-12v2 filters_auto_eq

AutomaticEQ

DIYSG HTM-12v2 filters_eq_full

Target v.s. EQ

DIYSG HTM-12v2
Graphic EQ 15 bands
Set preamp gain to: -1.0dB.
Type Freq Q Gain
3 25.0 2.14 0.75
3 40.0 2.14 0.75
3 63.0 2.14 0.75
3 100.0 2.14 -0.25
3 160.0 2.14 0.75
3 250.0 2.14 0.25
3 400.0 2.14 0.5
3 630.0 2.14 0.25
3 1000.0 2.14 0.0
3 1600.0 2.14 0.25
3 2500.0 2.14 0.25
3 4000.0 2.14 0.5
3 6300.0 2.14 0.25
3 10000.0 2.14 0.0
3 16000.0 2.14 0.0
Download

These EQ is designed for a 15 bands graphical EQ.

DIYSG HTM-12v2
Graphic EQ 31 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.5
3 31.0 4.32 0.5
3 40.0 4.32 0.5
3 50.0 4.32 0.5
3 63.0 4.32 0.5
3 80.0 4.32 0.0
3 100.0 4.32 -0.25
3 125.0 4.32 0.0
3 160.0 4.32 0.5
3 200.0 4.32 0.25
3 250.0 4.32 0.0
3 315.0 4.32 -0.25
3 400.0 4.32 0.0
3 500.0 4.32 0.5
3 630.0 4.32 0.25
3 800.0 4.32 0.0
3 1000.0 4.32 -0.25
3 1250.0 4.32 0.0
3 1600.0 4.32 0.0
3 2000.0 4.32 0.0
3 2500.0 4.32 0.0
3 3150.0 4.32 0.0
3 4000.0 4.32 0.5
3 5000.0 4.32 0.0
3 6300.0 4.32 0.25
3 8000.0 4.32 0.0
3 10000.0 4.32 -0.25
3 12000.0 4.32 -0.25
3 16000.0 4.32 0.0
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

DIYSG HTM-12v2: comparison between EQs
DIYSG HTM-12v2

Comparison betweens various EQs
