What we know about the measurement:

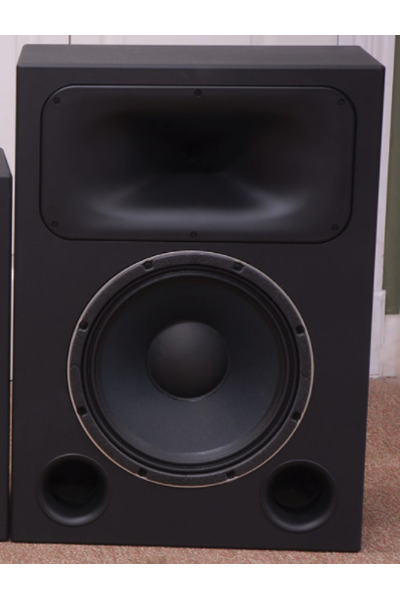

DIYSG HT-12 is a passive bookshelves that cost around 330 USD for a pair.

  • Quality of the measurement data is low.
  • Origin of the data is Misc.
  • Format of the data is a set of 36 horizontal and 36 vertical measurements .
  • Sensitivity: 94.9dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 74.4Hz (resp. 61.7Hz).
  • Reference level is normalised to -0.4dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 3.2dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-40.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 4.25 and would be 7.07 with a perfect subwoofer.
      • Details: NBD: ON 0.451, LW 0.432, SP 0.534, PIR 0.465; SM: SP0.885, PIR0.822; LFQ 2.44, LFX 65Hz
    • Tonality (Preference) Score is 5.65 with an EQ and would be 8.12 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.323, LW 0.26, SP 0.36, PIR 0.287; SM: SP0.932, PIR0.908; LFQ 2.44, LFX 54Hz
  • Link to original Review: diysg review. Links to other reviews: diy review .
DIYSG HT-12
AutomaticEQ (IIR)
Set preamp gain to: -3.0dB.
Type Freq Q Gain
3 52.0 2.15 3.0
3 252.0 2.99 -1.89
3 942.0 1.93 -1.39
3 3525.0 1.42 2.93
3 4989.0 2.14 -3.61
3 6585.0 1.13 2.5
3 11085.0 1.57 -2.21
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

DIYSG HT-12 filters_auto_eq

AutomaticEQ

DIYSG HT-12 filters_eq_full

Target v.s. EQ

DIYSG HT-12
Graphic EQ 15 bands
Set preamp gain to: -1.0dB.
Type Freq Q Gain
3 25.0 2.14 0.75
3 40.0 2.14 0.75
3 63.0 2.14 0.75
3 100.0 2.14 -0.25
3 160.0 2.14 0.0
3 250.0 2.14 -0.25
3 400.0 2.14 0.0
3 630.0 2.14 0.25
3 1000.0 2.14 -0.25
3 1600.0 2.14 0.25
3 2500.0 2.14 0.5
3 4000.0 2.14 0.75
3 6300.0 2.14 0.75
3 10000.0 2.14 0.25
3 16000.0 2.14 0.75
Download

These EQ is designed for a 15 bands graphical EQ.

DIYSG HT-12
Graphic EQ 31 bands
Set preamp gain to: -1.0dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.5
3 31.0 4.32 0.5
3 40.0 4.32 0.5
3 50.0 4.32 0.5
3 63.0 4.32 0.5
3 80.0 4.32 0.5
3 100.0 4.32 0.0
3 125.0 4.32 0.0
3 160.0 4.32 0.25
3 200.0 4.32 0.25
3 250.0 4.32 0.0
3 315.0 4.32 0.25
3 400.0 4.32 0.0
3 500.0 4.32 0.0
3 630.0 4.32 0.25
3 800.0 4.32 0.0
3 1000.0 4.32 0.0
3 1250.0 4.32 0.25
3 1600.0 4.32 0.25
3 2000.0 4.32 0.5
3 2500.0 4.32 0.5
3 3150.0 4.32 0.75
3 4000.0 4.32 0.5
3 5000.0 4.32 0.25
3 6300.0 4.32 0.5
3 8000.0 4.32 0.5
3 10000.0 4.32 0.0
3 12000.0 4.32 0.0
3 16000.0 4.32 0.25
3 20000.0 4.32 0.0
Download
