What we know about the measurement:

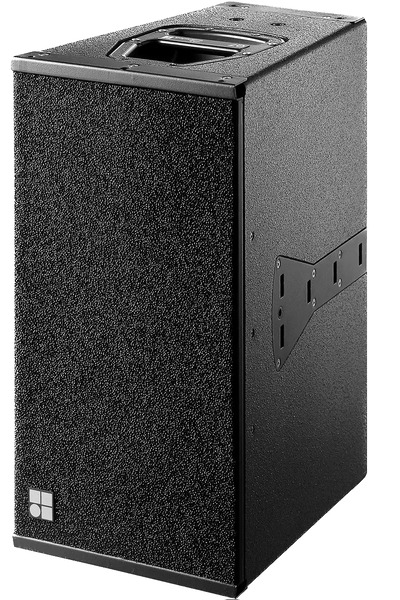

DB Audiotechnik Q10 is a passive liveportable

  • Quality of the measurement data is medium.
  • Origin of the data is DB Audiotechnik.
  • Format of the data is a GLL file .
  • Sensitivity:
    • Sensitivity: 100.9dB (avg. 100Hz-1kHz for 2.83V estimated at 1m).
    • Sensitivity: 80.9dB computed at the measurement distance (10.0m) over the same frequency range.
  • -3dB (resp. -6db) point v.s. reference is at 90.0Hz (resp. 65.0Hz).
  • Reference level is normalised to 0.0dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 2.5dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-50.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 2.53 and would be 5.4 with a perfect subwoofer.
      • Details: NBD: ON 0.619, LW 0.675, SP 0.725, PIR 0.679; SM: SP0.744, PIR0.557; LFQ 1.603, LFX 67Hz
    • Tonality (Preference) Score is 3.87 with an EQ and would be 6.52 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.529, LW 0.561, SP 0.67, PIR 0.602; SM: SP0.891, PIR0.846; LFQ 1.603, LFX 60Hz
  • Note: data computed at 2 meters..
  • Vendor specifications:
    • Dispersion: 110° horizontal and 40° vertical.
    • SPL
      • peak: 137 dB
    • Size
      • Width 308mm
      • Height 580mm
      • Depth 410mm
    • Weight 22.0kg
DB Audiotechnik Q10
AutomaticEQ (IIR)
Set preamp gain to: -3.0dB.
Type Freq Q Gain
PK 62.0 1.42 2.93
PK 130.0 2.85 0.65
PK 260.0 3.0 1.1
PK 560.0 2.99 -3.01
PK 643.0 3.0 3.0
PK 3068.0 2.97 -1.16
PK 9319.0 0.85 -3.94
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

DB Audiotechnik Q10 filters_auto_eq

AutomaticEQ

DB Audiotechnik Q10 filters_eq_full

Target v.s. EQ

DB Audiotechnik Q10
Graphic EQ 15 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
PK 25.0 2.14 0.25
PK 40.0 2.14 0.25
PK 63.0 2.14 0.25
PK 100.0 2.14 0.25
PK 160.0 2.14 0.25
PK 250.0 2.14 0.25
PK 400.0 2.14 0.25
PK 630.0 2.14 0.5
PK 1000.0 2.14 0.5
PK 1600.0 2.14 0.25
PK 2500.0 2.14 0.0
PK 4000.0 2.14 0.25
PK 6300.0 2.14 0.25
PK 10000.0 2.14 0.0
PK 16000.0 2.14 -0.25
Download

These EQ is designed for a 15 bands graphical EQ.

DB Audiotechnik Q10
Graphic EQ 31 bands
Set preamp gain to: -0.8dB.
Type Freq Q Gain
PK 20.0 4.32 0.0
PK 25.0 4.32 0.5
PK 31.0 4.32 0.5
PK 40.0 4.32 0.5
PK 50.0 4.32 0.5
PK 63.0 4.32 0.5
PK 80.0 4.32 0.5
PK 100.0 4.32 0.25
PK 125.0 4.32 0.25
PK 160.0 4.32 0.25
PK 200.0 4.32 0.0
PK 250.0 4.32 0.25
PK 315.0 4.32 0.0
PK 400.0 4.32 0.0
PK 500.0 4.32 -0.25
PK 630.0 4.32 0.25
PK 800.0 4.32 0.0
PK 1000.0 4.32 0.25
PK 1250.0 4.32 0.25
PK 1600.0 4.32 0.0
PK 2000.0 4.32 0.25
PK 2500.0 4.32 -0.25
PK 3150.0 4.32 -0.25
PK 4000.0 4.32 0.25
PK 5000.0 4.32 0.0
PK 6300.0 4.32 0.25
PK 8000.0 4.32 -0.5
PK 10000.0 4.32 0.0
PK 12000.0 4.32 0.0
PK 16000.0 4.32 -0.25
PK 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.
