What we know about the measurement:
- Quality of the measurement data is
medium.
-

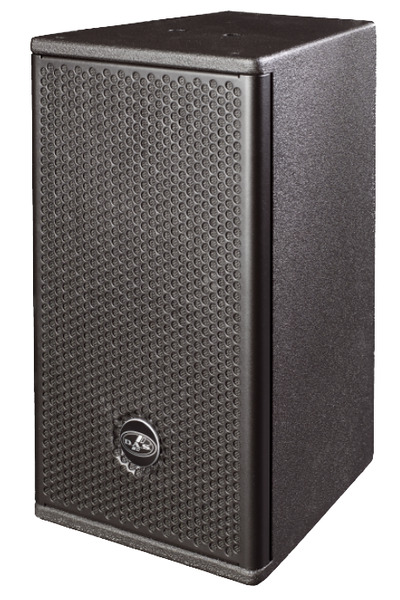

Origin of the data is DAS Audio.
-
Format of the data is
a GLL file
.
-
-3dB (resp. -6db) point v.s. reference is at 75.0Hz (resp. 71.0Hz).
-
Reference level is normalised to -0.1dB
computed over the frequency range [300.0Hz,
5000.0Hz].
-
Frequency deviation is 3.0dB over the same frequency range.
- Directivity
-
Horizontal directivity
is (-40.0°, 30.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
-
Vertical directivity
is (-20.0°, 20.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
- Tonality (Preference) Score
- Tonality (Preference) Score is 4.89
and would be 7.81 with a
perfect subwoofer.
- Details:
NBD: ON 0.317,
LW 0.3, SP
0.416, PIR
0.366; SM:
SP0.934,
PIR0.87; LFQ
1.165, LFX 68Hz
- Tonality (Preference) Score is 6.16
with an EQ and would be 9.14 with a
perfect subwoofer and the same EQ.
- Details:
NBD: ON 0.142,
LW 0.099, SP
0.228, PIR
0.144; SM:
SP0.98,
PIR0.967; LFQ 1.165, LFX 70Hz
|
AutomaticEQ (IIR)
|
|
Set preamp gain to: -3.7dB.
|
| Type |
Freq |
Q |
Gain |
| LS |
75.0 |
1.2 |
-0.01 |
| PK |
245.0 |
0.89 |
-1.92 |
| PK |
309.0 |
2.52 |
1.94 |
| PK |
432.0 |
2.05 |
-2.43 |
| PK |
646.0 |
2.44 |
1.87 |
| PK |
2082.0 |
2.14 |
2.42 |
| PK |
3438.0 |
1.06 |
2.66 |
| PK |
6276.0 |
2.69 |
-0.81 |
| PK |
11077.0 |
1.08 |
2.92 |
|
Download
|
These EQ optimise the Harman score and is a good start for far field listening like in your living room.
AutomaticEQ
Target v.s. EQ
|
Graphic EQ 15 bands
|
|
Set preamp gain to: -0.7dB.
|
| Type |
Freq |
Q |
Gain |
| PK |
25.0 |
2.14 |
0.5 |
| PK |
40.0 |
2.14 |
0.5 |
| PK |
63.0 |
2.14 |
0.5 |
| PK |
100.0 |
2.14 |
-0.25 |
| PK |
160.0 |
2.14 |
-0.25 |
| PK |
250.0 |
2.14 |
-0.25 |
| PK |
400.0 |
2.14 |
-0.5 |
| PK |
630.0 |
2.14 |
0.25 |
| PK |
1000.0 |
2.14 |
-0.25 |
| PK |
1600.0 |
2.14 |
0.25 |
| PK |
2500.0 |
2.14 |
0.5 |
| PK |
4000.0 |
2.14 |
0.5 |
| PK |
6300.0 |
2.14 |
0.0 |
| PK |
10000.0 |
2.14 |
0.5 |
| PK |
16000.0 |
2.14 |
0.0 |
|
Download
|
These EQ is designed for a 15 bands graphical EQ.
|
Graphic EQ 31 bands
|
|
Set preamp gain to: -1.1dB.
|
| Type |
Freq |
Q |
Gain |
| PK |
20.0 |
4.32 |
0.0 |
| PK |
25.0 |
4.32 |
0.5 |
| PK |
31.0 |
4.32 |
0.5 |
| PK |
40.0 |
4.32 |
0.5 |
| PK |
50.0 |
4.32 |
0.5 |
| PK |
63.0 |
4.32 |
0.5 |
| PK |
80.0 |
4.32 |
0.0 |
| PK |
100.0 |
4.32 |
-0.25 |
| PK |
125.0 |
4.32 |
0.0 |
| PK |
160.0 |
4.32 |
-0.25 |
| PK |
200.0 |
4.32 |
-0.25 |
| PK |
250.0 |
4.32 |
-0.25 |
| PK |
315.0 |
4.32 |
0.0 |
| PK |
400.0 |
4.32 |
-0.5 |
| PK |
500.0 |
4.32 |
-0.25 |
| PK |
630.0 |
4.32 |
0.25 |
| PK |
800.0 |
4.32 |
0.25 |
| PK |
1000.0 |
4.32 |
0.0 |
| PK |
1250.0 |
4.32 |
0.25 |
| PK |
1600.0 |
4.32 |
0.25 |
| PK |
2000.0 |
4.32 |
0.5 |
| PK |
2500.0 |
4.32 |
0.75 |
| PK |
3150.0 |
4.32 |
0.75 |
| PK |
4000.0 |
4.32 |
0.5 |
| PK |
5000.0 |
4.32 |
0.5 |
| PK |
6300.0 |
4.32 |
0.25 |
| PK |
8000.0 |
4.32 |
0.5 |
| PK |
10000.0 |
4.32 |
0.75 |
| PK |
12000.0 |
4.32 |
0.75 |
| PK |
16000.0 |
4.32 |
0.5 |
| PK |
20000.0 |
4.32 |
0.0 |
|
Download
|
These EQ is designed for a 31 bands graphical EQ.
Comparison betweens various EQs
Improvements made by EQ
|
