What we know about the measurement:

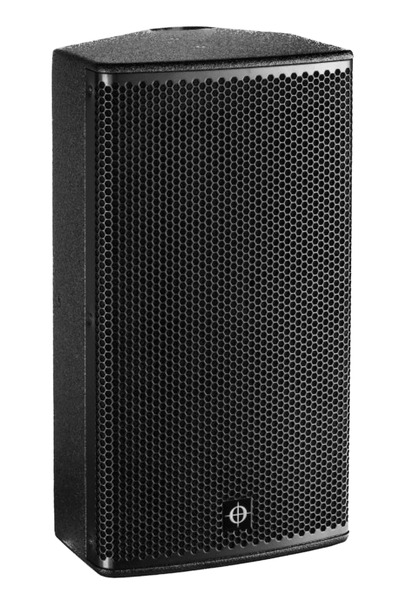

Coda Audio G515 is a passive liveportable

  • Quality of the measurement data is high.
  • Origin of the data is Coda Audio.
  • Format of the data is a GLL file .
  • Sensitivity:
    • Sensitivity: 103.7dB (avg. 100Hz-1kHz for 2.83V estimated at 1m).
    • Sensitivity: 83.7dB computed at the measurement distance (10.0m) over the same frequency range.
  • -3dB (resp. -6db) point v.s. reference is at 77.5Hz (resp. 65.0Hz).
  • Reference level is normalised to -0.2dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 3.8dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-40.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 2.64 and would be 5.5 with a perfect subwoofer.
      • Details: NBD: ON 0.569, LW 0.556, SP 0.592, PIR 0.545; SM: SP0.713, PIR0.374; LFQ 1.748, LFX 67Hz
    • Tonality (Preference) Score is 5.52 with an EQ and would be 7.84 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.38, LW 0.321, SP 0.424, PIR 0.334; SM: SP0.932, PIR0.908; LFQ 1.748, LFX 49Hz
  • Vendor specifications:
    • Dispersion: 90° horizontal and 60° vertical.
    • Sensitivity 98 dB
    • Impedance 8 Ohm
    • SPL
      • peak: 132 dB
    • Size
      • Width 420mm
      • Height 700mm
      • Depth 370 mm)
    • Weight 17.5 kg
Coda Audio G515
AutomaticEQ (IIR)
Set preamp gain to: -3.0dB.
Type Freq Q Gain
5 77.0 0.68 2.97
3 262.0 1.25 2.83
3 604.0 2.37 -1.05
3 844.0 2.9 2.94
3 1067.0 2.7 -2.79
3 1948.0 2.84 1.43
3 4803.0 2.63 1.73
3 6937.0 0.76 -2.95
3 10713.0 1.29 -2.82
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Coda Audio G515 filters_auto_eq

AutomaticEQ

Coda Audio G515 filters_eq_full

Target v.s. EQ

Coda Audio G515
Graphic EQ 15 bands
Set preamp gain to: -1.1dB.
Type Freq Q Gain
3 25.0 2.14 0.75
3 40.0 2.14 0.75
3 63.0 2.14 0.75
3 100.0 2.14 0.0
3 160.0 2.14 0.5
3 250.0 2.14 0.75
3 400.0 2.14 0.25
3 630.0 2.14 0.0
3 1000.0 2.14 -0.25
3 1600.0 2.14 0.5
3 2500.0 2.14 0.25
3 4000.0 2.14 0.5
3 6300.0 2.14 0.0
3 10000.0 2.14 -0.75
3 16000.0 2.14 -0.5
Download

These EQ is designed for a 15 bands graphical EQ.

Coda Audio G515
Graphic EQ 31 bands
Set preamp gain to: -1.1dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.75
3 31.0 4.32 0.75
3 40.0 4.32 0.75
3 50.0 4.32 0.75
3 63.0 4.32 0.75
3 80.0 4.32 0.5
3 100.0 4.32 0.0
3 125.0 4.32 0.0
3 160.0 4.32 0.25
3 200.0 4.32 0.5
3 250.0 4.32 0.5
3 315.0 4.32 0.5
3 400.0 4.32 0.0
3 500.0 4.32 0.0
3 630.0 4.32 0.0
3 800.0 4.32 0.25
3 1000.0 4.32 -0.5
3 1250.0 4.32 0.0
3 1600.0 4.32 0.25
3 2000.0 4.32 0.5
3 2500.0 4.32 0.25
3 3150.0 4.32 0.25
3 4000.0 4.32 0.25
3 5000.0 4.32 0.25
3 6300.0 4.32 -0.25
3 8000.0 4.32 -0.75
3 10000.0 4.32 -0.75
3 12000.0 4.32 -0.25
3 16000.0 4.32 -0.5
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

Coda Audio G515: comparison between EQs
Coda Audio G515

Comparison betweens various EQs

Coda Audio G515

Improvements made by EQ

Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
;
