- Quality of the measurement data is high.
- Origin of the data is ASR.
- Format of the data is generated by a Klippel NFS .
-
Sensitivity:
- Measured: 83.9 dB (avg. 300Hz-3kHz for 2.83V measured at 1m).
- -3dB (resp. -6db) point v.s. reference is at 64.5Hz (resp. 58.6Hz).
- Reference level is normalised to -0.3dB computed over the frequency range [300.0Hz, 5000.0Hz].
- Frequency deviation is 3.5dB over the same frequency range.
- Tonality (Preference) Score
- Tonality (Preference) Score is 4.85
and would be 7.32 with a
perfect subwoofer.
- Details: NBD: ON 0.505, LW 0.42, SP 0.429, PIR 0.403; SM: SP0.945, PIR0.905; LFQ 0.291, LFX 54Hz
- Tonality (Preference) Score is 6.08
with an EQ and would be 8.27 with a
perfect subwoofer and the same EQ.
- Details: NBD: ON 0.357, LW 0.27, SP 0.329, PIR 0.256; SM: SP0.976, PIR0.969; LFQ 0.352, LFX 46Hz
- Tonality (Preference) Score is 4.85
and would be 7.32 with a
perfect subwoofer.
- Link to Original review.

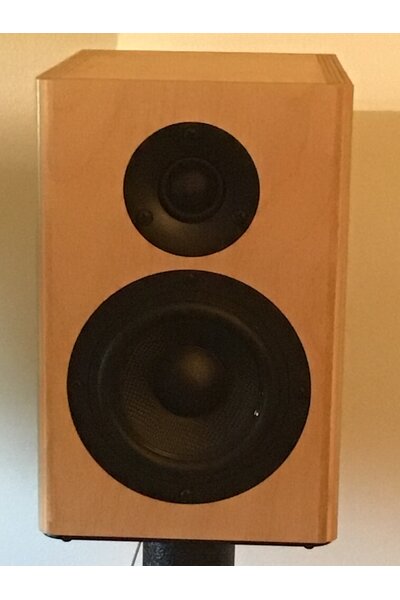

Carmody S2000 DIY Speaker Kit is a passive bookshelves that cost around 240 USD for a pair.
| AutomaticEQ (IIR) | |||
| Set preamp gain to: -4.8dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 47.0 | 2.76 | 2.93 |
| PK | 65.0 | 0.41 | 2.17 |
| PK | 172.0 | 1.01 | -1.88 |
| PK | 600.0 | 1.94 | 1.17 |
| PK | 3177.0 | 2.55 | -2.46 |
| PK | 9989.0 | 0.45 | 3.0 |
| PK | 11882.0 | 2.98 | -2.44 |
| Download | |||
This EQ optimise the Harman score and is a good start for far field listening like in your living room.
| flipflop@ASR (IIR) | |||
| Set preamp gain to: -4.9dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 396.0 | 7.0 | 0.4 |
| PK | 540.0 | 3.0 | 1.3 |
| PK | 656.0 | 18.0 | 0.8 |
| PK | 720.0 | 5.0 | 0.9 |
| PK | 1180.0 | 6.0 | -0.8 |
| PK | 1390.0 | 10.0 | 0.9 |
| PK | 1595.0 | 6.0 | -1.2 |
| PK | 1770.0 | 9.0 | 1.5 |
| PK | 2090.0 | 14.0 | 0.9 |
| PK | 2252.0 | 12.0 | -1.3 |
| PK | 2440.0 | 16.0 | 0.9 |
| PK | 2605.0 | 10.0 | -2.4 |
| PK | 3200.0 | 3.5 | -1.4 |
| PK | 3920.0 | 15.0 | 0.8 |
| PK | 5220.0 | 1.8 | 2.6 |
| PK | 7280.0 | 6.0 | 0.7 |
| PK | 9350.0 | 1.45 | 4.5 |
| PK | 12050.0 | 4.0 | -1.6 |
| PK | 14710.0 | 3.4 | 1.0 |
| HS | 16000.0 | 1.5772935127949521 | 4.0 |
| Download | |||
This EQ is designed by ASR member flipflop.
| Graphic EQ 15 bands | |||
| Set preamp gain to: -0.7dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 25.0 | 2.14 | 0.5 |
| PK | 40.0 | 2.14 | 0.5 |
| PK | 63.0 | 2.14 | 0.5 |
| PK | 100.0 | 2.14 | 0.0 |
| PK | 160.0 | 2.14 | -0.25 |
| PK | 250.0 | 2.14 | -0.25 |
| PK | 400.0 | 2.14 | 0.0 |
| PK | 630.0 | 2.14 | 0.0 |
| PK | 1000.0 | 2.14 | -0.25 |
| PK | 1600.0 | 2.14 | 0.0 |
| PK | 2500.0 | 2.14 | 0.0 |
| PK | 4000.0 | 2.14 | 0.0 |
| PK | 6300.0 | 2.14 | 0.5 |
| PK | 10000.0 | 2.14 | 0.5 |
| PK | 16000.0 | 2.14 | 0.5 |
| Download | |||
This EQ is designed for a 15 bands graphical EQ.
| Graphic EQ 31 bands | |||
| Set preamp gain to: -1.0dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 20.0 | 4.32 | 0.0 |
| PK | 25.0 | 4.32 | 0.5 |
| PK | 31.0 | 4.32 | 0.5 |
| PK | 40.0 | 4.32 | 0.5 |
| PK | 50.0 | 4.32 | 0.5 |
| PK | 63.0 | 4.32 | 0.5 |
| PK | 80.0 | 4.32 | 0.25 |
| PK | 100.0 | 4.32 | 0.25 |
| PK | 125.0 | 4.32 | 0.0 |
| PK | 160.0 | 4.32 | 0.0 |
| PK | 200.0 | 4.32 | -0.25 |
| PK | 250.0 | 4.32 | 0.0 |
| PK | 315.0 | 4.32 | 0.0 |
| PK | 400.0 | 4.32 | 0.0 |
| PK | 500.0 | 4.32 | 0.0 |
| PK | 630.0 | 4.32 | 0.25 |
| PK | 800.0 | 4.32 | 0.0 |
| PK | 1000.0 | 4.32 | 0.0 |
| PK | 1250.0 | 4.32 | 0.0 |
| PK | 1600.0 | 4.32 | 0.0 |
| PK | 2000.0 | 4.32 | 0.0 |
| PK | 2500.0 | 4.32 | -0.25 |
| PK | 3150.0 | 4.32 | 0.0 |
| PK | 4000.0 | 4.32 | 0.25 |
| PK | 5000.0 | 4.32 | 0.5 |
| PK | 6300.0 | 4.32 | 0.5 |
| PK | 8000.0 | 4.32 | 0.75 |
| PK | 10000.0 | 4.32 | 0.75 |
| PK | 12000.0 | 4.32 | 0.25 |
| PK | 16000.0 | 4.32 | 0.5 |
| PK | 20000.0 | 4.32 | 0.0 |
| Download | |||
