What we know about the measurement:

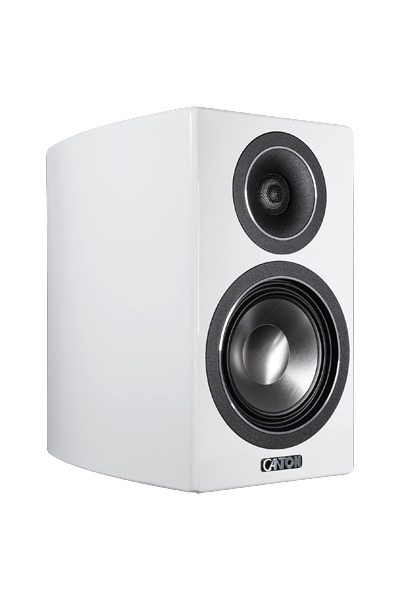

Canton Vento 826.2 is a passive bookshelves that cost around 780 USD for a pair.

  • Quality of the measurement data is high.
  • Origin of the data is ASR.
  • Format of the data is generated by a Klippel NFS .
  • Sensitivity: 86.6dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 77.6Hz (resp. 52.7Hz).
  • Reference level is normalised to 0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 2.0dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-60.0°, 60.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 5.6 and would be 7.86 with a perfect subwoofer.
      • Details: NBD: ON 0.389, LW 0.33, SP 0.3, PIR 0.276; SM: SP0.924, PIR0.85; LFQ 0.454, LFX 48Hz
    • Tonality (Preference) Score is 6.49 with an EQ and would be 8.44 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.317, LW 0.267, SP 0.257, PIR 0.212; SM: SP0.955, PIR0.943; LFQ 0.458, LFX 41Hz
  • Link to Original review.
  • Vendor specifications:
    • Sensitivity 85 dB
    • Impedance 4 Ohm
    • Size
      • Width 195mm
      • Height 300mm
      • Depth 270 mm)
    • Weight 6 kg
Canton Vento 826.2
AutomaticEQ (IIR)
Set preamp gain to: -3.4dB.
Type Freq Q Gain
3 42.0 1.06 2.95
3 80.0 1.05 2.3
3 166.0 0.48 -1.47
3 579.0 2.94 1.34
3 1083.0 3.0 0.98
3 2094.0 2.62 -0.36
3 7834.0 0.63 -1.28
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Canton Vento 826.2 filters_auto_eq

AutomaticEQ

Canton Vento 826.2 filters_eq_full

Target v.s. EQ

Canton Vento 826.2
Graphic EQ 15 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
3 25.0 2.14 0.5
3 40.0 2.14 0.5
3 63.0 2.14 0.5
3 100.0 2.14 0.25
3 160.0 2.14 -0.25
3 250.0 2.14 -0.25
3 400.0 2.14 -0.25
3 630.0 2.14 0.25
3 1000.0 2.14 0.0
3 1600.0 2.14 0.0
3 2500.0 2.14 0.0
3 4000.0 2.14 -0.25
3 6300.0 2.14 0.0
3 10000.0 2.14 -0.25
3 16000.0 2.14 0.25
Download

These EQ is designed for a 15 bands graphical EQ.

Canton Vento 826.2
Graphic EQ 31 bands
Set preamp gain to: -0.8dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.5
3 31.0 4.32 0.5
3 40.0 4.32 0.5
3 50.0 4.32 0.5
3 63.0 4.32 0.5
3 80.0 4.32 0.25
3 100.0 4.32 0.25
3 125.0 4.32 0.0
3 160.0 4.32 -0.25
3 200.0 4.32 -0.25
3 250.0 4.32 -0.25
3 315.0 4.32 -0.25
3 400.0 4.32 0.0
3 500.0 4.32 0.0
3 630.0 4.32 0.25
3 800.0 4.32 0.0
3 1000.0 4.32 0.25
3 1250.0 4.32 0.0
3 1600.0 4.32 0.25
3 2000.0 4.32 0.0
3 2500.0 4.32 0.25
3 3150.0 4.32 0.0
3 4000.0 4.32 0.0
3 5000.0 4.32 0.0
3 6300.0 4.32 0.0
3 8000.0 4.32 0.0
3 10000.0 4.32 0.0
3 12000.0 4.32 0.0
3 16000.0 4.32 0.25
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

Canton Vento 826.2: comparison between EQs
Canton Vento 826.2

Comparison betweens various EQs

Canton Vento 826.2

Improvements made by EQ
CEA2034
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
CEA2034
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
