What we know about the measurement:

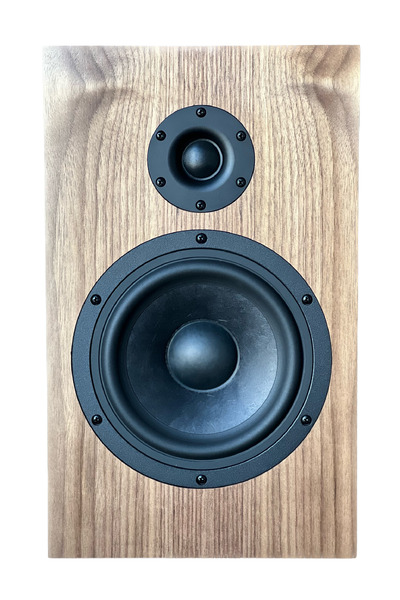

CSS Criton 1TD-X DIY is a passive bookshelves that cost around 770 USD for a pair.

  • Quality of the measurement data is high.
  • Origin of the data is ASR.
  • Format of the data is generated by a Klippel NFS .
  • Sensitivity: 82.0dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 46.9Hz (resp. 39.6Hz).
  • Reference level is normalised to -0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 3.0dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-70.0°, 70.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 5.28 and would be 6.94 with a perfect subwoofer.
      • Details: NBD: ON 0.513, LW 0.403, SP 0.433, PIR 0.391; SM: SP0.851, PIR0.735; LFQ 0.625, LFX 35Hz
    • Tonality (Preference) Score is 6.79 with an EQ and would be 8.2 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.395, LW 0.307, SP 0.308, PIR 0.24; SM: SP0.938, PIR0.959; LFQ 0.687, LFX 30Hz
  • Link to Original review.
CSS Criton 1TD-X DIY
AutomaticEQ (IIR)
Set preamp gain to: -2.9dB.
Type Freq Q Gain
5 66.0 0.47 3.0
3 93.0 1.26 -1.64
3 342.0 1.01 1.39
3 494.0 1.61 0.81
3 625.0 2.75 -1.52
3 1442.0 2.77 1.11
3 4645.0 1.88 -1.45
3 9691.0 2.54 3.0
3 13997.0 1.17 -2.78
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

CSS Criton 1TD-X DIY filters_auto_eq

AutomaticEQ

CSS Criton 1TD-X DIY filters_eq_full

Target v.s. EQ

CSS Criton 1TD-X DIY
Graphic EQ 15 bands
Set preamp gain to: -0.5dB.
Type Freq Q Gain
3 25.0 2.14 0.25
3 40.0 2.14 0.25
3 63.0 2.14 0.0
3 100.0 2.14 -0.25
3 160.0 2.14 0.0
3 250.0 2.14 0.0
3 400.0 2.14 0.25
3 630.0 2.14 -0.25
3 1000.0 2.14 0.0
3 1600.0 2.14 0.25
3 2500.0 2.14 0.0
3 4000.0 2.14 0.0
3 6300.0 2.14 0.0
3 10000.0 2.14 0.5
3 16000.0 2.14 -0.25
Download

These EQ is designed for a 15 bands graphical EQ.

CSS Criton 1TD-X DIY
Graphic EQ 31 bands
Set preamp gain to: -0.4dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.25
3 31.0 4.32 0.25
3 40.0 4.32 0.25
3 50.0 4.32 0.25
3 63.0 4.32 0.0
3 80.0 4.32 -0.25
3 100.0 4.32 -0.25
3 125.0 4.32 -0.25
3 160.0 4.32 0.0
3 200.0 4.32 0.0
3 250.0 4.32 0.0
3 315.0 4.32 0.0
3 400.0 4.32 0.25
3 500.0 4.32 0.0
3 630.0 4.32 -0.25
3 800.0 4.32 0.0
3 1000.0 4.32 0.0
3 1250.0 4.32 0.0
3 1600.0 4.32 0.25
3 2000.0 4.32 0.0
3 2500.0 4.32 0.0
3 3150.0 4.32 0.0
3 4000.0 4.32 0.0
3 5000.0 4.32 -0.25
3 6300.0 4.32 0.0
3 8000.0 4.32 0.25
3 10000.0 4.32 0.25
3 12000.0 4.32 -0.25
3 16000.0 4.32 -0.25
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

CSS Criton 1TD-X DIY: comparison between EQs
CSS Criton 1TD-X DIY

Comparison betweens various EQs

CSS Criton 1TD-X DIY

Improvements made by EQ

Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
;
