What we know about the measurement:
- Quality of the measurement data is
unknown.
-

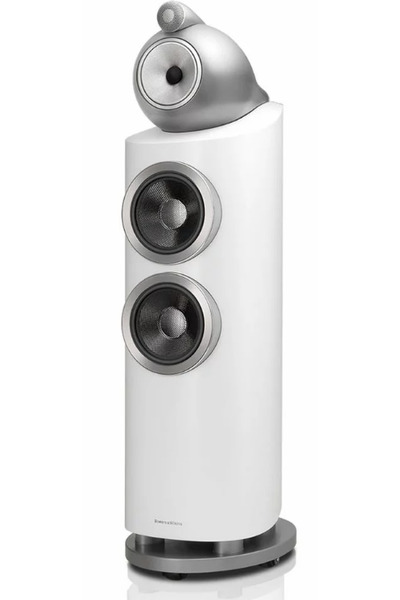

Origin of the data is Bowers & Wilkins.
-
Format of the data is
a scanned image
.
-
Sensitivity: 88.0dB (avg. 100Hz-1kHz for 2.83V estimated at 1m)
-
-3dB (resp. -6db) point v.s. reference is at 54.5Hz (resp. 43.4Hz).
-
Reference level is normalised to 1.3dB
computed over the frequency range [300.0Hz,
5000.0Hz].
-
Frequency deviation is 3.8dB over the same frequency range.
- Tonality (Preference) Score
- Tonality (Preference) Score is 4.6
and would be 6.52 with a
perfect subwoofer.
- Details:
NBD: ON 0.384,
LW 0.3, SP
0.286, PIR
0.273; SM:
SP0.682,
PIR0.267; LFQ
1.527, LFX 40Hz
- Tonality (Preference) Score is 6.59
with an EQ and would be 8.51 with a
perfect subwoofer and the same EQ.
- Details:
NBD: ON 0.267,
LW 0.239, SP
0.256, PIR
0.201; SM:
SP0.924,
PIR0.905; LFQ 1.527, LFX 40Hz
|
AutomaticEQ (IIR)
|
|
Set preamp gain to: -1.3dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
54.0 |
2.82 |
1.57 |
| 3 |
144.0 |
2.98 |
-1.22 |
| 3 |
395.0 |
0.25 |
-1.01 |
| 3 |
4495.0 |
2.98 |
-2.36 |
| 3 |
7566.0 |
2.99 |
3.0 |
| 3 |
8397.0 |
1.15 |
-3.88 |
| 3 |
12736.0 |
0.44 |
-3.52 |
|
Download
|
These EQ optimise the Harman score and is a good start for far field listening like in your living room.
AutomaticEQ
Target v.s. EQ
|
Graphic EQ 15 bands
|
|
Set preamp gain to: -0.0dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
25.0 |
2.14 |
0.0 |
| 3 |
40.0 |
2.14 |
0.0 |
| 3 |
63.0 |
2.14 |
0.0 |
| 3 |
100.0 |
2.14 |
-0.25 |
| 3 |
160.0 |
2.14 |
-0.25 |
| 3 |
250.0 |
2.14 |
-0.25 |
| 3 |
400.0 |
2.14 |
0.0 |
| 3 |
630.0 |
2.14 |
-0.25 |
| 3 |
1000.0 |
2.14 |
-0.25 |
| 3 |
1600.0 |
2.14 |
-0.5 |
| 3 |
2500.0 |
2.14 |
-0.25 |
| 3 |
4000.0 |
2.14 |
-0.5 |
| 3 |
6300.0 |
2.14 |
-0.75 |
| 3 |
10000.0 |
2.14 |
-1.0 |
| 3 |
16000.0 |
2.14 |
-0.5 |
|
Download
|
These EQ is designed for a 15 bands graphical EQ.
|
Graphic EQ 31 bands
|
|
Set preamp gain to: -0.0dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
20.0 |
4.32 |
0.0 |
| 3 |
25.0 |
4.32 |
0.0 |
| 3 |
31.0 |
4.32 |
0.0 |
| 3 |
40.0 |
4.32 |
0.0 |
| 3 |
50.0 |
4.32 |
0.0 |
| 3 |
63.0 |
4.32 |
0.0 |
| 3 |
80.0 |
4.32 |
0.0 |
| 3 |
100.0 |
4.32 |
-0.25 |
| 3 |
125.0 |
4.32 |
-0.25 |
| 3 |
160.0 |
4.32 |
-0.25 |
| 3 |
200.0 |
4.32 |
-0.25 |
| 3 |
250.0 |
4.32 |
-0.25 |
| 3 |
315.0 |
4.32 |
-0.25 |
| 3 |
400.0 |
4.32 |
-0.25 |
| 3 |
500.0 |
4.32 |
-0.25 |
| 3 |
630.0 |
4.32 |
-0.25 |
| 3 |
800.0 |
4.32 |
-0.25 |
| 3 |
1000.0 |
4.32 |
-0.25 |
| 3 |
1250.0 |
4.32 |
-0.5 |
| 3 |
1600.0 |
4.32 |
-0.5 |
| 3 |
2000.0 |
4.32 |
-0.5 |
| 3 |
2500.0 |
4.32 |
-0.25 |
| 3 |
3150.0 |
4.32 |
-0.25 |
| 3 |
4000.0 |
4.32 |
-0.5 |
| 3 |
5000.0 |
4.32 |
-0.75 |
| 3 |
6300.0 |
4.32 |
-0.75 |
| 3 |
8000.0 |
4.32 |
-0.75 |
| 3 |
10000.0 |
4.32 |
-1.0 |
| 3 |
12000.0 |
4.32 |
-1.0 |
| 3 |
16000.0 |
4.32 |
-0.75 |
| 3 |
20000.0 |
4.32 |
0.0 |
|
Download
|
These EQ is designed for a 31 bands graphical EQ.
Comparison betweens various EQs
Improvements made by EQ
|
