What we know about the measurement:

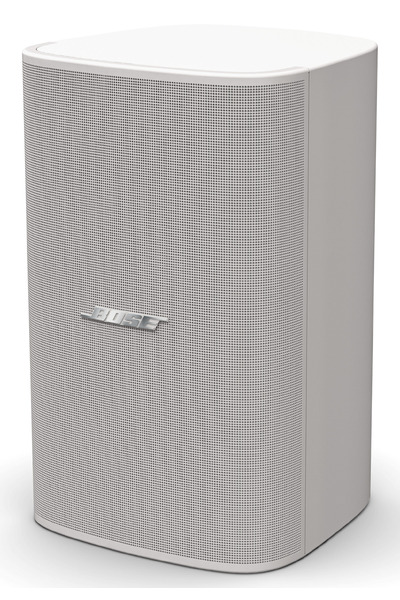

Bose DesignMax DM8S is a passive bookshelves that cost around 666 USD each.

  • Quality of the measurement data is high.
  • Origin of the data is Bose.
  • Format of the data is a GLL file .
  • Sensitivity: 105.5dB (avg. 100Hz-1kHz for 2.83V estimated at 1m) . Sensitivity computed at the measurement distance (10m) over the same frequency range: 85.5dB.
  • -3dB (resp. -6db) point v.s. reference is at 67.0Hz (resp. 61.5Hz).
  • Reference level is normalised to 0.4dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 6.7dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-30.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-30.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is -0.07 and would be 2.67 with a perfect subwoofer.
      • Details: NBD: ON 1.091, LW 0.965, SP 0.948, PIR 0.914; SM: SP0.554, PIR0.191; LFQ 0.661, LFX 63Hz
    • Tonality (Preference) Score is 2.86 with an EQ and would be 5.56 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.798, LW 0.706, SP 0.703, PIR 0.646; SM: SP0.885, PIR0.775; LFQ 0.661, LFX 61Hz
  • .
  • Vendor specifications:
    • Dispersion: 130° horizontal and 130° vertical.
    • Sensitivity 93 dB
    • Impedance 8 Ohm
    • SPL
      • peak: 115 dB
    • Size
      • Width 249mm
      • Height 395mm
      • Depth 273 mm)
    • Weight 10.34 kg
Bose DesignMax DM8S
AutomaticEQ (IIR)
Set preamp gain to: -2.9dB.
Type Freq Q Gain
3 102.0 2.39 -2.66
3 252.0 2.98 3.0
3 765.0 3.0 3.0
3 2406.0 3.0 -3.9
3 6361.0 2.99 -2.8
3 8110.0 2.99 2.99
3 8694.0 0.61 -4.42
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Bose DesignMax DM8S filters_auto_eq

AutomaticEQ

Bose DesignMax DM8S filters_eq_full

Target v.s. EQ

Bose DesignMax DM8S
Graphic EQ 15 bands
Set preamp gain to: -1.0dB.
Type Freq Q Gain
3 25.0 2.14 0.5
3 40.0 2.14 0.5
3 63.0 2.14 0.5
3 100.0 2.14 -0.5
3 160.0 2.14 0.0
3 250.0 2.14 1.0
3 400.0 2.14 0.0
3 630.0 2.14 0.5
3 1000.0 2.14 0.5
3 1600.0 2.14 0.0
3 2500.0 2.14 -0.25
3 4000.0 2.14 0.0
3 6300.0 2.14 -0.5
3 10000.0 2.14 0.0
3 16000.0 2.14 0.25
Download

These EQ is designed for a 15 bands graphical EQ.

Bose DesignMax DM8S
Graphic EQ 31 bands
Set preamp gain to: -0.8dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.5
3 31.0 4.32 0.5
3 40.0 4.32 0.5
3 50.0 4.32 0.5
3 63.0 4.32 0.5
3 80.0 4.32 -0.25
3 100.0 4.32 -0.5
3 125.0 4.32 -0.25
3 160.0 4.32 0.0
3 200.0 4.32 0.25
3 250.0 4.32 0.75
3 315.0 4.32 0.25
3 400.0 4.32 0.0
3 500.0 4.32 0.0
3 630.0 4.32 0.25
3 800.0 4.32 0.75
3 1000.0 4.32 0.25
3 1250.0 4.32 -0.25
3 1600.0 4.32 -0.25
3 2000.0 4.32 -0.75
3 2500.0 4.32 -0.5
3 3150.0 4.32 -0.5
3 4000.0 4.32 -0.5
3 5000.0 4.32 0.0
3 6300.0 4.32 -0.75
3 8000.0 4.32 0.0
3 10000.0 4.32 -0.25
3 12000.0 4.32 -0.5
3 16000.0 4.32 -0.25
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.
