What we know about the measurement:

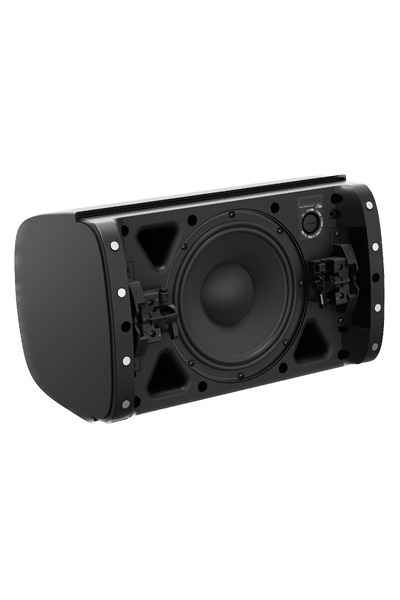

Bose DesignMax DM6SE is a passive bookshelves that cost around 530 USD each.

  • Quality of the measurement data is high.
  • Origin of the data is Bose.
  • Format of the data is a GLL file .
  • Sensitivity:
    • Sensitivity: 81.8dB (avg. 100Hz-1kHz for 2.83V estimated at 1m).
    • Sensitivity: 61.8dB computed at the measurement distance (10.0m) over the same frequency range.
  • -3dB (resp. -6db) point v.s. reference is at 71.0Hz (resp. 67.0Hz).
  • Reference level is normalised to 0.3dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 6.4dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-50.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-60.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is -0.43 and would be 2.48 with a perfect subwoofer.
      • Details: NBD: ON 1.099, LW 0.996, SP 0.854, PIR 0.872; SM: SP0.342, PIR0.064; LFQ 0.835, LFX 68Hz
    • Tonality (Preference) Score is 3.15 with an EQ and would be 6.12 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.721, LW 0.602, SP 0.686, PIR 0.555; SM: SP0.873, PIR0.817; LFQ 0.835, LFX 70Hz
  • .
  • Vendor specifications:
    • Dispersion: 125° horizontal and 125° vertical.
    • Sensitivity 89 dB
    • Impedance 8 Ohm
    • SPL
      • peak: 107 dB
    • Size
      • Width 222mm
      • Height 340mm
      • Depth 229 mm)
    • Weight 5.93 kg
Bose DesignMax DM6SE
AutomaticEQ (IIR)
Set preamp gain to: -6.1dB.
Type Freq Q Gain
5 262.0 1.21 -2.79
3 320.0 1.28 2.58
3 378.0 2.86 2.99
3 447.0 3.0 3.0
3 903.0 2.99 2.99
3 1103.0 1.65 -2.84
3 3110.0 2.97 -2.75
3 6276.0 3.0 -2.98
3 10361.0 0.25 -2.52
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Bose DesignMax DM6SE filters_auto_eq

AutomaticEQ

Bose DesignMax DM6SE filters_eq_full

Target v.s. EQ

Bose DesignMax DM6SE
Graphic EQ 15 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
3 25.0 2.14 0.25
3 40.0 2.14 0.25
3 63.0 2.14 0.25
3 100.0 2.14 -0.5
3 160.0 2.14 -0.25
3 250.0 2.14 0.25
3 400.0 2.14 0.75
3 630.0 2.14 -0.25
3 1000.0 2.14 -0.25
3 1600.0 2.14 -0.5
3 2500.0 2.14 -0.25
3 4000.0 2.14 -0.25
3 6300.0 2.14 -1.0
3 10000.0 2.14 -0.75
3 16000.0 2.14 -0.5
Download

These EQ is designed for a 15 bands graphical EQ.

Bose DesignMax DM6SE
Graphic EQ 31 bands
Set preamp gain to: -0.6dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.25
3 31.0 4.32 0.25
3 40.0 4.32 0.25
3 50.0 4.32 0.25
3 63.0 4.32 0.25
3 80.0 4.32 0.0
3 100.0 4.32 -0.25
3 125.0 4.32 -0.5
3 160.0 4.32 -0.25
3 200.0 4.32 -0.25
3 250.0 4.32 0.25
3 315.0 4.32 0.25
3 400.0 4.32 0.5
3 500.0 4.32 0.25
3 630.0 4.32 -0.25
3 800.0 4.32 0.0
3 1000.0 4.32 -0.25
3 1250.0 4.32 -0.25
3 1600.0 4.32 -0.5
3 2000.0 4.32 -0.25
3 2500.0 4.32 -0.25
3 3150.0 4.32 -0.75
3 4000.0 4.32 -0.25
3 5000.0 4.32 -0.25
3 6300.0 4.32 -0.75
3 8000.0 4.32 -0.25
3 10000.0 4.32 -0.75
3 12000.0 4.32 -0.25
3 16000.0 4.32 -0.5
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.
