What we know about the measurement:

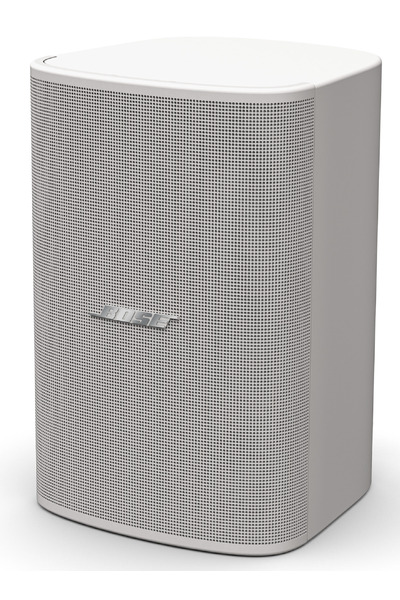

Bose DesignMax DM5SE is a passive bookshelves that cost around 530 USD each.

  • Quality of the measurement data is high.
  • Origin of the data is Bose.
  • Format of the data is a GLL file .
  • Sensitivity: 98.4dB (avg. 100Hz-1kHz for 2.83V estimated at 1m) . Sensitivity computed at the measurement distance (10m) over the same frequency range: 78.4dB.
  • -3dB (resp. -6db) point v.s. reference is at 77.5Hz (resp. 73.0Hz).
  • Reference level is normalised to 0.2dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 6.3dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-50.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-50.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is -0.81 and would be 2.21 with a perfect subwoofer.
      • Details: NBD: ON 1.144, LW 1.028, SP 1.027, PIR 0.96; SM: SP0.424, PIR0.107; LFQ 0.584, LFX 73Hz
    • Tonality (Preference) Score is 3.16 with an EQ and would be 6.13 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.782, LW 0.652, SP 0.667, PIR 0.551; SM: SP0.935, PIR0.883; LFQ 0.584, LFX 70Hz
  • .
  • Vendor specifications:
    • Dispersion: 130° horizontal and 130° vertical.
    • Sensitivity 90 dB
    • Impedance 8 Ohm
    • SPL
      • peak: 111 dB
    • Size
      • Width 192mm
      • Height 286mm
      • Depth 197 mm)
    • Weight 4.38 kg
Bose DesignMax DM5SE
AutomaticEQ (IIR)
Set preamp gain to: -4.3dB.
Type Freq Q Gain
3 149.0 1.29 -2.64
3 260.0 3.0 3.0
3 310.0 2.3 3.0
3 3289.0 1.17 -3.23
3 5165.0 2.99 -3.86
3 8110.0 2.95 -9.0
3 14134.0 2.86 -6.4
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Bose DesignMax DM5SE filters_auto_eq

AutomaticEQ

Bose DesignMax DM5SE filters_eq_full

Target v.s. EQ

Bose DesignMax DM5SE
Graphic EQ 15 bands
Set preamp gain to: -0.4dB.
Type Freq Q Gain
3 25.0 2.14 0.25
3 40.0 2.14 0.25
3 63.0 2.14 0.25
3 100.0 2.14 -0.25
3 160.0 2.14 -0.5
3 250.0 2.14 0.5
3 400.0 2.14 0.25
3 630.0 2.14 0.0
3 1000.0 2.14 0.25
3 1600.0 2.14 -0.25
3 2500.0 2.14 0.0
3 4000.0 2.14 -0.5
3 6300.0 2.14 -0.5
3 10000.0 2.14 -0.25
3 16000.0 2.14 -0.25
Download

These EQ is designed for a 15 bands graphical EQ.

Bose DesignMax DM5SE
Graphic EQ 31 bands
Set preamp gain to: -0.9dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.25
3 31.0 4.32 0.25
3 40.0 4.32 0.25
3 50.0 4.32 0.25
3 63.0 4.32 0.25
3 80.0 4.32 0.0
3 100.0 4.32 -0.25
3 125.0 4.32 -0.5
3 160.0 4.32 -0.25
3 200.0 4.32 0.0
3 250.0 4.32 0.5
3 315.0 4.32 0.75
3 400.0 4.32 0.25
3 500.0 4.32 0.0
3 630.0 4.32 0.0
3 800.0 4.32 0.25
3 1000.0 4.32 0.25
3 1250.0 4.32 -0.25
3 1600.0 4.32 -0.25
3 2000.0 4.32 -0.25
3 2500.0 4.32 0.0
3 3150.0 4.32 0.0
3 4000.0 4.32 -0.25
3 5000.0 4.32 -0.5
3 6300.0 4.32 -0.25
3 8000.0 4.32 -1.0
3 10000.0 4.32 0.25
3 12000.0 4.32 0.0
3 16000.0 4.32 0.0
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

Bose DesignMax DM5SE: comparison between EQs
Bose DesignMax DM5SE

Comparison betweens various EQs

Bose DesignMax DM5SE

Improvements made by EQ
