What we know about the measurement:

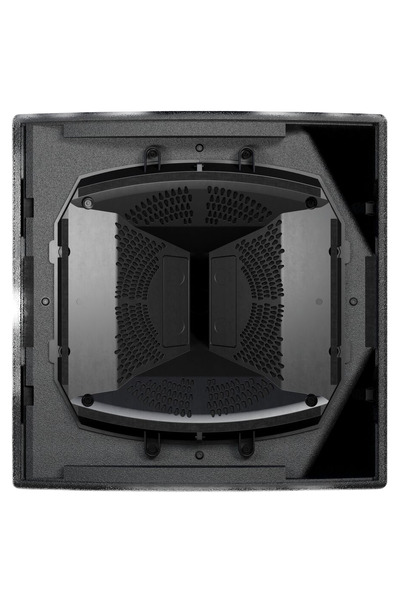

Bose AMM112 is a passive liveportable that cost around 2400 USD each.

  • Quality of the measurement data is high.
  • Origin of the data is Bose.
  • Format of the data is a GLL file .
  • Sensitivity: 119.6dB (avg. 100Hz-1kHz for 2.83V estimated at 1m) . Sensitivity computed at the measurement distance (10m) over the same frequency range: 99.6dB.
  • -3dB (resp. -6db) point v.s. reference is at 87.5Hz (resp. 80.0Hz).
  • Reference level is normalised to -0.0dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 2.6dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-40.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 1.78 and would be 4.98 with a perfect subwoofer.
      • Details: NBD: ON 0.844, LW 0.712, SP 0.763, PIR 0.682; SM: SP0.74, PIR0.623; LFQ 1.983, LFX 79Hz
    • Tonality (Preference) Score is 3.22 with an EQ and would be 6.35 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.788, LW 0.535, SP 0.525, PIR 0.47; SM: SP0.923, PIR0.88; LFQ 1.983, LFX 77Hz
  • .
  • Vendor specifications:
    • Dispersion: 110° horizontal and 60° vertical.
    • Sensitivity 96 dB
    • Impedance 8 Ohm
    • SPL
      • continuous: 121 dB
      • peak: 131 dB
    • Size
      • Width 457mm
      • Height 457mm
      • Depth 383 mm)
    • Weight 22.04 kg
Bose AMM112
AutomaticEQ (IIR)
Set preamp gain to: -1.7dB.
Type Freq Q Gain
6 143.0 1.1 -2.1
3 447.0 3.0 2.89
3 817.0 1.2 2.94
3 1704.0 2.59 -2.6
3 2014.0 2.86 2.7
3 4345.0 1.09 3.0
3 5870.0 2.75 -2.89
3 8199.0 2.96 -2.44
3 14965.0 1.07 -0.66
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Bose AMM112 filters_auto_eq

AutomaticEQ

Bose AMM112 filters_eq_full

Target v.s. EQ

Bose AMM112
Graphic EQ 15 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
3 25.0 2.14 0.5
3 40.0 2.14 0.5
3 63.0 2.14 0.5
3 100.0 2.14 0.0
3 160.0 2.14 -0.25
3 250.0 2.14 -0.25
3 400.0 2.14 0.25
3 630.0 2.14 0.5
3 1000.0 2.14 0.25
3 1600.0 2.14 0.0
3 2500.0 2.14 0.25
3 4000.0 2.14 0.5
3 6300.0 2.14 0.0
3 10000.0 2.14 0.25
3 16000.0 2.14 -1.25
Download

These EQ is designed for a 15 bands graphical EQ.

Bose AMM112
Graphic EQ 31 bands
Set preamp gain to: -0.8dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.5
3 31.0 4.32 0.5
3 40.0 4.32 0.5
3 50.0 4.32 0.5
3 63.0 4.32 0.5
3 80.0 4.32 0.5
3 100.0 4.32 0.0
3 125.0 4.32 0.0
3 160.0 4.32 -0.25
3 200.0 4.32 -0.25
3 250.0 4.32 -0.25
3 315.0 4.32 0.0
3 400.0 4.32 0.25
3 500.0 4.32 0.25
3 630.0 4.32 0.5
3 800.0 4.32 0.25
3 1000.0 4.32 0.25
3 1250.0 4.32 0.25
3 1600.0 4.32 0.0
3 2000.0 4.32 0.5
3 2500.0 4.32 0.25
3 3150.0 4.32 0.25
3 4000.0 4.32 0.5
3 5000.0 4.32 0.5
3 6300.0 4.32 0.0
3 8000.0 4.32 -0.5
3 10000.0 4.32 0.25
3 12000.0 4.32 0.25
3 16000.0 4.32 -1.0
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.
