- Quality of the measurement data is medium.
- Origin of the data is BiAmp.
- Format of the data is a GLL file .
-
Sensitivity:
- Measured: 88.9 dB (avg. 300Hz-3kHz for 2.83V estimated at 1m).
- Measured: 68.9 dB computed at the measurement distance (10.0m) over the same frequency range.
- -3dB (resp. -6db) point v.s. reference is at 80.0Hz (resp. 71.0Hz).
- Reference level is normalised to -0.0dB computed over the frequency range [300.0Hz, 5000.0Hz].
- Frequency deviation is 3.7dB over the same frequency range.
- Tonality (Preference) Score
- Tonality (Preference) Score is 0.86
and would be 3.89 with a
perfect subwoofer.
- Details: NBD: ON 0.871, LW 0.81, SP 0.872, PIR 0.784; SM: SP0.536, PIR0.313; LFQ 0.846, LFX 73Hz
- Tonality (Preference) Score is 3.13
with an EQ and would be 5.99 with a
perfect subwoofer and the same EQ.
- Details: NBD: ON 0.733, LW 0.629, SP 0.757, PIR 0.621; SM: SP0.876, PIR0.859; LFQ 0.759, LFX 67Hz
- Tonality (Preference) Score is 0.86
and would be 3.89 with a
perfect subwoofer.
- Note: data computed at 2 meters..

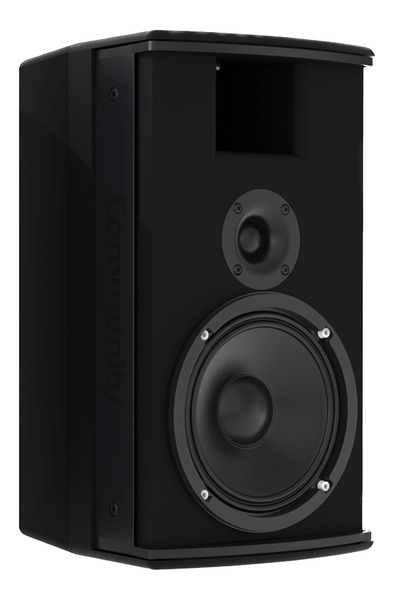

BiAmp Community IC6-1062 is a passive liveportable
| AutomaticEQ (IIR) | |||
| Set preamp gain to: -2.6dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 109.0 | 1.68 | 2.64 |
| PK | 424.0 | 3.0 | -4.32 |
| PK | 522.0 | 2.99 | 3.0 |
| PK | 1381.0 | 2.98 | 0.61 |
| PK | 2406.0 | 2.98 | 1.04 |
| PK | 4495.0 | 2.83 | -2.91 |
| PK | 8397.0 | 0.76 | -4.88 |
| Download | |||
This EQ optimise the Harman score and is a good start for far field listening like in your living room.
| Graphic EQ 15 bands | |||
| Set preamp gain to: -1.1dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 25.0 | 2.14 | 0.75 |
| PK | 40.0 | 2.14 | 0.75 |
| PK | 63.0 | 2.14 | 0.75 |
| PK | 100.0 | 2.14 | 0.5 |
| PK | 160.0 | 2.14 | 0.0 |
| PK | 250.0 | 2.14 | -0.25 |
| PK | 400.0 | 2.14 | -0.5 |
| PK | 630.0 | 2.14 | 0.25 |
| PK | 1000.0 | 2.14 | 0.25 |
| PK | 1600.0 | 2.14 | 0.0 |
| PK | 2500.0 | 2.14 | 0.0 |
| PK | 4000.0 | 2.14 | -0.75 |
| PK | 6300.0 | 2.14 | -0.5 |
| PK | 10000.0 | 2.14 | -0.5 |
| PK | 16000.0 | 2.14 | 1.0 |
| Download | |||
This EQ is designed for a 15 bands graphical EQ.
| Graphic EQ 31 bands | |||
| Set preamp gain to: -0.8dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 20.0 | 4.32 | 0.0 |
| PK | 25.0 | 4.32 | 0.5 |
| PK | 31.0 | 4.32 | 0.5 |
| PK | 40.0 | 4.32 | 0.5 |
| PK | 50.0 | 4.32 | 0.5 |
| PK | 63.0 | 4.32 | 0.5 |
| PK | 80.0 | 4.32 | 0.5 |
| PK | 100.0 | 4.32 | 0.25 |
| PK | 125.0 | 4.32 | 0.25 |
| PK | 160.0 | 4.32 | 0.0 |
| PK | 200.0 | 4.32 | -0.25 |
| PK | 250.0 | 4.32 | 0.0 |
| PK | 315.0 | 4.32 | -0.25 |
| PK | 400.0 | 4.32 | -0.5 |
| PK | 500.0 | 4.32 | 0.25 |
| PK | 630.0 | 4.32 | 0.25 |
| PK | 800.0 | 4.32 | -0.25 |
| PK | 1000.0 | 4.32 | 0.25 |
| PK | 1250.0 | 4.32 | 0.0 |
| PK | 1600.0 | 4.32 | 0.0 |
| PK | 2000.0 | 4.32 | 0.25 |
| PK | 2500.0 | 4.32 | 0.25 |
| PK | 3150.0 | 4.32 | -0.25 |
| PK | 4000.0 | 4.32 | -0.5 |
| PK | 5000.0 | 4.32 | -0.5 |
| PK | 6300.0 | 4.32 | -0.25 |
| PK | 8000.0 | 4.32 | -0.25 |
| PK | 10000.0 | 4.32 | -0.25 |
| PK | 12000.0 | 4.32 | 0.0 |
| PK | 16000.0 | 4.32 | 0.75 |
| PK | 20000.0 | 4.32 | 0.0 |
| Download | |||
