What we know about the measurement:

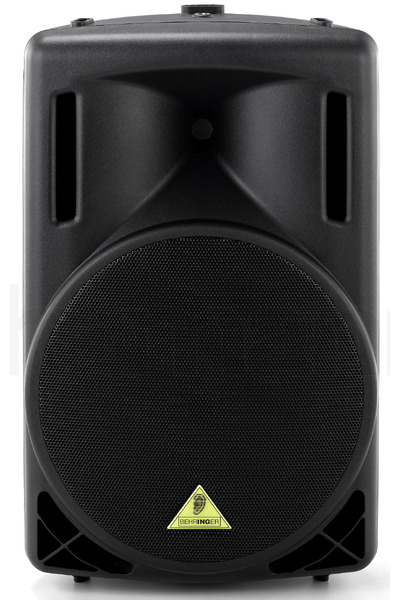

Behringer Eurolive B215XL is a passive liveportable that cost around 145 USD each.

  • Quality of the measurement data is high.
  • Origin of the data is ErinsAudioCorner.
  • Format of the data is generated by a Klippel NFS .
  • Sensitivity: 94.1dB (avg. 100Hz-1kHz for 2.83V estimated at 1m)
  • -3dB (resp. -6db) point v.s. reference is at 85.0Hz (resp. 77.6Hz).
  • Reference level is normalised to 0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 5.6dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-30.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-10.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 0.02 and would be 3.16 with a perfect subwoofer.
      • Details: NBD: ON 1.033, LW 0.909, SP 0.927, PIR 0.889; SM: SP0.623, PIR0.307; LFQ 2.57, LFX 77Hz
    • Tonality (Preference) Score is 2.77 with an EQ and would be 5.69 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.799, LW 0.683, SP 0.668, PIR 0.647; SM: SP0.892, PIR0.834; LFQ 2.57, LFX 68Hz
  • Link to Original review.
  • Vendor specifications:
    • Dispersion: 70° horizontal and 40° vertical.
    • Sensitivity 96 dB
    • Impedance 8 Ohm
    • Size
      • Width 440mm
      • Height 695mm
      • Depth 335 mm)
    • Weight 17.6 kg
Behringer Eurolive B215XL
AutomaticEQ (IIR)
Set preamp gain to: -3.5dB.
Type Freq Q Gain
3 69.0 0.68 3.0
3 105.0 3.0 -3.97
3 204.0 3.0 3.0
3 765.0 3.0 2.86
3 2324.0 3.0 -3.76
3 9648.0 1.48 -5.04
3 13652.0 2.81 -6.03
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Behringer Eurolive B215XL filters_auto_eq

AutomaticEQ

Behringer Eurolive B215XL filters_eq_full

Target v.s. EQ

Behringer Eurolive B215XL
Graphic EQ 15 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
3 25.0 2.14 0.5
3 40.0 2.14 0.5
3 63.0 2.14 0.5
3 100.0 2.14 0.0
3 160.0 2.14 0.5
3 250.0 2.14 0.25
3 400.0 2.14 0.25
3 630.0 2.14 0.5
3 1000.0 2.14 0.25
3 1600.0 2.14 0.25
3 2500.0 2.14 -0.25
3 4000.0 2.14 0.0
3 6300.0 2.14 0.0
3 10000.0 2.14 -0.5
3 16000.0 2.14 0.75
Download

These EQ is designed for a 15 bands graphical EQ.

Behringer Eurolive B215XL
Graphic EQ 31 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.25
3 31.0 4.32 0.25
3 40.0 4.32 0.25
3 50.0 4.32 0.25
3 63.0 4.32 0.25
3 80.0 4.32 0.25
3 100.0 4.32 -0.25
3 125.0 4.32 0.0
3 160.0 4.32 0.25
3 200.0 4.32 0.5
3 250.0 4.32 -0.25
3 315.0 4.32 -0.25
3 400.0 4.32 0.25
3 500.0 4.32 0.0
3 630.0 4.32 0.25
3 800.0 4.32 0.5
3 1000.0 4.32 0.0
3 1250.0 4.32 0.25
3 1600.0 4.32 -0.25
3 2000.0 4.32 -0.25
3 2500.0 4.32 -0.25
3 3150.0 4.32 0.0
3 4000.0 4.32 0.0
3 5000.0 4.32 -0.25
3 6300.0 4.32 0.0
3 8000.0 4.32 -0.25
3 10000.0 4.32 -0.5
3 12000.0 4.32 -0.25
3 16000.0 4.32 0.75
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

Behringer Eurolive B215XL: comparison between EQs
Behringer Eurolive B215XL

Comparison betweens various EQs

Behringer Eurolive B215XL

Improvements made by EQ
CEA2034
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
CEA2034
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
