What we know about the measurement:

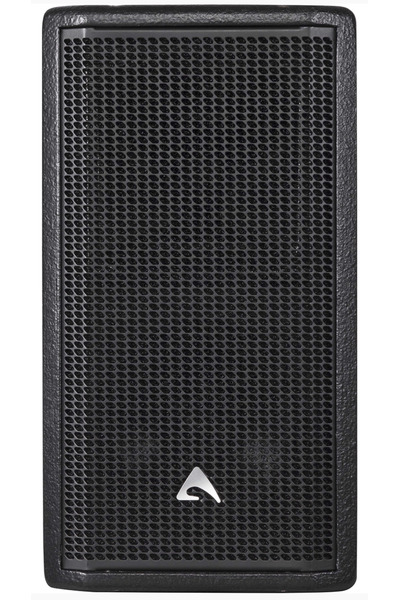

Axiom ED60P is a passive liveportable that cost around 815 USD each.

  • Quality of the measurement data is high.
  • Origin of the data is Axiom.
  • Format of the data is a GLL file .
  • Sensitivity:
    • Sensitivity: 91.7dB (avg. 100Hz-1kHz for 2.83V estimated at 1m).
    • Sensitivity: 71.7dB computed at the measurement distance (10.0m) over the same frequency range.
  • -3dB (resp. -6db) point v.s. reference is at 40.0Hz (resp. 34.5Hz).
  • Reference level is normalised to 0.3dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 4.6dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-40.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-10.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 3.75 and would be 5.32 with a perfect subwoofer.
      • Details: NBD: ON 0.793, LW 0.6, SP 0.63, PIR 0.619; SM: SP0.832, PIR0.633; LFQ 1.785, LFX 33Hz
    • Tonality (Preference) Score is 5.63 with an EQ and would be 7.14 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.552, LW 0.373, SP 0.461, PIR 0.38; SM: SP0.937, PIR0.85; LFQ 1.785, LFX 32Hz
  • Note: data computed at 2 meters..
Axiom ED60P
AutomaticEQ (IIR)
Set preamp gain to: -5.1dB.
Type Freq Q Gain
5 40.0 0.92 2.84
3 121.0 2.89 2.98
3 153.0 1.54 -2.88
3 478.0 3.0 -2.34
3 1348.0 2.06 2.75
3 1594.0 2.96 2.96
3 4202.0 2.26 -2.47
3 7173.0 2.95 1.98
5 10020.0 0.7 0.29
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Axiom ED60P filters_auto_eq

AutomaticEQ

Axiom ED60P filters_eq_full

Target v.s. EQ

Axiom ED60P
Graphic EQ 15 bands
Set preamp gain to: -1.2dB.
Type Freq Q Gain
3 25.0 2.14 0.5
3 40.0 2.14 0.5
3 63.0 2.14 0.0
3 100.0 2.14 0.25
3 160.0 2.14 -0.25
3 250.0 2.14 0.0
3 400.0 2.14 0.0
3 630.0 2.14 0.0
3 1000.0 2.14 0.5
3 1600.0 2.14 1.0
3 2500.0 2.14 0.5
3 4000.0 2.14 0.0
3 6300.0 2.14 0.5
3 10000.0 2.14 0.25
3 16000.0 2.14 0.75
Download

These EQ is designed for a 15 bands graphical EQ.

Axiom ED60P
Graphic EQ 31 bands
Set preamp gain to: -1.3dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.5
3 31.0 4.32 0.5
3 40.0 4.32 0.5
3 50.0 4.32 0.0
3 63.0 4.32 0.0
3 80.0 4.32 0.0
3 100.0 4.32 0.25
3 125.0 4.32 0.25
3 160.0 4.32 -0.25
3 200.0 4.32 0.0
3 250.0 4.32 0.0
3 315.0 4.32 0.25
3 400.0 4.32 0.0
3 500.0 4.32 -0.25
3 630.0 4.32 0.0
3 800.0 4.32 0.25
3 1000.0 4.32 0.5
3 1250.0 4.32 0.75
3 1600.0 4.32 1.0
3 2000.0 4.32 0.5
3 2500.0 4.32 0.5
3 3150.0 4.32 0.25
3 4000.0 4.32 0.0
3 5000.0 4.32 0.25
3 6300.0 4.32 0.5
3 8000.0 4.32 0.5
3 10000.0 4.32 0.25
3 12000.0 4.32 0.25
3 16000.0 4.32 0.75
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

Axiom ED60P: comparison between EQs
Axiom ED60P

Comparison betweens various EQs

Axiom ED60P

Improvements made by EQ
CEA2034
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
CEA2034
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
