What we know about the measurement:

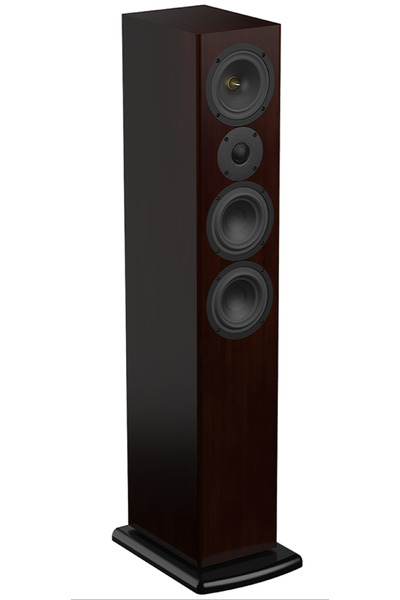

Ascend Acoustics Sierra Titan Tower is a passive floorstanders that cost around 2998 USD for a pair.

  • Quality of the measurement data is high.
  • Origin of the data is Ascend Acoustics.
  • Format of the data is a set of 36 horizontal and 36 vertical measurements .
  • Sensitivity: 86.2dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 58.6Hz (resp. 46.9Hz).
  • Reference level is normalised to -0.2dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 2.5dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-60.0°, 60.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 6.17 and would be 8.12 with a perfect subwoofer.
      • Details: NBD: ON 0.355, LW 0.302, SP 0.297, PIR 0.267; SM: SP0.945, PIR0.915; LFQ 0.722, LFX 41Hz
  • Link to original Review: vendor review. .
  • Vendor specifications:
    • Sensitivity 91 dB
    • Impedance 8 Ohm
    • Size
      • Width 190mm
      • Height 1092mm
      • Depth 267mm
    • Weight 20.4kg
CEA2034
CEA2034 Normalized
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
;
