What we know about the measurement:

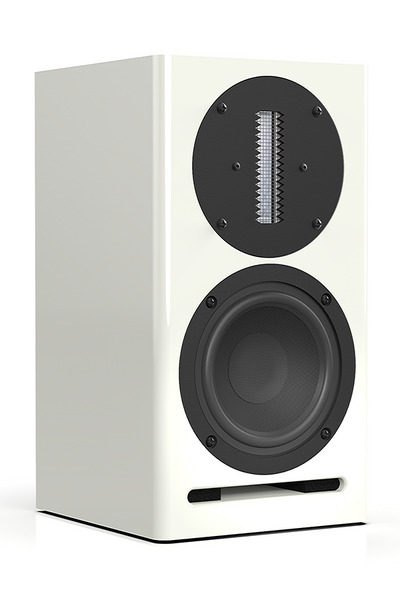

Ascend Acoustics Luna V2 Mini-Monitor Ribbon is a passive bookshelves that cost around 1248 USD for a pair.
- Quality of the measurement data is high.
- Origin of the data is Ascend Acoustics.
- Format of the data is a set of 36 horizontal and 36 vertical measurements .
- Sensitivity: 80.0dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
- -3dB (resp. -6db) point v.s. reference is at 74.7Hz (resp. 58.6Hz).
- Reference level is normalised to -0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
- Frequency deviation is 2.3dB over the same frequency range.
- Directivity
- Horizontal directivity is (-70.0°, 80.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
- Vertical directivity is (-20.0°, 10.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
- Tonality (Preference) Score
- Tonality (Preference) Score is 4.99
and would be 7.61 with a
perfect subwoofer.
- Details: NBD: ON 0.447, LW 0.351, SP 0.386, PIR 0.341; SM: SP0.933, PIR0.89; LFQ 0.689, LFX 58Hz
- Tonality (Preference) Score is 6.29
with an EQ and would be 8.48 with a
perfect subwoofer and the same EQ.
- Details: NBD: ON 0.309, LW 0.204, SP 0.26, PIR 0.203; SM: SP0.949, PIR0.94; LFQ 0.617, LFX 46Hz
- Tonality (Preference) Score is 4.99
and would be 7.61 with a
perfect subwoofer.
-
Vendor specifications:
- Sensitivity 82.0 dB
- Impedance 8 Ohm
- Size
- Width 146mm
- Height 270mm
- Depth 152mm
- Weight 3.75kg
